Note: Calibration is to adjust MU and RU gain to make sure system gain is normal, if the band have been
calibrated, users can click to skip the process; if the band never been calibrated, users click
in the step of Calibration, software can still procede to the next step of MU and RU setup, but the
system gain will be a little deviation with normal valuer, so the final output power will be not same with the
target DL output power.
NOTE: Make sure all the ANT ports of RUs are connected with dummy load or antenna system
before proceeding to step 6.
Step 6: Select Calibration, shown as Figure 70, set the right synchronous carrier center frequency point
for 2500 TDD in the poped out window, minimum scale is 100KHz, then select "Automatic Calibration" or
"Manual Calibration".

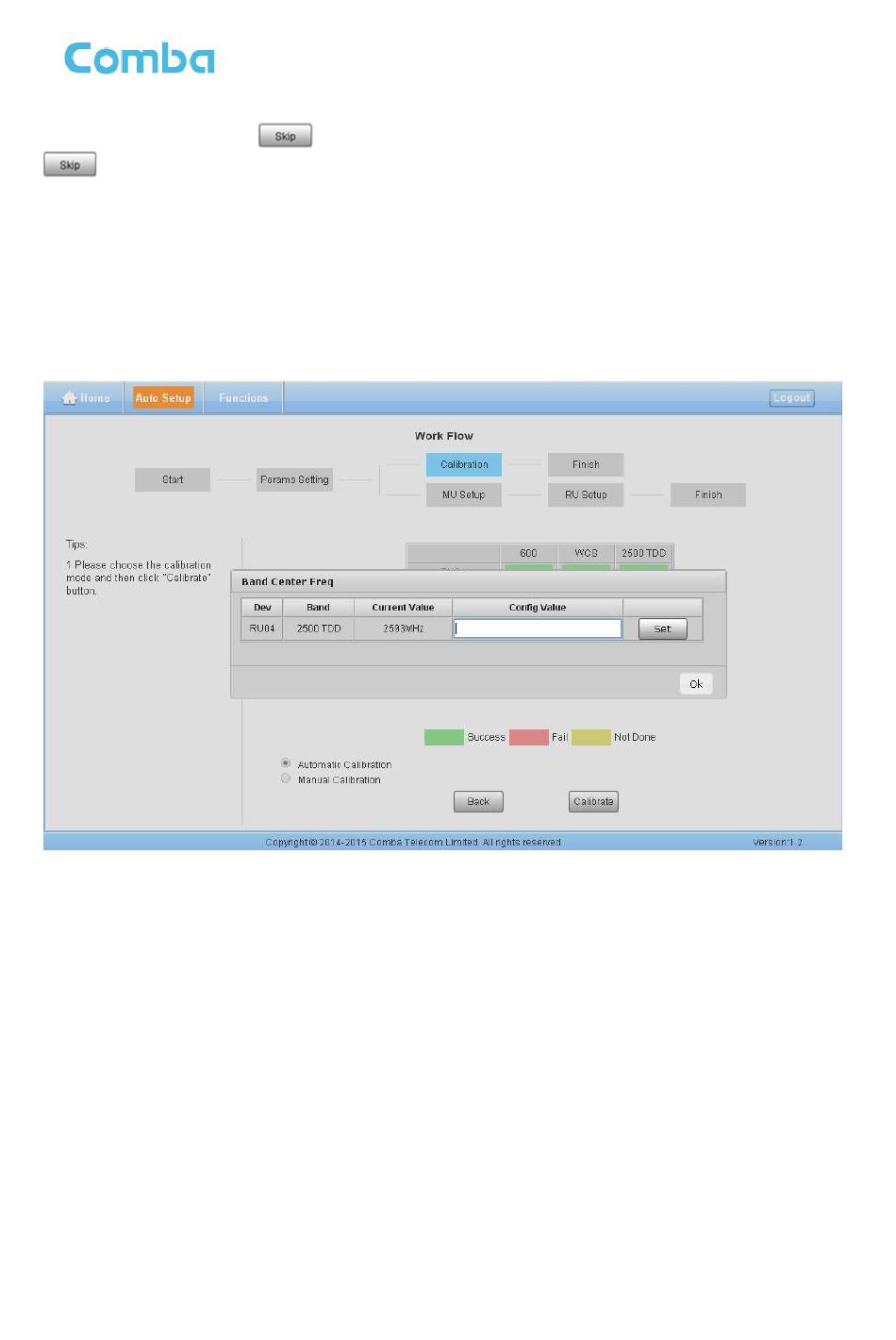

Figure 69: Calibration – 2500 TDD Band Certer Freq
