Fiber optic cables require proper handling. Do not stretch, puncture, or crush the fiber cable(s) with

staples, heavy equipment, doors, etc.
Always maintain the minimum bending radius specified by the cable manufacturer. The minimum

bend radius is usually 10 times the cable's outer diameter. In the case of single optical fiber that is not
in a cable, the minimum bending radius to be observed is 3cm. (1.2")

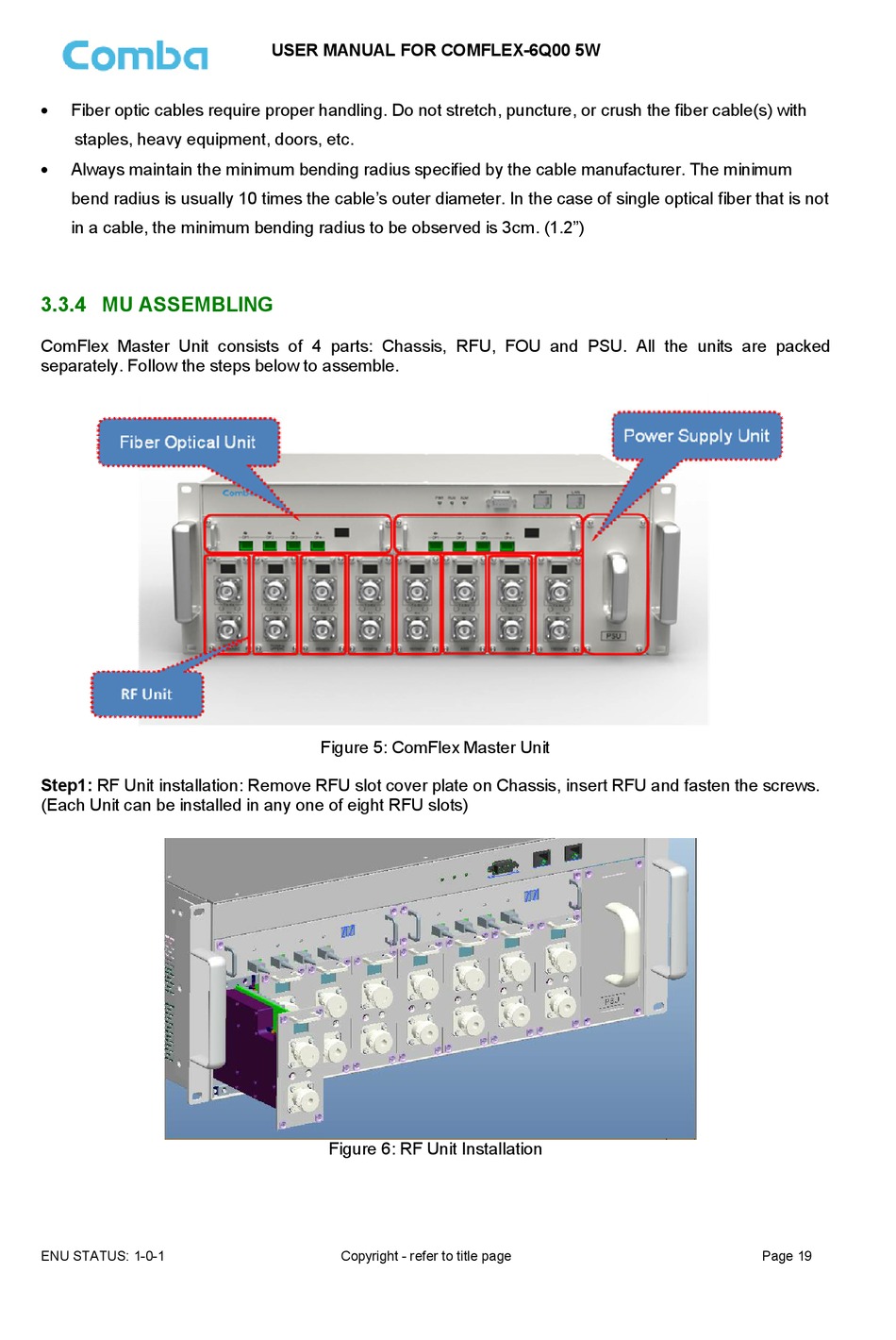

3.3.4 MU ASSEMBLING
ComFlex Master Unit consists of 4 parts: Chassis, RFU, FOU and PSU. All the units are packed
separately. Follow the steps below to assemble.
Step1: RF Unit installation: Remove RFU slot cover plate on Chassis, insert RFU and fasten the screws.
(Each Unit can be installed in any one of eight RFU slots)
ENU STATUS: 1-0-1
USER MANUAL FOR COMFLEX-6Q00 5W
Figure 5: ComFlex Master Unit
Figure 6: RF Unit Installation
