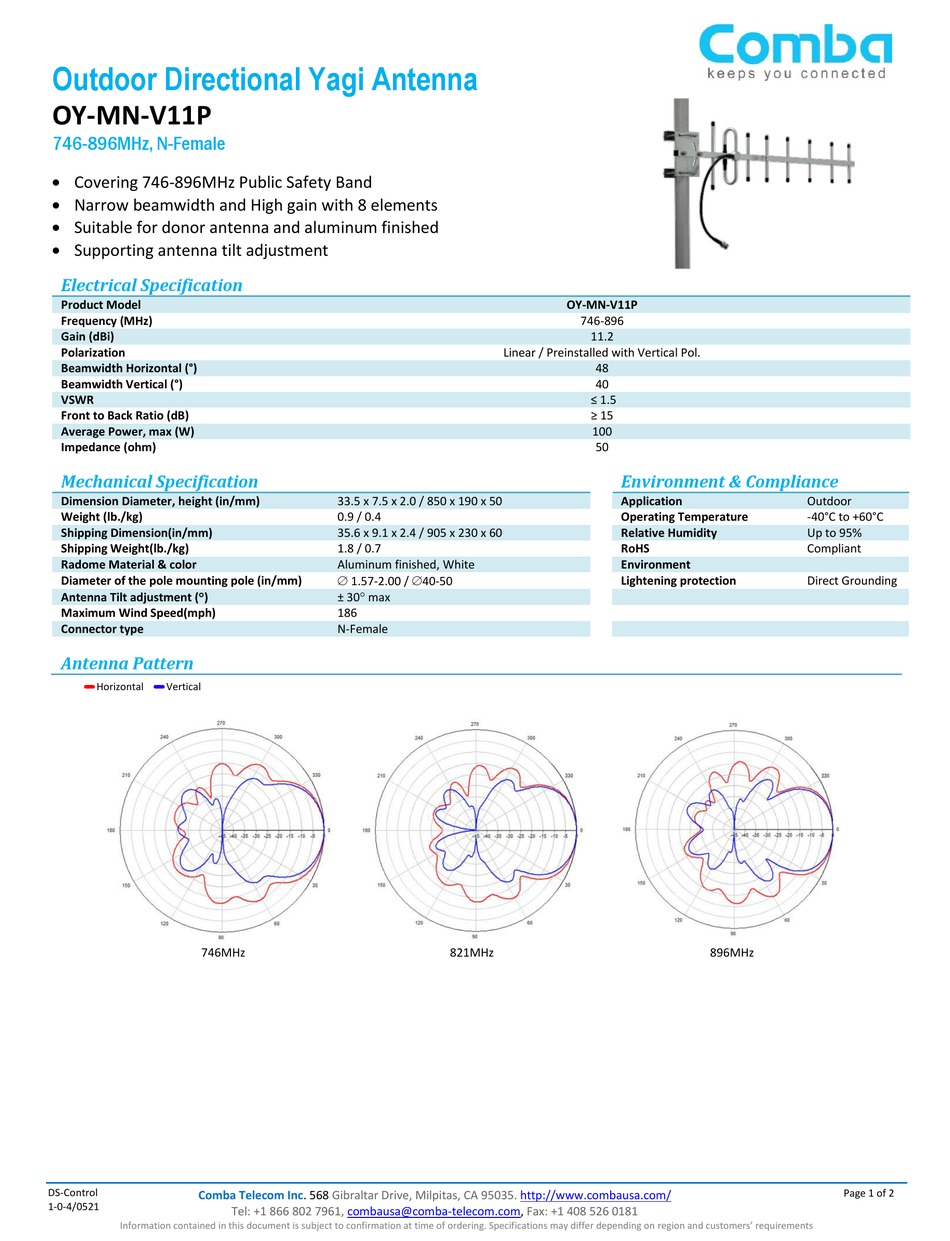

COMBA OY-MN-V11P Quick Start Manual

Outdoor Directional Yagi Antenna
OY-MN-V11P
746-896MHz, N-Female
• Covering 746-896MHz Public Safety Band
• Narrow beamwidth and High gain with 8 elements
• Suitable for donor antenna and aluminum finished
• Supporting antenna tilt adjustment
Electrical Specification
Product Model
Frequency (MHz)
Gain (dBi)
Polarization
Beamwidth Horizontal (°)
Beamwidth Vertical (°)
VSWR
Front to Back Ratio (dB)
Average Power, max (W)
Impedance (ohm)
Mechanical Specification
Dimension Diameter, height (in/mm)
Weight (lb./kg)
Shipping Dimension(in/mm)
Shipping Weight(lb./kg)
Radome Material & color
Diameter of the pole mounting pole (in/mm)
Antenna Tilt adjustment ()
Maximum Wind Speed(mph)
Connector type
Antenna Pattern
Horizontal Vertical
746MHz
DS-Control
Comba Telecom
1-0-4/0521
Information contained in this document is subject to confirmation at time of ordering. Specifications may differ depending on region and customers' requirements
33.5 x 7.5 x 2.0 / 850 x 190 x 50
0.9 / 0.4
35.6 x 9.1 x 2.4 / 905 x 230 x 60
1.8 / 0.7
Aluminum finished, White
 1.57-2.00 / 40-50
± 30 max
186
N-Female
Inc. 568 Gibraltar Drive, Milpitas, CA 95035.
Tel: +1 866 802 7961, combausa@comba-telecom.com,
OY-MN-V11P
746-896
11.2
Linear / Preinstalled with Vertical Pol.
48
40
≤ 1.5
≥ 15
100
50
Environment & Compliance
Application
Operating Temperature
Relative Humidity
RoHS
Environment
Lightening protection
821MHz
http://www.combausa.com/
Fax: +1 408 526 0181
Outdoor
-40°C to +60°C
Up to 95%
Compliant
Direct Grounding
896MHz
