USER MANUAL FOR COMFLEX-6Q00 5W

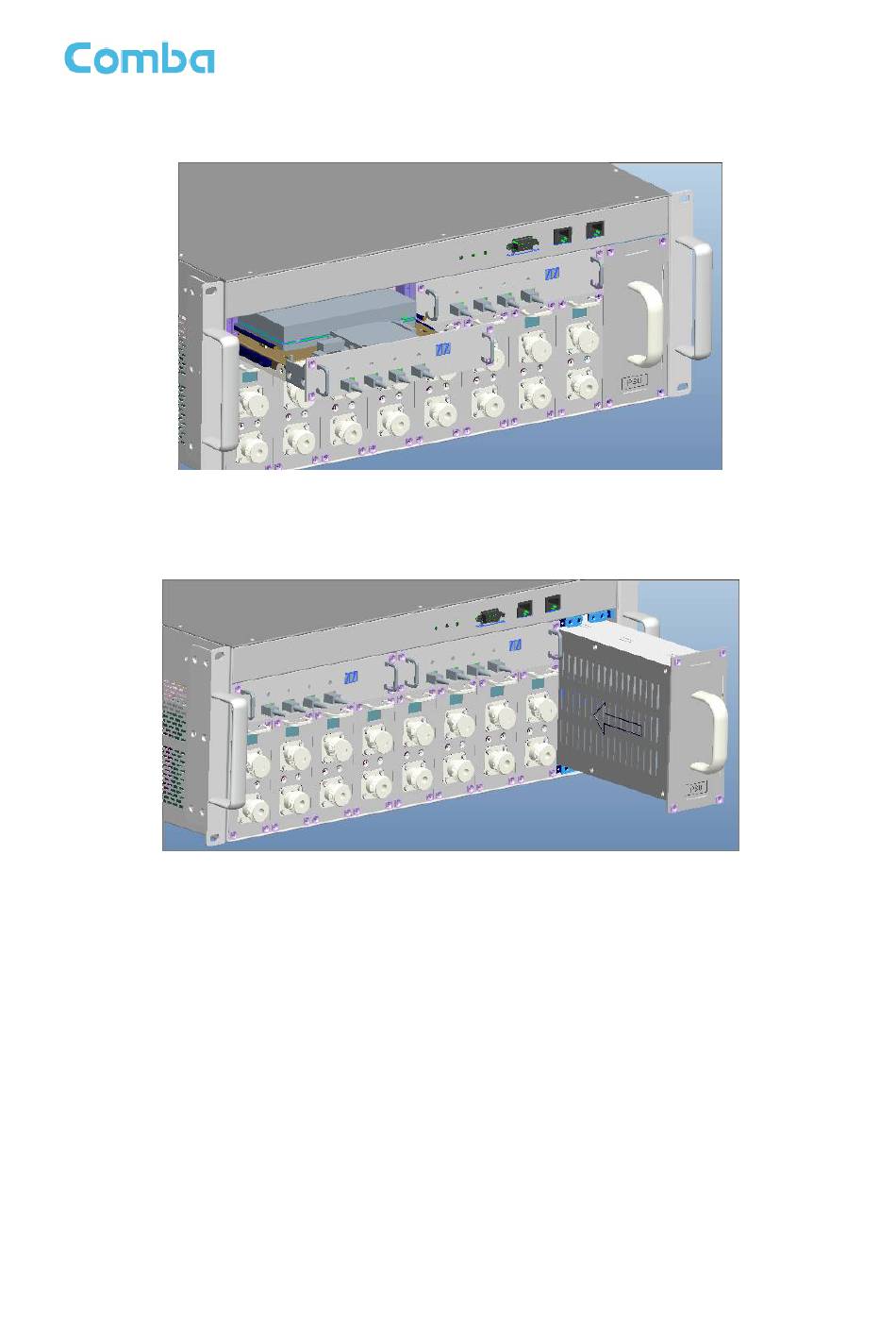

Step2: FOU installation: Remove FOU slot cover plate on Chassis, insert FOU and fasten the screws.
(Each Unit can be installed in either one of two FOU slots)
Figure 7: FOU Installation
Step3: PSU installation: Remove PSU slot cover plate on the right side of Chassis, insert PSU and fasten
the screws.
Figure 8: PSU Installation
ENU STATUS: 1-0-1
Copyright - refer to title page
Page 20
