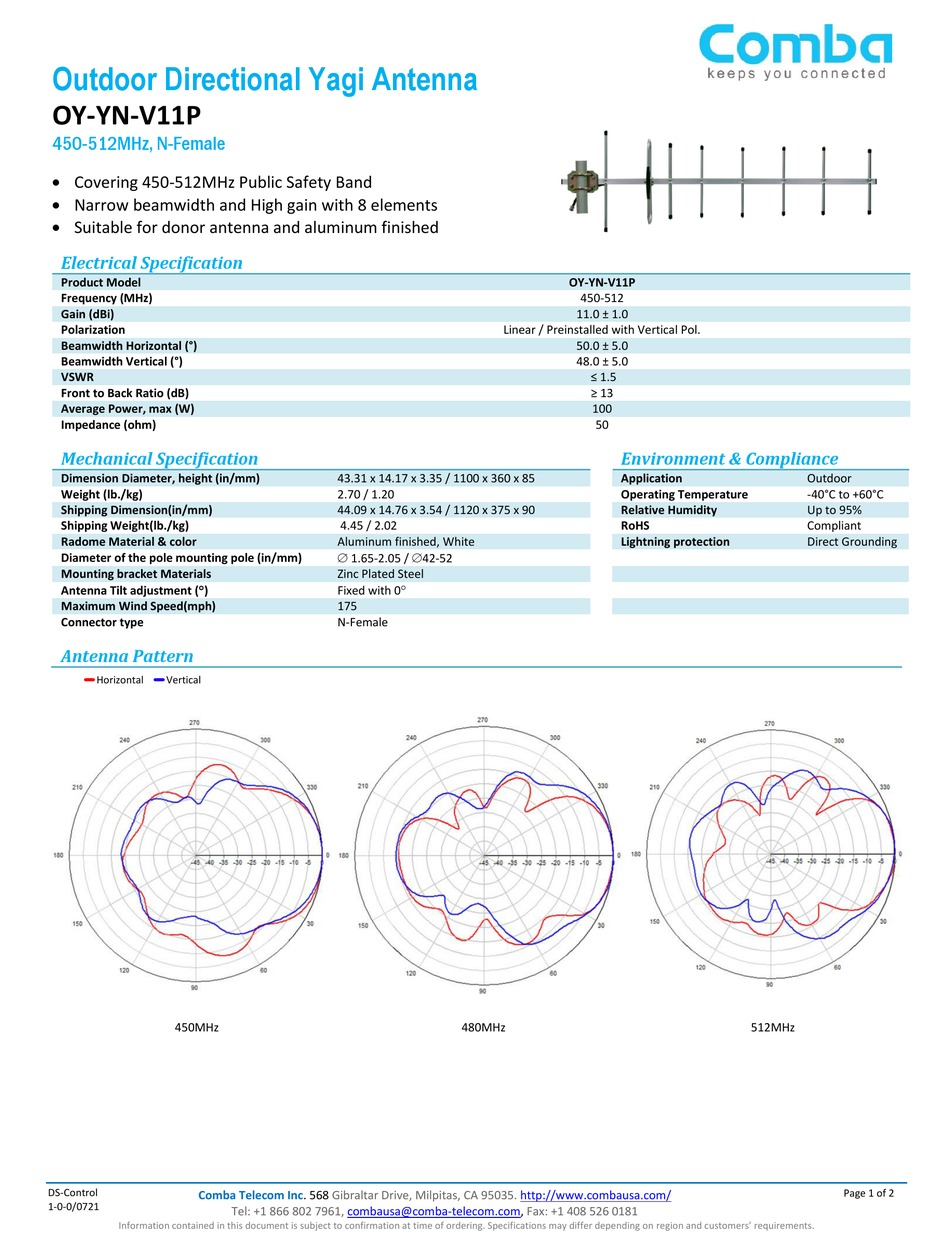

COMBA OY-YN-V11P Installation Instructions

Outdoor Directional Yagi Antenna
OY-YN-V11P
450-512MHz, N-Female
• Covering 450-512MHz Public Safety Band
• Narrow beamwidth and High gain with 8 elements
• Suitable for donor antenna and aluminum finished
Electrical Specification
Product Model
Frequency (MHz)
Gain (dBi)
Polarization
Beamwidth Horizontal (°)
Beamwidth Vertical (°)
VSWR
Front to Back Ratio (dB)
Average Power, max (W)
Impedance (ohm)
Mechanical Specification
Dimension Diameter, height (in/mm)
Weight (lb./kg)
Shipping Dimension(in/mm)
Shipping Weight(lb./kg)
Radome Material & color
Diameter of the pole mounting pole (in/mm)
Mounting bracket Materials
Antenna Tilt adjustment ()
Maximum Wind Speed(mph)
Connector type
Antenna Pattern
Horizontal Vertical
450MHz
DS-Control
Comba Telecom
1-0-0/0721
Information contained in this document is subject to confirmation at time of ordering. Specifications may differ depending on region and customers' requirements.
43.31 x 14.17 x 3.35 / 1100 x 360 x 85
2.70 / 1.20
44.09 x 14.76 x 3.54 / 1120 x 375 x 90
4.45 / 2.02
Aluminum finished, White
 1.65-2.05 / 42-52
Zinc Plated Steel
Fixed with 0
175
N-Female
Inc. 568 Gibraltar Drive, Milpitas, CA 95035.
Tel: +1 866 802 7961, combausa@comba-telecom.com,
OY-YN-V11P
450-512
11.0 ± 1.0
Linear / Preinstalled with Vertical Pol.
50.0 ± 5.0
48.0 ± 5.0
≤ 1.5
≥ 13
100
50
Environment & Compliance
Application
Operating Temperature
Relative Humidity
RoHS
Lightning protection
480MHz
http://www.combausa.com/
Fax: +1 408 526 0181
Outdoor
-40°C to +60°C
Up to 95%
Compliant
Direct Grounding
512MHz
Page 1 of 2
