Installer manual
NIBE F1145
Ground source heat pump
IHB GB 1643-2
331509

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F1145-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Nibe F1145-5

Summary of Contents for Nibe F1145-5

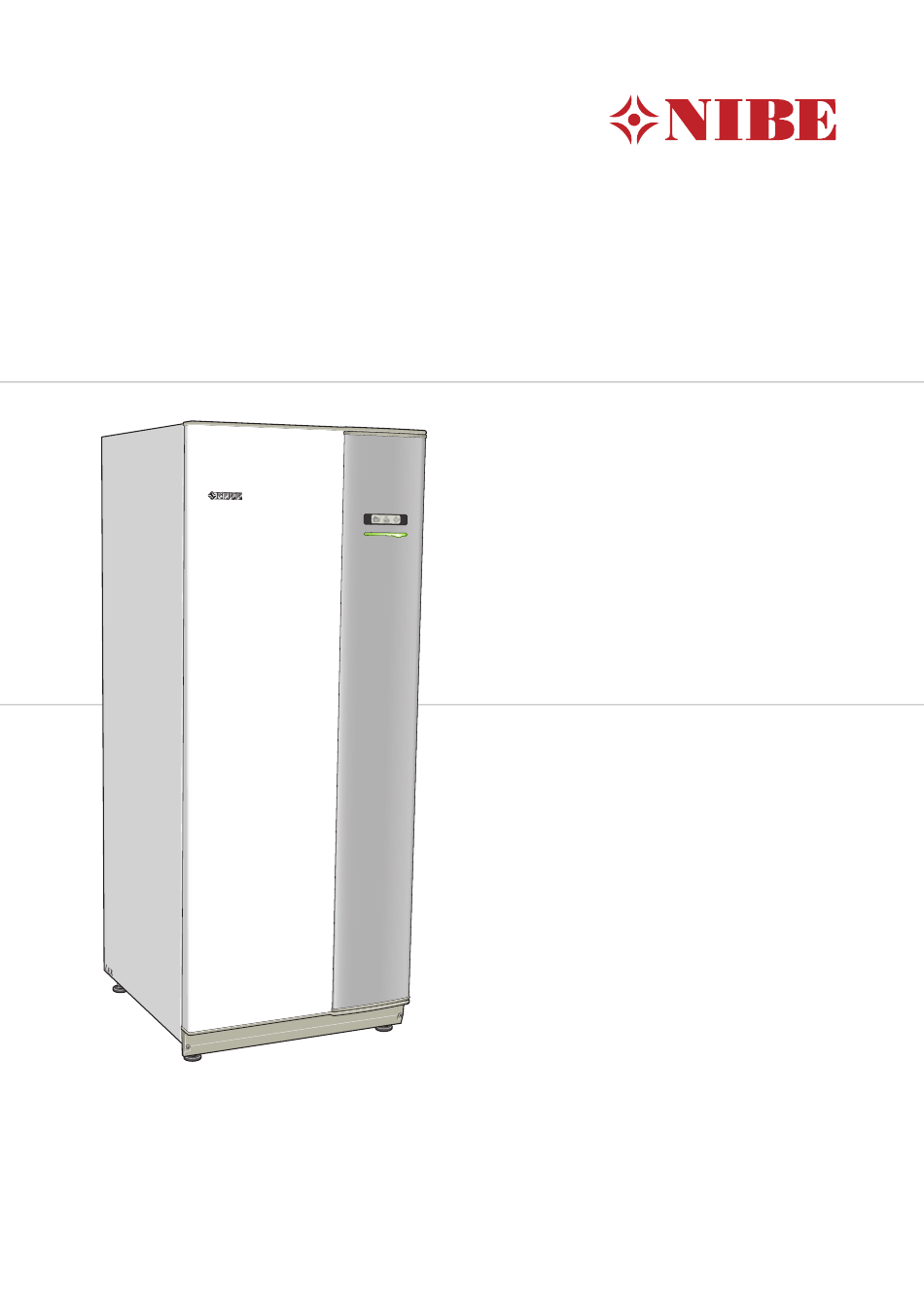

  • Page 1 Installer manual NIBE F1145 Ground source heat pump IHB GB 1643-2 331509...
  • Page 2 Quick guide Navigation Ok button (confirm/select) Back button (back/undo/exit) Control knob (move/increase/reduce) A detailed explanation of the button functions can be found on page 38. How to scroll through menus and make different settings is described on page 41. Set the indoor climate The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode in the main menu.

  • Page 3: Table Of Contents

    7 Control - Introduction Display unit Menu system 8 Control - Menus Menu 1 - INDOOR CLIMATE Menu 2 - HOT WATER Menu 3 - INFO Menu 4 - HEAT PUMP Menu 5 - SERVICE NIBE F1145 Table of Contents |...

  • Page 4: Important Information Safety Information

    This installer manual must be left with the customer. Marking The CE marking means that NIBE ensures that the product meets all regulations that are placed on it based on relevant EU directives. The CE mark is obligatory for most products sold in the EU, regardless where they are made.
  • Page 5 Shut off valves Circulation pump setting Electricity (page 19) Connections Main voltage Phase voltage Fuses heat pump Fuses property Outside sensor Room sensor Current sensor Safety breaker Earth circuit-breaker Setting of emergency mode thermostat NIBE F1145 Chapter 1 | Important information...

  • Page 6: Delivery And Handling

    Wherever the unit is located, walls to sound sensitive ■ rooms should be fitted with sound insulation. Route pipes so they are not fixed to an internal wall ■ that backs on to a bedroom or living room. Chapter 2 | Delivery and handling NIBE F1145...

  • Page 7: Supplied Components

    3. Move the hatch outwards and backwards. sensor 4. Assembly takes place in the reverse order. Aluminium tape Location The kit of supplied items is placed in packaging on top of the heat pump. NIBE F1145 Chapter 2 | Delivery and handling...

  • Page 8: The Heat Pump Design

    3 The heat pump design General View from behind W130 F1145 QN10 AA4-XJ4 AA4-XJ3 QM34 QM31 QM32 QM33 Chapter 3 | The heat pump design NIBE F1145...
  • Page 9 Electrical components Display unit AA4-XJ3 USB socket AA4-XJ4 Service outlet (No function) Immersion heater Switch W130 Network cable for NIBE Uplink Miscellaneous Rating plate Type plate, cooling section Cable gland, incoming electricity Cable gland Cable gland, rear side, sensor Designations in component locations according to standard IEC 81346-1 and 81346-2.

  • Page 10: Distribution Boxes

    Temperature limiter/Emergency mode thermostat * 1x230 V, 3x230 V 6-10 kW, 3x400V 5 kW has auxiliary switch for motor cut-out. Designations in component locations according to standard IEC 81346-1 and 81346-2. Chapter 3 | The heat pump design NIBE F1145...
  • Page 11 X302 Terminal block * 1x230 V, 3x230 V 6-10 kW, 3x400V 5 kW has auxiliary switch for motor cut-out. Designations in component locations according to standard IEC 81346-1 and 81346-2. X302 NIBE F1145 Chapter 3 | The heat pump design...

  • Page 12: Cooling Section

    3x230V 6 – 10 kW 3x400V 6 – 10 kW 10 - 17 kW BT12 BT10 BT17 GQ10 BT14 AA100 XL21 BT15 BT11 XL20 EB10 Kyldel 6,8,10 kW Växlare är tunnare i Light versioner Chapter 3 | The heat pump design NIBE F1145...
  • Page 13 Evaporator Condenser EB10 XL20 GQ10 Compressor Kyldel 15, 17 kW Drying filter Expansion valve Växlare är tunnare i Light versioner Designations in component locations according to standard IEC 81346-1 and 81346-2. NIBE F1145 Chapter 3 | The heat pump design...

  • Page 14: Pipe Connections General

    Connection, brine out XL 9 Connection, hot water heater Safety valve Temperature sensor Expansion vessel Pressure gauge Circulation pump Particle filter Auxiliary relay Flow meter (only heat pumps with energy meter) Compressor Heat exchanger Chapter 4 | Pipe connections NIBE F1145...

  • Page 15: Dimensions And Pipe Connections

    2. Angle the pipe in the desired direction. 3. If necessary, cut the pipe to the desired length. Connecting the brine side Insulate all indoor brine pipes against condensation. ■ * Can be angled for side connection. NIBE F1145 Chapter 4 | Pipe connections...

  • Page 16: Heating Medium Side

    When connecting to a system with thermostats on all ■ radiators, a relief valve must be fitted, or some of the thermostats must be removed to ensure sufficient flow. Chapter 4 | Pipe connections NIBE F1145...

  • Page 17: Docking Alternatives

    The brine system must be supplied with a pressure ■ pump output, the radiator system can be supplemented expansion vessel (CM3). If there is a level vessel (CM2) with a buffer vessel, for example NIBE UKV. this should be replaced. Exhaust Extract air Avluft Frånluft...
  • Page 18 NIBE The POOL 40 accessory is required for this connection. UKV.

  • Page 19: Electrical Connections

    Accessibility, electrical connection The plastic cap of the electrical boxes is opened using a screwdriver. NOTE The door to the input card circuit board is opened using a Torx 20 screwdriver. NIBE F1145 Chapter 5 | Electrical connections...
  • Page 20 3. Pull off the cover. 2. Pull off the cover. Cable lock Removing the hatch, electrical cabinet Use a suitable tool to release/lock cables in the heat pump terminal blocks. 1. Disconnect the contacts. Chapter 5 | Electrical connections NIBE F1145...

  • Page 21: Connections

    3x230V and 3x400V. Connection 3x400V Connection 3x230V AA1-X1 AA1-X1 L1 1 L2 L3 1 L2 2 L3 AA1-X8 AA1-X2 Connection 1x230V L1 1 L2 L3 AA1-X1 AA1-X9 0 L1 1 AA1-X11 1x230V+N+PE operating voltage 1x230V+N+PE NIBE F1145 Chapter 5 | Electrical connections...
  • Page 22 A temperature sensor for hot water top (BT7) can be connected to F1145 via soft inputs for showing the water temperature at the top of the tank. See page 27 for connecting the sensor. Chapter 5 | Electrical connections NIBE F1145...

  • Page 23: Settings

    – F1145 ProduktNamn – – Externt External – – – AA3-X22/23 – 13.0 13.0 Activate the energy meter(s) in menu 5.2.4 and then set the desired value (energy per pulse) in menu 5.3.21. NIBE F1145 Chapter 5 | Electrical connections...
  • Page 24 The load monitor is not connected. ■ NOTE The switch (SF1) must not be moved to " " or " " until F1145 has been filled with water. Components in the product can be damaged. Chapter 5 | Electrical connections NIBE F1145...

  • Page 25: Optional Connections

    Connect the communications cables as illustrated in series to the terminal block X4:15 (A), X4:14 (B) and X4:13 (GND) on the input card (AA3). Use cable type LiYY, EKKX or similar. NIBE F1145 Chapter 5 | Electrical connections...
  • Page 26 F1145 Externt External AA3-X4 AA3-X6 NIBE Uplink™ Connect the network connected cable (straight, Cat.5e UTP) with RJ45-contact (male) to RJ45 contact (female) on the rear of the heat pump. The example above uses the inputs AUX1 (X6:9-10) andAUX2 (X6:11-12) on the input circuit board (AA3).
  • Page 27 5.4, see page 54. NOTE Closed switch means that tariff blocking is activated. +Adjust must first be selected in menu 5.4 ”soft inputs/outputs”. NOTE When tariff blocking is activated, the min. supply line does not apply. NIBE F1145 Chapter 5 | Electrical connections...
  • Page 28 See the accessory’s installer handbook for installation NOTE instructions. In systems with both under floor heating and radiators, NIBE ECS 40/41 should be used for Contact for activation of fan speed optimum operation. Caution Contact for external blocking of heating The external contact function functions only if the accessory FLM is installed and activated.

  • Page 29: Connecting Accessories

    X7 at the same ation instructions provided for the respective accessory. time that the buzzer alarm is activated (see page See information at www.nibe.eu for the list of the ac- 65). cessories that can be used with F1145.
  • Page 30 Because there can be different connections for accessor- ies with circuit boards AA9, you should always read the instructions in the manual for the accessory that you are going to install. Accessories F1145 AA3-X4 AA3-X4 AA9-X1 Chapter 5 | Electrical connections NIBE F1145...

  • Page 31: Commissioning And Adjusting

    The mixture should be protected against freezing down to about -15 °C. The brine is filled by connecting a filling pump. 1. Check the brine system for leakage. NIBE F1145 Chapter 6 | Commissioning and adjusting...

  • Page 32: Start Guide

    As long as the start guide is active, no function in the installation will start automatically. The guide will appear at each installation restart until it is deselected on the last page. Chapter 6 | Commissioning and adjusting NIBE F1145...

  • Page 33: Post Adjustment And Venting

    Set the speed of the brine pump in menu 5.1.9, see page P100% P90% Read off what speed the brine pump should have during P80% manual operation from the diagram below. P70% NIBE F1145 Chapter 6 | Commissioning and adjusting P60% Flöde 100%...
  • Page 34 The flow must have a suitable temperature difference 0,10 0,20 0,30 0,40 0,50 0,60 for the operating case (heating operation: 5 - 10 °C, hot Tillgängligt tryck water generation: 5 - 10 °C, pool heating: approx. 15 °C) Eleffekt Chapter 6 | Commissioning and adjusting NIBE F1145...

  • Page 35: Setting The Cooling/Heating Curve

    1.9.1.1 may be necessary. If gurgling sounds can be heard from system the heat pump or climate system, the entire system will flow temperature °C require additional venting. outdoor temp. °C NIBE F1145 Chapter 6 | Commissioning and adjusting...
  • Page 36 2. Press the OK button. 3. Follow the grey line up to the curve and out to the left to read off the value for the supply temperature at the selected outdoor temperature. Chapter 6 | Commissioning and adjusting NIBE F1145...
  • Page 37 If it is warm outdoors and the room temperature is too low, increase the curve offset by one incre- ment. If it is warm outdoors and the room temperature is too high, lower the curve offset by one incre- ment. NIBE F1145 Chapter 6 | Commissioning and adjusting...

  • Page 38: Control - Introduction

    The control knob can be turned to the right or left. You can: ■ scroll in menus and between options. ■ increase and decrease the values. ■ change page in multiple page instructions (for example help text and service info). Chapter 7 | Control - Introduction NIBE F1145...

  • Page 39: Menu System

    Display of temperature and other operating information and access to the alarm log. See information in the help menu or user manual. This menu is also set in the slave heat pump's limited menu system. NIBE F1145 Chapter 7 | Control - Introduction...
  • Page 40 NIBE Uplink. This symbol indicates the actual speed of the fan if the speed has changed from the normal setting. Accessory NIBE FLM is needed. This symbol indicates whether solar heating is active. Accessory needed. This symbol indicates whether pool heating is active.
  • Page 41 To select another option: 1. Mark the applicable option. One of the options is pre-selected (white). 2. Press the OK button to confirm the selected op- tion. The selected option has a green tick. NIBE F1145 Chapter 7 | Control - Introduction...
  • Page 42 (at the page number) has been marked. 2. Press the OK button to skip between the steps in the start guide. If the start guide is left on this page it closes automatically in 60 min Chapter 7 | Control - Introduction NIBE F1145...

  • Page 43: Control - Menus

    3.3 - add. heat info ** 3.4 - alarm log ** 3.5 - indoor temp. log * Accessories are needed. ** This menu is also set in the slave heat pump's limited menu system. NIBE F1145 Chapter 8 | Control - Menus...

  • Page 44: Menu 4 - Heat Pump

    4 - HEAT PUMP 4.1 - plus functions 4.1.1 - pool * 4.1.2 - pool 2 * 4.1.3 - internet 4.1.3.1 - NIBE Uplink 4.1.3.8 - tcp/ip settings 4.1.3.9 - proxy settings 4.1.4 - sms * 4.1.5 - SG Ready 4.1.6 - smart price adaption™...

  • Page 45: Menu 5 - Service

    Go to the main menu and hold the Back button in for 7 seconds to access the Service menu. ** This menu is also set in the slave heat pump's limited menu system. NIBE F1145 Chapter 8 | Control - Menus...
  • Page 46 Setting range stop temp. lux: 5 – 70 °C Default value: 10 °C Factory setting stop temp. lux: 53 °C max diff addition Setting range: 1 – 24 °C Default value: 7 °C Chapter 8 | Control - Menus NIBE F1145...
  • Page 47 Menu 5.1.7 - br pmp al set. min. brine out Setting range: -12 – 15 °C Default value: -8 °C max brine in Setting range: 10 – 30 °C Default value: 20 °C NIBE F1145 Chapter 8 | Control - Menus...
  • Page 48 "hot water" means operating mode hot water for the heating medium pump. "pool" (accessory required) means operating mode pool heating for the heating medium pump. Chapter 8 | Control - Menus NIBE F1145...
  • Page 49 Setting range DOT: -40.0 – 20.0 °C Factory setting DOT: -18.0 °C Examples of docking alternatives can be found at www.nibe.eu. The type of heating distribution system the heating medium pump (GP1) works towards is set here. This menu has a docking memory which means that the...
  • Page 50 Default value: 3 ant heat pump. activate cooling Pool 1 Setting range: on/off Factory setting: off Pool 2 continuous pump op.: Select for continuous operation of the circulation pump in the exhaust air module. Chapter 8 | Control - Menus NIBE F1145...
  • Page 51 Selecting "prioritised additional heat" uses the heat from the external additional heat instead of the heat pump. The shunt valve is regulated as long as heat is available, otherwise the shunt valve is closed. NIBE F1145 Chapter 8 | Control - Menus...
  • Page 52 When the function has been activated, you can Factory setting: off make settings for them. "solar panel cooling", "passive recharging" and "active recharging" cannot be combined, only one function can be activated. Chapter 8 | Control - Menus NIBE F1145...
  • Page 53 Set the temperature at which the mixing valve is to restrict hot water from the water heater. NIBE F1145 Chapter 8 | Control - Menus...
  • Page 54 100% runs, regardless of the setting in NOTE menu 5.1.10. Forced control is only intended to be used for troubleshooting purposes. Using the function in any other way may cause damage to the components in your climate system. Chapter 8 | Control - Menus NIBE F1145...
  • Page 55 Language settings can be made regardless of this selec- tion. NOTE This option locks after 24 hours, restart of dis- play or program updating. NIBE F1145 Chapter 8 | Control - Menus...

  • Page 56: Service

    Servicing should only be carried out by persons with the necessary expertise. When replacing components on F1145 only re- placement parts from NIBE may be used. Emergency mode NOTE The switch (SF1) must not be moved to " " or "...
  • Page 57 This can be done in different ways depending on what needs doing: Draining the brine system in the cooling module If, for example, the brine pump requires replacing or the cooling module requires servicing, drain the brine system NIBE F1145 Chapter 9 | Service...
  • Page 58 1.136 Drain the compressor module according to the in- 2.068 1.007 structions on page 56 1.739 0.891 1.469 0.785 QM31 QM33 1.246 0.691 1.061 0.607 F1145 0.908 0.533 0.779 0.469 0.672 0.414 QM34 QM32 Chapter 9 | Service NIBE F1145...
  • Page 59 Disconnect the connectors (A) and (B) from the un- QM34 QM32 derside of the base card cabinet. Disconnect the connector (C) from the immersion heater circuit board (AA1) using a screwdriver. Disconnect the connector (D) from the joint circuit board (AA100). NIBE F1145 Chapter 9 | Service...
  • Page 60 The display unit is equipped with a USB socket that can memory must contain files with software for be used to update the software, save logged information F1145 from NIBE. and manage the settings in F1145. INDOOR CLIMATE HOT WATER...
  • Page 61 2. Tick “activated". 3. The present values from F1145 are saved in a file in the USB memory at the set interval until “activated" is unticked. NOTE Untick "activated" before removing the USB memory. NIBE F1145 Chapter 9 | Service...

  • Page 62: Disturbances In Comfort

    "stop heating" in menu 4.9.2. To select aid mode an alarm action must be se- If mode "manual" is selected, select "heating". If this – lected in the menu 5.1.4. is not enough, select "addition". Chapter 10 | Disturbances in comfort NIBE F1145...
  • Page 63 High or distracting ventilation External switch for changing the room heating activ- ■ ated. This part of the fault-tracing chapter only applies if the NIBE FLM accessory is installed. Check any external switches. – Filter blocked. ■ Circulation pump(s) (GP1 and/or GP2) stopped.
  • Page 64 Gurgling sound This part of the fault-tracing chapter only applies if the NIBE FLM accessory is installed. Not enough water in the water seal. ■ Refill the water seal with water. – Choked water seal. ■ Check and adjust the condensation water hose.

  • Page 65: Accessories

    Communications module OPT 10 OPT 10 is used to enable connection and control of gas Energy measurement kit EMK 300 boiler NIBE GBM 10-15. This accessory is used to measure the amount of energy Part no. 067513 F1145 supplies to the pool, hot water and heating / cooling in the building.
  • Page 66 This accessory is used to supply the accommodation with energy that has been recovered from the ventilation air. The unit ventilates the house and heats the supply air as necessary. ERS 10-500 ERS 20-250 Part no. 066 078 Part no. 066 068 Chapter 11 | Accessories NIBE F1145...

  • Page 67: Technical Data

    Dimensions and setting-out coordinates * This dimension applies at 90° angle on the brine pipes (side connection). The dimension can vary approx. ±100 mm in height as the brine pipes partially consist of flexible pipes. NIBE F1145 Chapter 12 | Technical data...

  • Page 68: Technical Specifications

    Output, Brine pump 30 – 30 – 35 – 35 – Output, Heating medium pump 7 – 67 7 – 67 7 – 67 7 – 67 IP class IP21 Chapter 12 | Technical data NIBE F1145...
  • Page 69 4.7 / 3.7 4.5 / 3.7 EN14825 SCOP average climate, 35 °C / 55 °C 4.8 / 3.6 4.9 / 3.7 5.0 / 3.8 4.7 / 3.6 4.6 / 3.7 4.4 / 3.6 EN14825 NIBE F1145 Chapter 12 | Technical data...
  • Page 70 Min/max HM-temp °C see diagram Sound power level (L dB(A) acc to EN 12102 at 0 Sound pressure level (L dB(A) calculated values according to EN ISO 11203 at 0/35 and 1m range Chapter 12 | Technical data NIBE F1145...
  • Page 71 1 – 2 kW immersion heater (Recom- mended fuse rating) Max operating current heat pump includ- 18(20) 13(16) 15(16) 15(16) 18(20) 20(20) 22(25) ing 3 – 4 kW immersion heater (Recom- mended fuse rating) NIBE F1145 Chapter 12 | Technical data...
  • Page 72 If the impedance in the mains connection point is higher than that stated check with the power supplier before purchasing the equipment. Miscellaneous Miscellaneous Dimensions and weight Chapter 12 | Technical data NIBE F1145...
  • Page 73 Incoming brine temp, °C Incoming brine temp, °C Köldbärare in, temperatur Köldbärare in, temperatur Köldbärare in, temperatur Köldbärare in, temperatur Framledning Framledning Flow pipe Framledning Framledning Flow pipe Return pipe Returledning Returledning Return pipe Returledning Returledning NIBE F1145 Chapter 12 | Technical data...

  • Page 74: Energy Labelling

    Energy labelling Information sheet Supplier NIBE AB Model F1145-5 1x230V F1145-8 1x230V F1145-10 1x230V F1145-12 1x230V Model hot water heater VPB300 VPB300 VPB300 VPB300 Temperature application °C 35 / 55 35 / 55 35 / 55 35 / 55 Declared load profile for water heating...
  • Page 75 Supplier NIBE AB Model F1145-6 F1145-8 F1145-10 F1145-12 F1145-15 F1145-17 3x230V 3x230V 3x230V 3x230V 3x230V 3x230V Model hot water heater VPB300 VPB300 VPB300 VPB300 VPB500 VPB500 Temperature application °C 35 / 55 35 / 55 35 / 55 35 / 55...
  • Page 76 Supplier NIBE AB Model F1145-5 F1145-6 F1145-8 F1145-10 F1145-12 F1145-15 F1145-17 3x400V 3x400V 3x400V 3x400V 3x400V 3x400V 3x400V Model hot water heater VPB300 VPB300 VPB300 VPB300 VPB300 VPB500 VPB500 Temperature application °C 35 / 55 35 / 55 35 / 55...
  • Page 77 Data for energy efficiency of the package Model F1145-5 1x230V F1145-8 1x230V F1145-10 1x230V F1145-12 1x230V Model hot water heater VPB300 VPB300 VPB300 VPB300 Temperature application °C 35 / 55 35 / 55 35 / 55 35 / 55 Controller, class...
  • Page 78 Technical documentation Model F1145-5 1x230V Model hot water heater VPB300 Type of heat pump Air-water Exhaust-water Brine-water Water-water Low-temperature heat pump Integrated immersion heater for additional heat Heat pump combination heater Climate Average Cold Warm Temperature application Average (55 °C) Low (35 °C)
  • Page 79 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.09 Daily fuel consumption elec fuel Annual energy consumption 1,995 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 80 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 8.86 Daily fuel consumption elec fuel Annual energy consumption 1,945 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...
  • Page 81 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.66 Daily fuel consumption elec fuel Annual energy consumption 2,121 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 82 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.22 Daily fuel consumption elec fuel Annual energy consumption 2,025 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...
  • Page 83 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.09 Daily fuel consumption elec fuel Annual energy consumption 1,995 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 84 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 8.86 Daily fuel consumption elec fuel Annual energy consumption 1,945 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...
  • Page 85 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.66 Daily fuel consumption elec fuel Annual energy consumption 2,121 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 86 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 10.39 Daily fuel consumption elec fuel Annual energy consumption 2,283 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...
  • Page 87 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 10.18 Daily fuel consumption elec fuel Annual energy consumption 2,235 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 88 Model F1145-5 3x400V Model hot water heater VPB300 Type of heat pump Air-water Exhaust-water Brine-water Water-water Low-temperature heat pump Integrated immersion heater for additional heat Heat pump combination heater Climate Average Cold Warm Temperature application Average (55 °C) Low (35 °C) Applied standards EN-14825 &...
  • Page 89 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.22 Daily fuel consumption elec fuel Annual energy consumption 2,025 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 90 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.09 Daily fuel consumption elec fuel Annual energy consumption 1,995 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...
  • Page 91 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 8.86 Daily fuel consumption elec fuel Annual energy consumption 1,945 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 92 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 9.66 Daily fuel consumption elec fuel Annual energy consumption 2,121 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...
  • Page 93 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 10.39 Daily fuel consumption elec fuel Annual energy consumption 2,283 Annual fuel consumption NIBE F1145 Chapter 12 | Technical data...
  • Page 94 For heat pump combination heater Declared load profile for water heating Water heating energy efficiency ƞ Daily energy consumption 10.18 Daily fuel consumption elec fuel Annual energy consumption 2,235 Annual fuel consumption Chapter 12 | Technical data NIBE F1145...

  • Page 95: Item Register

    Miniature circuit-breaker, 19 Contact for activation of fan speed, 28 Motor cut-out, 19 Contact for activation of “external adjustment", 28 NIBE Uplink™, 26 Contact for activation of “temporary lux", 28 Optional connections, 25 Contact for external tariff blocking, 27 Outdoor sensor, 22...
  • Page 96 Motor cut-out, 19 USB service outlet, 60 Resetting, 19 Setting a value, 41 Settings, 23 Standby mode, 56 NIBE Uplink™, 26 Power in emergency mode, 24 NV 10, pressure/level/flow monitor brine, 28 Start guide, 32 Status lamp, 38 OK button, 38...
  • Page 97 Component location electrical cabinets, 10 Component locations, 8 List of components, 8 Transport, 6 Troubleshooting, 62 USB service outlet, 60 Use the virtual keyboard, 42 Working range heat pump, 73 NIBE F1145 Chapter 13 | Item register...

  • Page 99: Contact Information

    Tel: +7 831 419 57 06 E-mail: kuzmin@evan.ru www.nibe-evan.ru NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd Tel: +46 (0)433 73 000 E-mail: info@nibe.se www.nibe.se For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.
  • Page 100 WS name: Bergvärme WS version: a96 (working edition) Publish date: 2016-12-15 12:35 NIBE AB Sweden Hannabadsvägen 5 Box 14 SE-285 21 Markaryd info@nibe.se www.nibe.eu 331509...
