Outline diagram

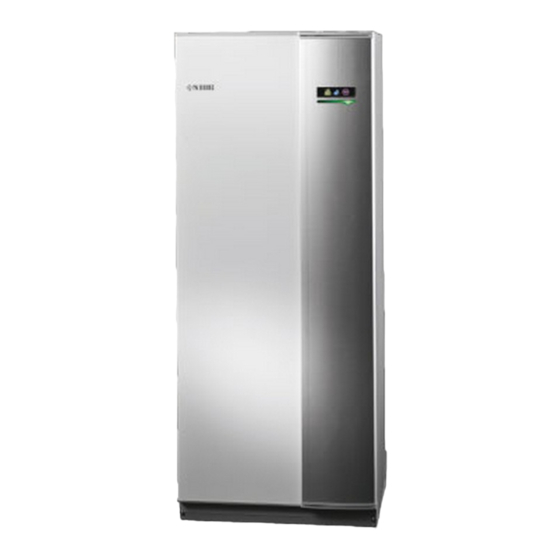

Hide thumbs Also See for F1145:

Advertisement

Quick Links

Ground water collector
Hot tap water
Ext. electr. heating add.

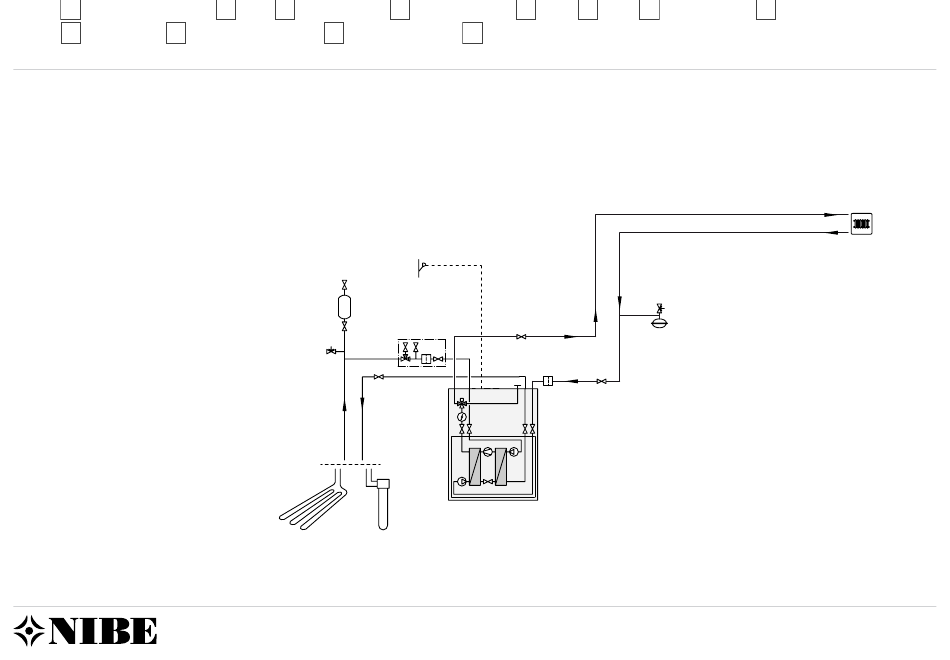

Outline diagram
Application
Houses with water-borne heating systems.
Function
F1145 prioritises hot water charging. The
heat pump is controlled by the outdoor
sensor (BT1) in combination with the in-
ternal flow sensor. The internal immersion
heater is connected automatically when the
energy requirement exceeds the capacity of
the heat pump.
Heating system 2
The external circulation pump (EP21-GP20)
is dimensioned for the under floor heat-
ing system's demand. The flow through
the heat pump is adjusted using the heat
medium pump and any applicable control
valve.
NOTE!! In cases where the system volume
in the heating system is below 20 l/kW
(compressor output) and/or heating me-
dium flow is choked uncontrolled, a UKV
tank is installed as a volume increaser. For
only under floor heating systems and UKV,
3 connections on the UKV tank must be
used according to its installation instruc-
tions.
Note! This is an outline diagram. Actual
installations must be planned according to
applicable standards.
See the appropriate "Installer manual" for
more information.
FLM
Passive cooling
Heating system 2
Ext. oil heating add.
-QM12
-CM2
-QM42
-XL15
-FL3
-QM34
-EB100
-EP12
Lables according to IEC 61346-2
NIBE AB - Energy systems Box 14, SE-285 21 Markaryd www.nibe.eu
Pool
Ext. district heating add.
F1145 for heating systems, any accessories as well as additional heaters
-BT1
-QM31
-HQ1
-QM32
F1145
UKV
Extra hot water
Hot water circulation
-FL2
-CM1
Designations according to standard IEC 61346-2
ODM GB 1010-1
M10788
PAGE 1 (5)
