Quick start guide
Intel® Stratix® 10 SoC
Development Kit
A Complete Development Environment

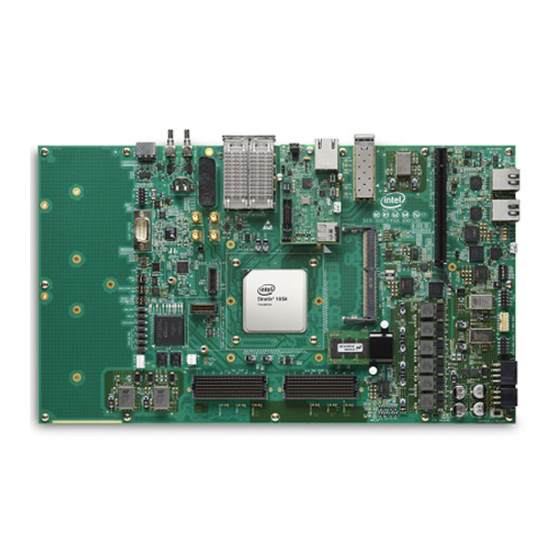

Intel® Stratix® 10 SX SoC Board
Features
• Intel Stratix 10 SX FPGA
- Please refer to Intel site for
exact device part number on this
development kit
• Embedded Intel FPGA USB
Download Cable II for hard
processor system (HPS) or FPGA
programming/debugging
• PCI Express* (PCIe*)
- 1X Gen3 x16 root port
- 2X Gen3 x16 end ports
(need to use FMC+ ports to
connect with PCIe cable)
• 2X 100GbE quad small form factor
pluggable (QSFP) 28 ports (QSFP28)
ports
• Dual FPGA mezzanine card (FMC+)
expansion headers
• Two 10/100/1000 SGMII Ethernet
ports
, one 10/100/1000 RGMII
¤
Ethernet port and one small form
factor pluggable (SFP+) cage
• USB On-The-Go (USB OTG) port
• One High-Definition Multimedia
Interface (HDMI)
• One serial digital interface (SDI)
port
¤
Intellectual property (IP) is not available in v18.0.
¤
What's in the Box
• Intel Stratix 10 SoC development
board
• 1X mini USB cable
• 1X micro USB cable
• 1X Ethernet cable
• HPS IO48 OOBE daughtercard
• Flash configuration daughtercards
- 1X Quad SPI flash
- 1X NAND flash
- 1X MicroSD flash
• 2x FMC+ loopback daughtercards
• 1X DDR4 HILO memory card
• 1X DDR4 SoDIMM memory card
• Quick start guide
Available Resources
The following software and tools
are available for download:
• Documentation
• Schematics and design files
• Intel Stratix 10 SoC Development
Kit User Guide
• Intel SoC FPGA Embedded
Development Suite (SoC EDS)
User Guide
• Golden System Reference Design
User Manual
• Design and development tools
• Intel SoC FPGA Embedded
Development Suite, including
ARM* Development
- Studio 5* (DS-5*) Intel SoC
FPGA Edition Toolkit
• Intel Quartus® Prime Pro Edition
design software
• Design examples
• Golden System Reference Design
