Intel Stratix 10MX Quick Start Manual

Quick start guide
Intel® Stratix® 10 MX FPGA
Development Kit
A Complete Development Environment

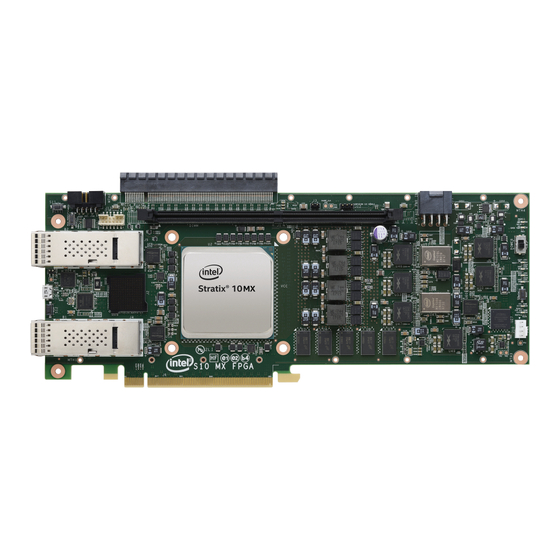

Intel® Stratix® 10 MX Board
Features
• Intel Stratix 10 MX FPGA
• 1SM21BHU2F53E2VGS1
• Embedded Intel FPGA USB
Download Cable II for FPGA
programming/debugging
• PCI Express® (PCIe®)
- 1X Gen3 x16 Root port
- 1X Gen3 x16 End port
• 2X 100GE QSFP28 ports
• 288-pin DIMM socket supporting
DDR4 and DDR-T module
• 16GB on-board DDR4 SDRAM
• Micro USB port
What's in the Box
• Intel Stratix MX FPGA
development board
• 1X USB cable micro
• 1X DDR4 HILO memory card
• 1X DDR4 DIMM memory card
• 1X 250W Power Adapter
• Quick Start Guide
Available Resources
The following software and tools
are available for download:
• Documentation
• Schematics and design files
• Intel Stratix 10 MX FPGA
Development Kit User Guide
• Golden System Reference Design
User Manual
• Design and development tools
• Intel Quartus® Prime Pro design
software
• Design examples
