StarTech.com 1U Quick Start Manual

8-Port VGA Rackmount LCD Console | 17 in | 1U

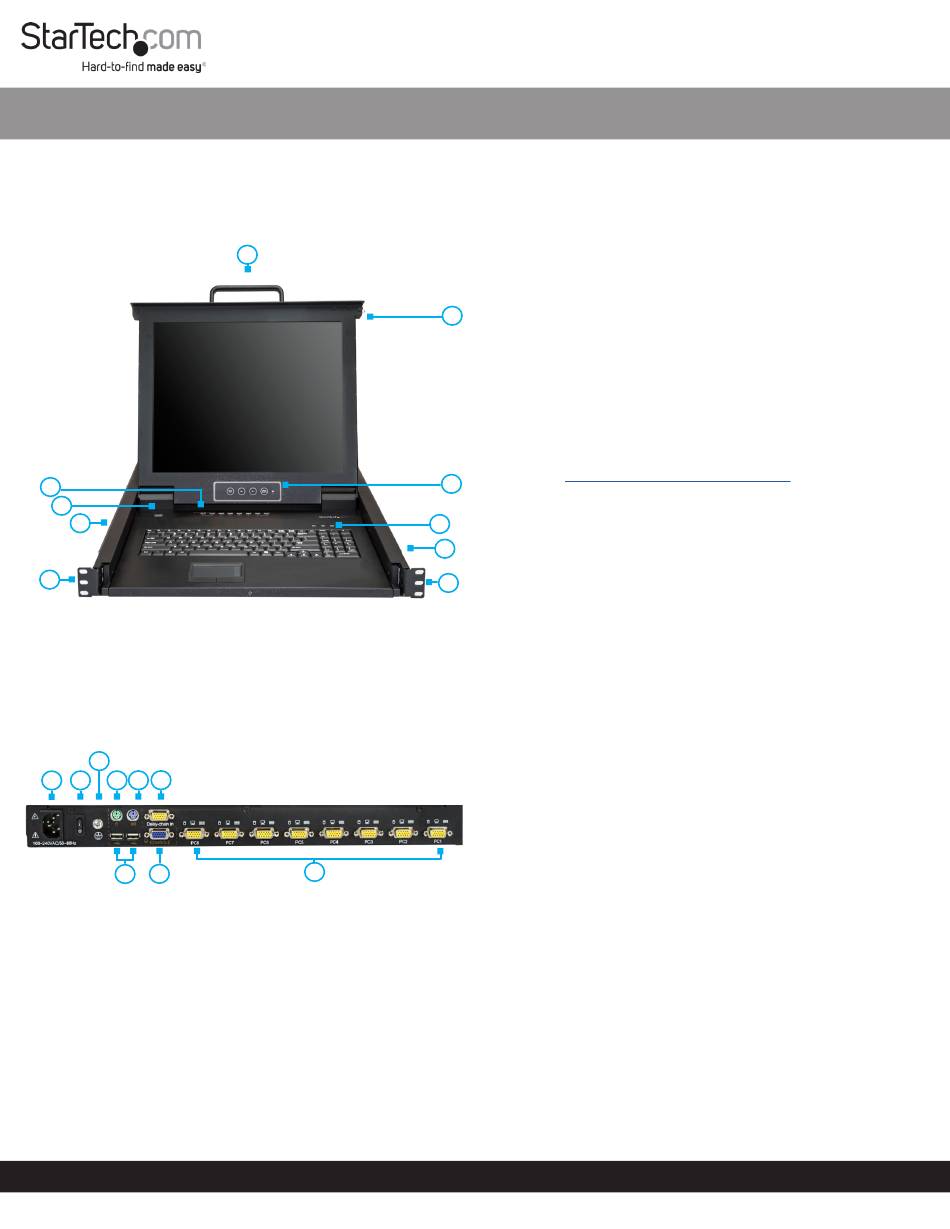

Product Design
Actual product may vary from photos

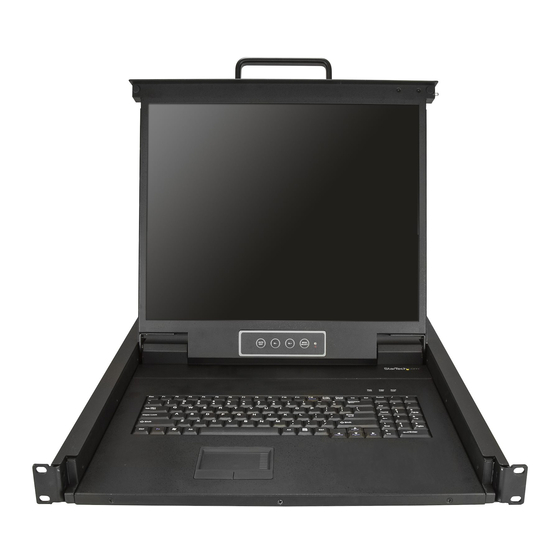

Front View

2
3
4
5
1 Handle
2 Port Selection Buttons/
LEDs
3
Current Port
4
Rail(s)
Rear View
3
1 2 4 5 6
7 8
1
Power Connection Port
2
Power Switch
3
Ground Connection Screw
4
Console Mouse Port
5
Console Keyboard Port
For the latest information, specifications, and support visit www.startech.com/RKCONS1708K.
1
5 Mounting Bracket (installed)
6 Keyboard LEDs
7
Display Menu Buttons
8
Release Switch
9
6
Daisy Chain Port
7
USB-A Ports
8
Console Monitor Port
9
Host Port

Package Contents

• LCD Rackmount Console x 1
• KVM Cables x 8
• M5 Cage Nuts x 8
• M5 Screws x 8
• Regional Power Cords (NA, JP, EU, UK, ANZ) x 5
• Mounting Rails x 2
• Quick-Start Guide x 1
8
Requirements
• 1U of Rack Space
• Grounding Wire
• Power Source
• Up to 8 Computers or Servers
• Phillips Type Screwdriver
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/RKCONS1708K.
7
Installation
6
Note: It's easier to install the LCD Rackmount Console if another
person helps you with the installation.
4
Warning: Use caution and proper lifting techniques when
5
installing the LCD Rackmount Console.
1. Based on the mounting depth of the server rack that you are
using, select the appropriate length of Mounting Rails.
2. Decide where in the server rack you want to install the LCD
Rackmount Console.
3. Insert the M5 Cage Nuts (two per Mounting Post) into the
square Mounting Holes on the Mounting Posts.
4. Align the rear Mounting Bracket Rails with the M5 Cage Nuts
on the corresponding Mounting Post.
5. Insert an M5 Screw (two per Mounting Post) through the rear
Mounting Bracket Rail and into the M5 Cage Nut. Do not
tighten the M5 Screws.
6. With assistance, slide the LCD Rackmount Console into the
server rack guiding the rear Mounting Bracket Rails into the
Rail Assembly.
7. Insert a M5 Screw (two per Mounting Post) through the front
Mounting Bracket Rail into the M5 Cage Nut.
8. Use a Phillips Type Screwdriver to tighten the M5 Screws.
9. Ensure that the rear Rails are properly aligned.
10. Use a Phillips Type Screwdriver to tighten the M5 Screws.
Quick-Start Guide
SKU #: RKCONS1708K
Manual Revision: 10/11/2018
