StarTech.com RKCONS1708K Quick Start Manual

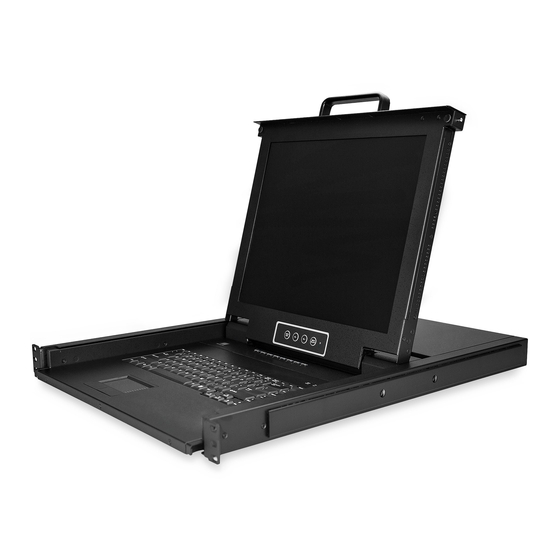

8-Port VGA Rackmount LCD Console | 17 in | 1U

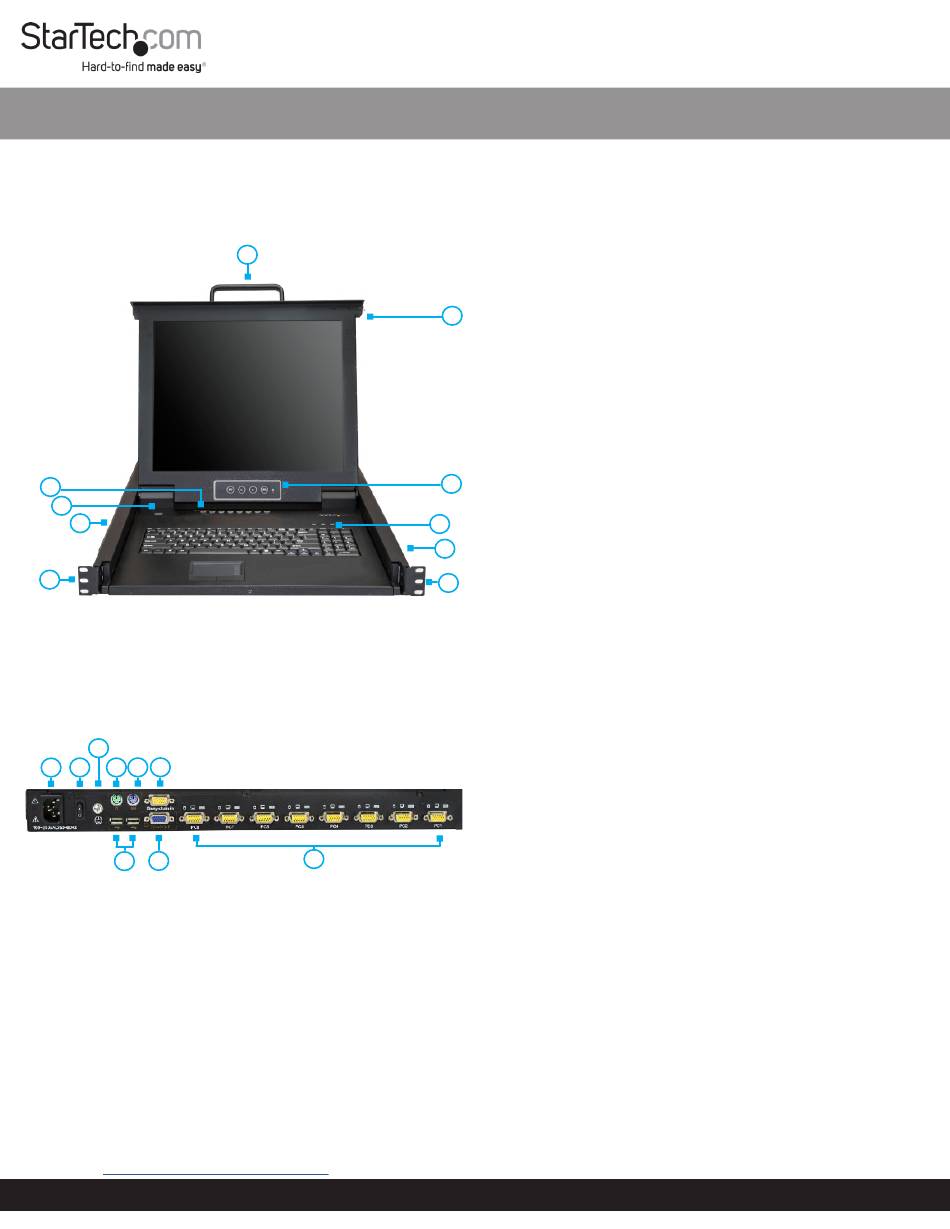

Product Design
Actual product may vary from photos
Front View
2
3
4
5
1 Handle
2 Port Selection Buttons/
LEDs
3
Current Port
4
Rail(s)
Rear View
3
1 2 5 6
4
7 8
1 Power Connection Port
2 Power Switch
3 Ground Connection Screw
4 Console Mouse Port
5
Console Keyboard Port
Requirements
• 1U of Rack Space
• Grounding Wire
• Power Source
• Up to 8 Computers or Servers
• Phillips Type Screwdriver
• Quick-Start Guide
Requirements are subject to change. For the latest requirements,
please visit www.StarTech.com/RKCONS1708K.
For the latest information, specifications, and support visit www.startech.com/RKCONS1708K.
1
5 Mounting Bracket (installed)
6 Keyboard LEDs
7
Display Menu Buttons
8
Release Switch
9
6 Daisy Chain Port
7 USB-A Ports
8 Console Monitor Port
9 Host Port
Installation
• Caution! Double pole / neutral fuse. Disconnect mains before
servicing.
• Always ground the unit before connecting/disconnecting the
Power Cord.
Mounting the LCD Rackmount Console
Note: It's easier to install the LCD Rackmount Console if another
person helps you with the installation.
8
Warning: Use caution and proper lifting techniques when
installing the LCD Rackmount Console.
1. Based on the mounting depth of the server rack that you are
using, select the appropriate length of Mounting Rails.
2. Decide where in the server rack you want to install the LCD
Rackmount Console.
3. Insert the M5 Cage Nuts (two per Mounting Post) into the
square Mounting Holes on the Mounting Posts.
4. Align the rear Mounting Bracket Rails with the M5 Cage Nuts
7
on the corresponding Mounting Post.
5. Insert an M5 Screw (two per Mounting Post) through the rear
Mounting Bracket Rail and into the M5 Cage Nut. Do not
6
tighten the M5 Screws.
4
6. With assistance, slide the LCD Rackmount Console into the
server rack guiding the rear Mounting Bracket Rails into the
5
Rail Assembly.
7. Insert a M5 Screw (two per Mounting Post) through the front
Mounting Bracket Rail into the M5 Cage Nut.
8. Use a Phillips Type Screwdriver to tighten the M5 Screws.
9. Ensure that the rear Rails are properly aligned.
10. Use a Phillips Type Screwdriver to tighten the M5 Screws.
Grounding the LCD Console
Notes: Grounding wires are typically green or green with a yellow
stripe, and should be at least 18 AWG.
Grounding is recommended in all environments and essential in
environments with high levels of electromagnetic interference
(EMI), or frequent electrical surges.
1. Using a Phillips Head Screwdriver, loosen the Grounding
Connection Screw.
2. Attach the Grounding Wire to the shaft of the Grounding
Connection Screw.
3. Tighten the Grounding Connection Screw, making sure not to
over-tighten.
4. Attach the other end of the Grounding Wire (not connected
to the LCD Rackmount Console) to a proper earth-ground
connection.
Connect the Console
Important Considerations
• If you're installing the Console in a closed or multi-unit rack
assembly, ensure that the environmental conditions are within
the unit's maximum and minimum specifications.
• Consider your airflow requirement when selecting a location for
installation.
• The Console should be installed with a balanced mechanical
load.
• It's recommended that the Console be connected to a power
source with overcurrent protection and supply wiring.
Quick-Start Guide
SKU #: RKCONS1708K
Manual Revision: 09/23/2021
