DERRICK HYPERPOOL SHAKER Maintenance & Operation Manual page 89

4
08
D
02
C
13
B
A
4 ADDED ITEM 20 JMB
3 ADDED ITEM 19 JMB
2 ADDED ITEMS 14-18 JMB
ADDED ITEM 13 JMB
1
REV DESCRIPTION DWN CKD
4
3
19
06
12
10
11
09
03
01
9/10/2012
9/10/2012
8/8/2012
7/19/2012
GA: 17611-00
DATE
3
2
07
18
16
04
ASSEMBLY 17617-01
* - QTY OF (8) ON ITEM 19 - FOR USE WITH SGX MOTORS ONLY
* - QTY OF (8) ON ITEM 20 - FOR USE WITH SG2X MOTORS ONLY
4 20 * 15880-01 "SG2X" MOTOR BOLT ASSEMBLY
3 19 * G0001973 "SGX" MOTOR BOLT ASSY
18 4 17617-05 PAWL/LOCK ASSEMBLY
2
17 1 17617-04 TENSION HANDLE ASSEMBLY
16 4 17617-03 ACTUATOR ASSEMBLY
15 8 17617-02 BUSHING HOUSING ASSEMBLY
2
14 16 G0012731 PIN HOUSING ASSEMBLY
13 1 13438-01-003 FEEDER SEAL
1
12 3 18022-01 PANEL LOCATOR
11 1 16848-13 REAR CROSS SUPPORT
10 4 16848-11 BULKHEAD PROTECTOR (DOUBLE)
09 8 16848-12 SIDE SUPPORT
08 4 18021-01 PANEL HOLD-DOWN
07 1 G0012647 FRONT CURTAIN ASSY
06 12 16848-10 BULKHEAD PROTECTOR (SINGLE)
05 4 17617-01 COMPRESSION ASSY
04 8 1129-00 FLOAT MOUNT
03 2 SGX/SG2X VIBRATING MOTOR
02 1 13478-00 REAR CLOSEOFF
05
01 1 17612-01 SCREENFRAME
ITEM QTY PART NUMBER PART NAME
GEOMETRIC CHARACTERISTIC SYMBOLS
THE DESIGNS AND INFORMATION CONTAINED ON THIS DRAWING OR COPIES REMAIN THE EXCLUSIVE PROPERTY OF DERRICK  CORPORATION BUFFALO, NEW YORK U.S.A.
AND ARE NOT TO BE REPRODUCED WITHOUT THE WRITTEN PERMISSION OF DERRICK  CORPORATION. THE INFORMATION CONTAINED ON THIS DRAWING SHALL ONLY BE
c
FLATNESS USED BY CUSTOMERS OR PROSPECTS OR THEIR AGENCIES IN THE ARRANGEMENT OR INSTALLATION OF DERRICK  EQUIPMENT, OR BY VENDORS IN QUOTING ON OR IN
THE SUPPLY OF PARTS OR ASSEMBLIES TO DERRICK  , OR BY OTHERS FOR THE SPECIFIC REASON OUTLINE IN THE TRANSMITTAL WHETHER WRITTEN OR VERBAL.

STRAIGHTNESS

ROUNDNESS DRAWN

CYLINDRICITY
JMB 5/17/2012

PARALLELISM
CHECKED

PERPENDICULARITY

ANGULARITY
QA

RUNOUT

POSITION
 MFG
CONCENTRICITY

SYMMETRY
UNLESS SPECIFIED APPROVED
DEC MM
(2) PLACE DEC. +/- .0100 +/- .2540
(3) PLACE DEC. +/- .0050 +/- .1270
(4) PLACE DEC. +/- .0010 +/- .0254
(5) PLACE DEC. +/- .0005 +/- .0127
 
ANGLES.............+/- .1 +/- .1
DO NOT SCALE DRAWING
2
1
17
15
14
3/4-16 L9 HARDWARE
3/4-16 L9 HARDWARE
SPECIAL
SPECIAL
SPECIAL
SPECIAL
SPECIAL
3/16 NITRILE
SPECIAL
41 1/4" NITRILE
41 1/4" NITRILE
23" NITRILE
SPECIAL
3/16 X 16 X 42 PVK-120
41 1/4" NITRILE
SPECIAL
4 DIA. X 3 W/ BOLT ASSY
TO SPECIFICATION
HRS
HYPERPOOL 4-PANEL
DESCRIPTION

DERRICK
CORPORATION
TITLE

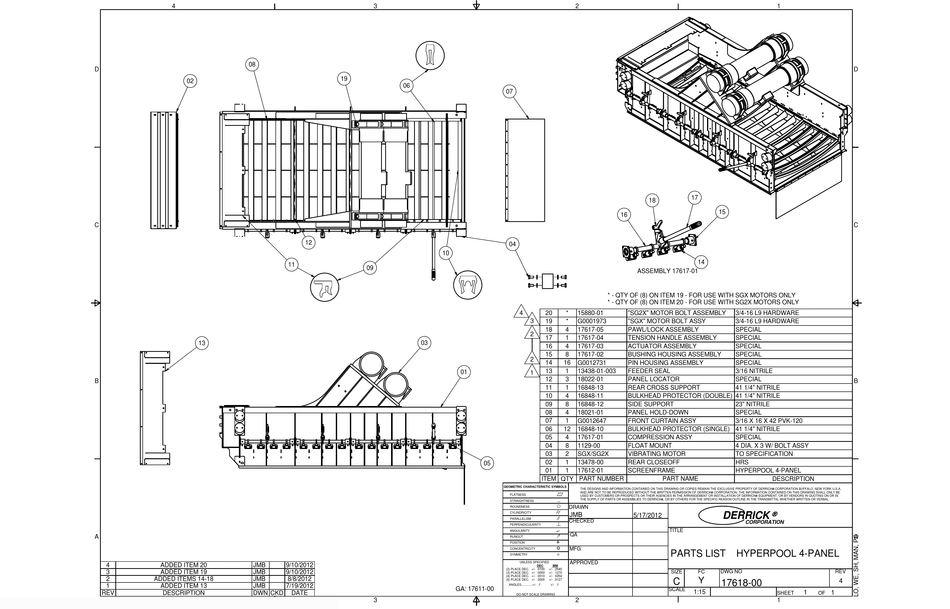

PARTS LIST HYPERPOOL 4-PANEL
SIZE FC DWG NO REV
Y
C 4
17618-00
SCALE
1:15 1 1
SHEET OF
1
D
C
B
A
