INSTALLATION
Feeder Connection (Cont'd)

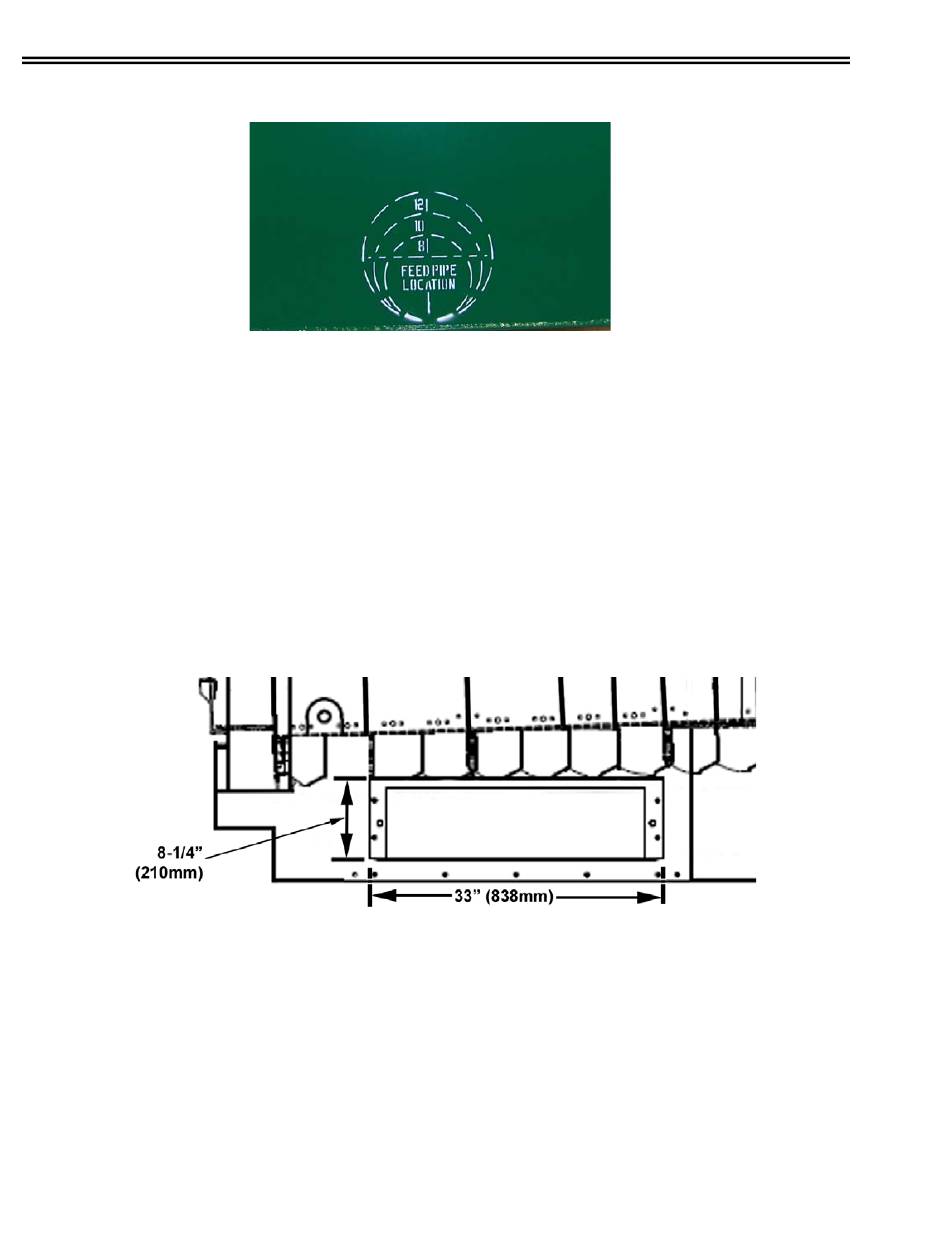

Figure 3-9. Feed Pipe Targets
Collection Pan Bypass
The collection pan outlet discharges directly into the feeder. An 8" (203mm) bypass outlet is
®
provided on the underside of the collection pan to divert the feed, if necessary. A Victaulic cap
and coupling is used to close the bypass opening. To use the bypass, remove the cap and
®
connect an 8" Victaulic groove pipe to the outlet.
Discharge Duct Connection
The hopper has a rectangular drainage cutout (Figure 3-10) on each side. As shipped, one cutout
is closed with a removable panel bolted to the hopper. The panel should be installed on the
unneeded drainage cutout and sealed with an appropriate waterproof sealant to prevent leakage.
Connect a discharge duct to fit the cutout on the opposite side of the hopper using the four bolts
provided to secure the duct flange to the hopper.
Figure 3-10. Hopper Discharge Cutout

ELECTRIC POWER CONNECTIONS

Remove the cover from the input power box, and connect the facility electrical power supply to the
junction box in accordance with Figure 3-11 and wiring schematic in Section 8.
The vibrator motors are three-phase, 50 or 60Hz motor. The motors are not dual wound and
must be operated at the design voltage. For motor power requirements, refer to the label on the
motor data plate.
