Angle Adjustment - DERRICK HYPERPOOL SHAKER Maintenance & Operation Manual

ANGLE ADJUSTMENT

The angle of the discharge end of the screen frame is infinitely adjustable within the equipment's
available range. To adjust the AWD, proceed as follows:
WARNING! BE SURE THAT ALL PERSONNEL ARE CLEAR OF MACHINE
BEFORE ADJUSTING ANGLE OF SCREEN BED.
1. Pivot operating handle (Figure 4-5) downward until horizontal, and set jack screw ratchet
detent to either raise or lower discharge end of screen frame.
2. Using the operating handle, rotate jack screw left to raise or right to lower screen frame end to
the desired angle. Use stamped markings on the upright shafts to assist in determining
angular setting.
15 June 12

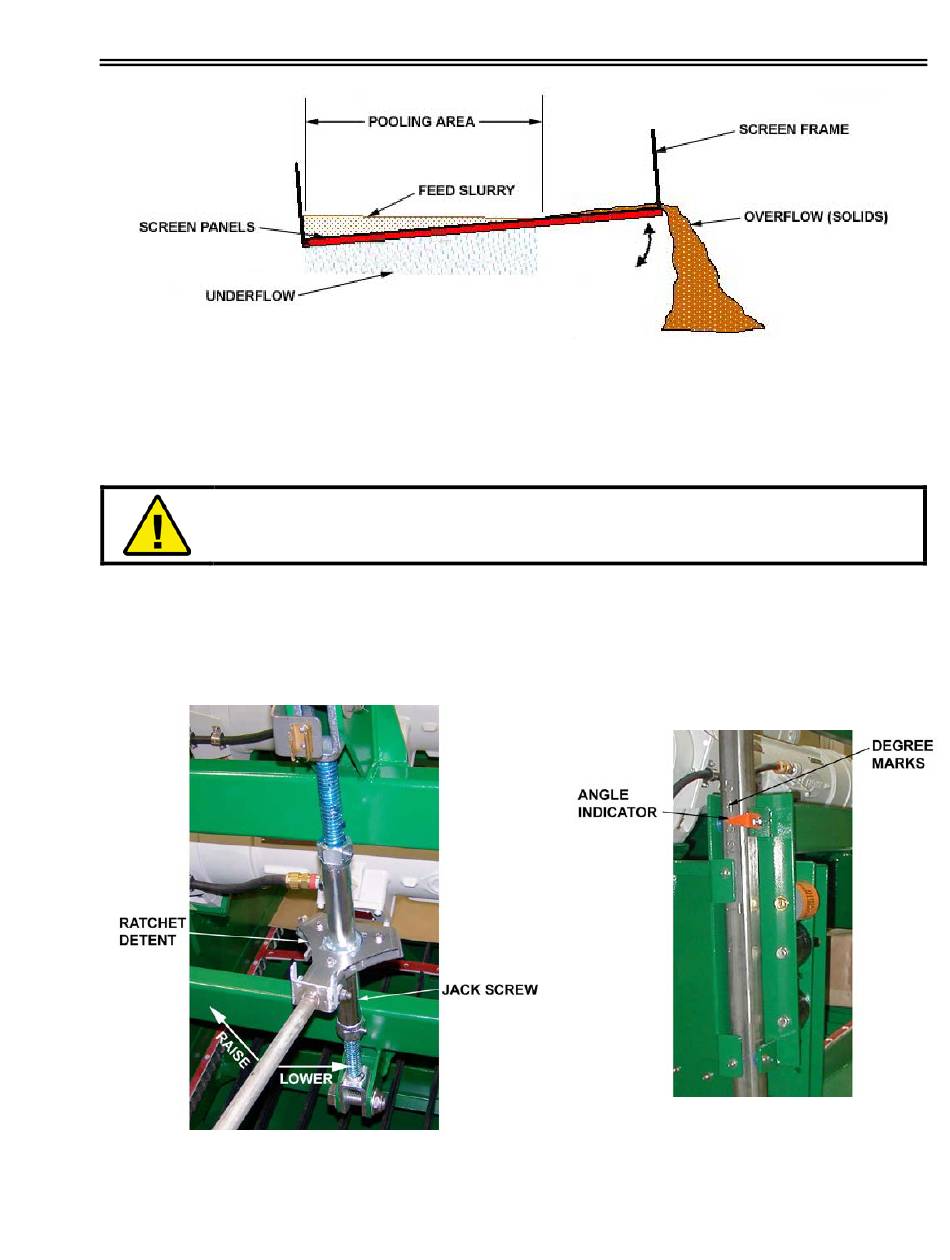

Figure 4-4. Screen Frame Pooling Area
Figure 4-5. Manual Jack Screw AWD Adjustment
