INSTALLATION
Installation Procedure (Cont'd)

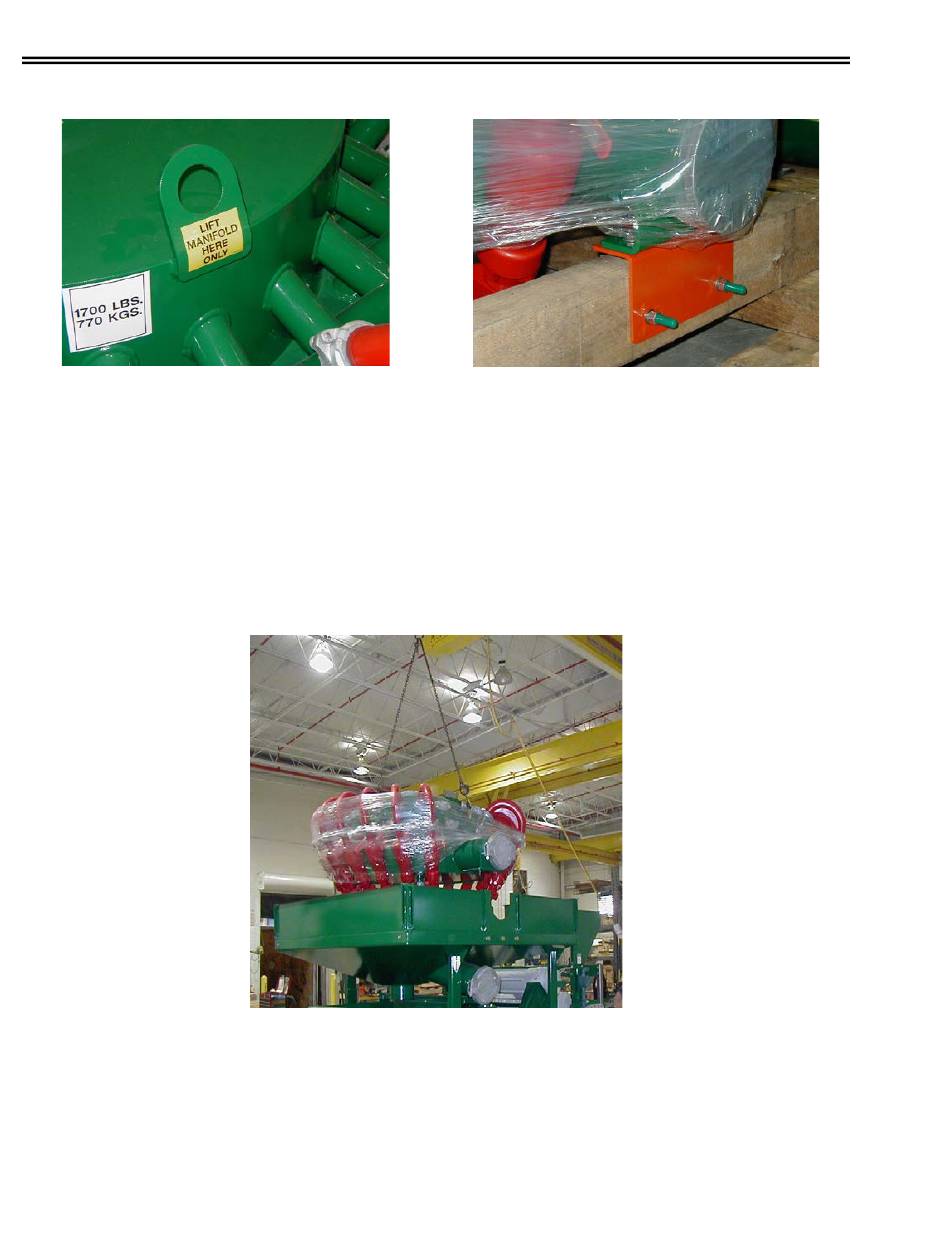

Figure 3-3. Desilter Lift Points and Shipping Bracket Installation
4. Carefully lift desilter free of shipping skid. Orient desilter so that open end of discharge pipe is
aligned with facility pipe.
5. Carefully guide desilter downward into notches of collection pan mounting brackets (Figures
3-4 and 3-5), and align with bracket mounting holes.
6. Using hardware retained in step 3, install but do not tighten hardware on one desilter
mounting bracket with hardware arrangement as shown.
7. Install hardware on opposite side of desilter, and then tighten all hardware on both desilter
mounting brackets.
3-6
HyperPoolShaker
Figure 3-4. Lowering Desilter Into Collection Pan
15 Jun 12
