INSTALLATION

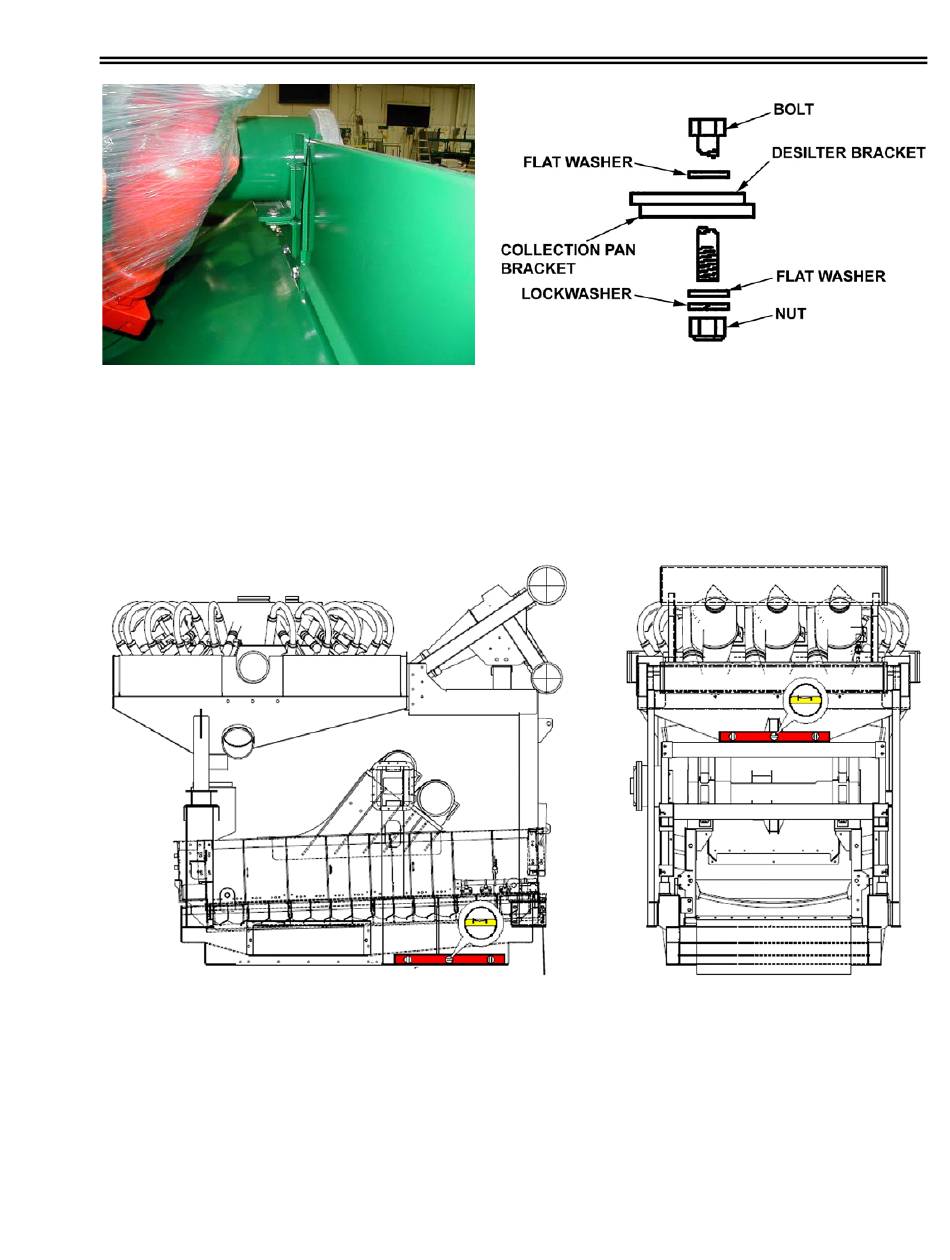

Figure 3-5. Desilter Mounting Details
EQUIPMENT LEVELING
To ensure even distribution of feed slurry across the screen panels, the HyperPool shaker must
be properly leveled. Leveling along the length and width of the unit is shown for a typical machine
in Figure 3-6. A 4-foot level is recommended to check level. Non-compressible shims should be
used as required to level the machine.
Figure 3-6. Equipment Leveling
15 Jun 12
3-7
HyperPoolShaker
