Removal of Electrical Box / PCB / Swing Motor

4. Removal of Electrical Box / PCB / Swing Motor
Procedure
Step
1. Remove the electrical box.
1 Disconnect the
connecting wires.
2 Remove the screw on
the wire fixture.
3 Disconnect the
connectors for fan
motor [S1] [S7].
4 Disconnect the
connector for swing
motor [S6].
Pull out the indoor heat
5
exchanger thermistor.
8
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.

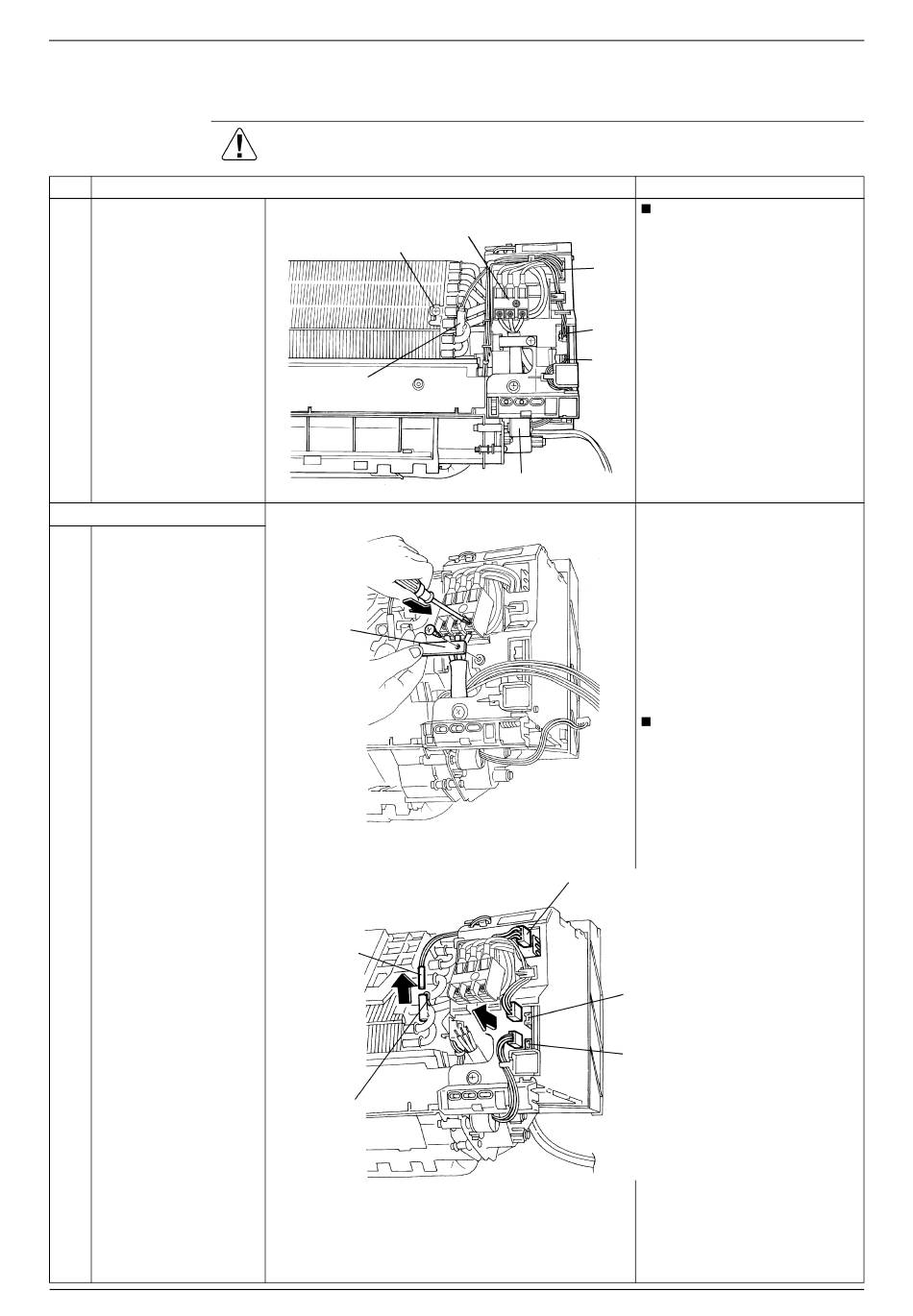

Procedure
Terminal board
Earth screw
Indoor heat exchanger
thermistor
Wire
fixture
Indoor heat
exchanger
thermistor
Retainer of
thermistor
[S1]
[S7]
[S6]
Swing motor
(R18517)
(R18518)
[S1]
Connector
for fan motor
[S7]
Connector
for fan motor
[S6]
Connector
for swing
motor
(R18519)
Si04-960
Points
Remove the front grille.
Pay attention to the direction
of the retainer of the
thermistor so that the
retainer does not touch the
harness.
Removal Procedure
