Removal of Air Filter

1. Removal of Air Filter
Procedure
Step

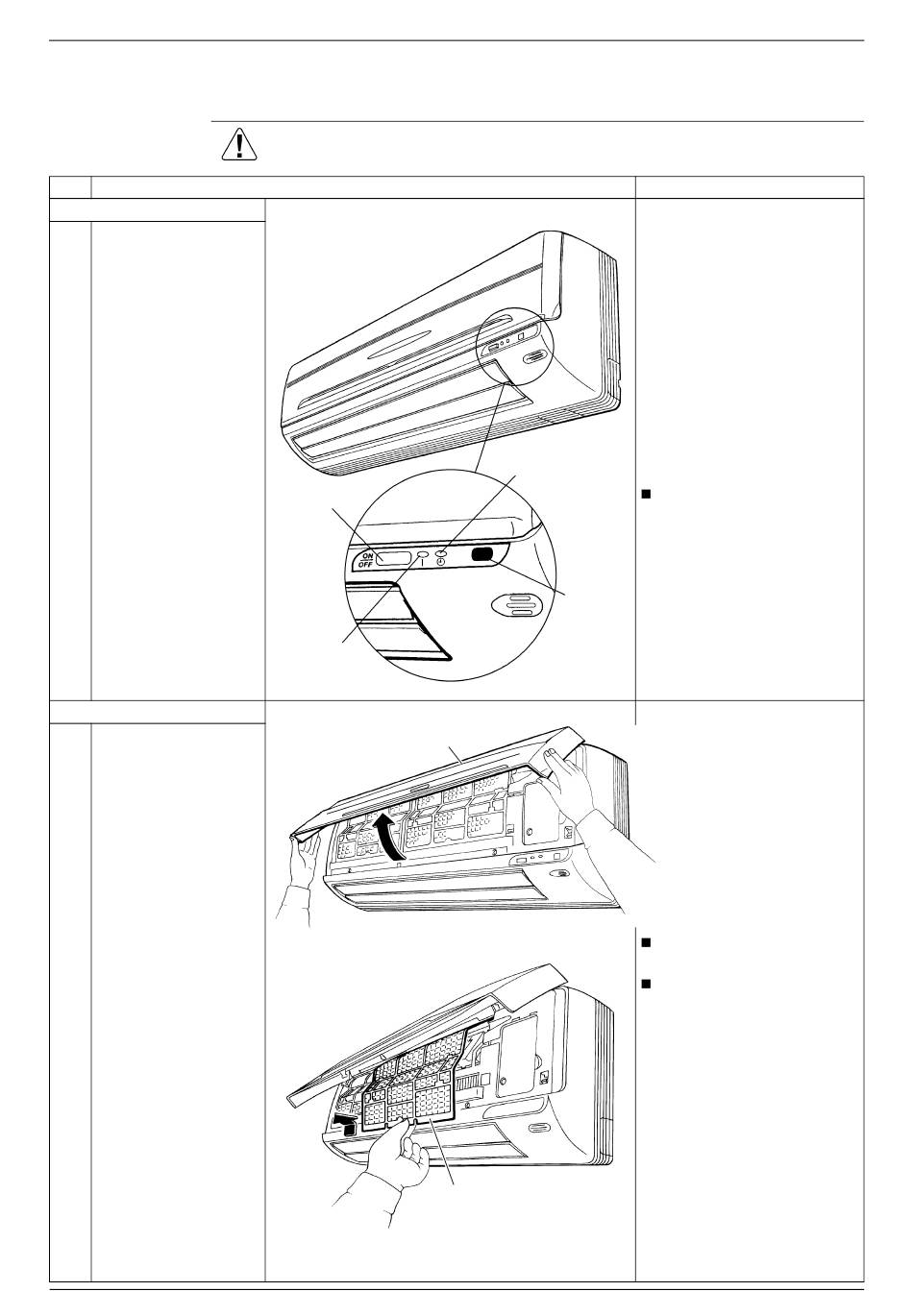

1. External features
2. Remove the air filters.
Hold the protrusions on
1
the left and right sides
of the front panel and
open the front panel
until it stops with a click.
Lift the center section of
2
the air filter and
disengage the hooks.
Remove the air filter by
pulling it forward.
2
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
ON/OFF button
Operation
lamp (Green)
Front panel
Timer lamp
(Yellow)
Signal
receiver
(R4108)
Air filter
(R2511)
Points
If ON/OFF button is pressed
for 5 seconds, a forced
cooling operation is carried
out for approx. 15 minutes.
(R3089)
Left and right filters are
interchangeable.
When reassembling, insert
air filter along the guide.
Removal Procedure
Si04-960
