Removal of Front Grille

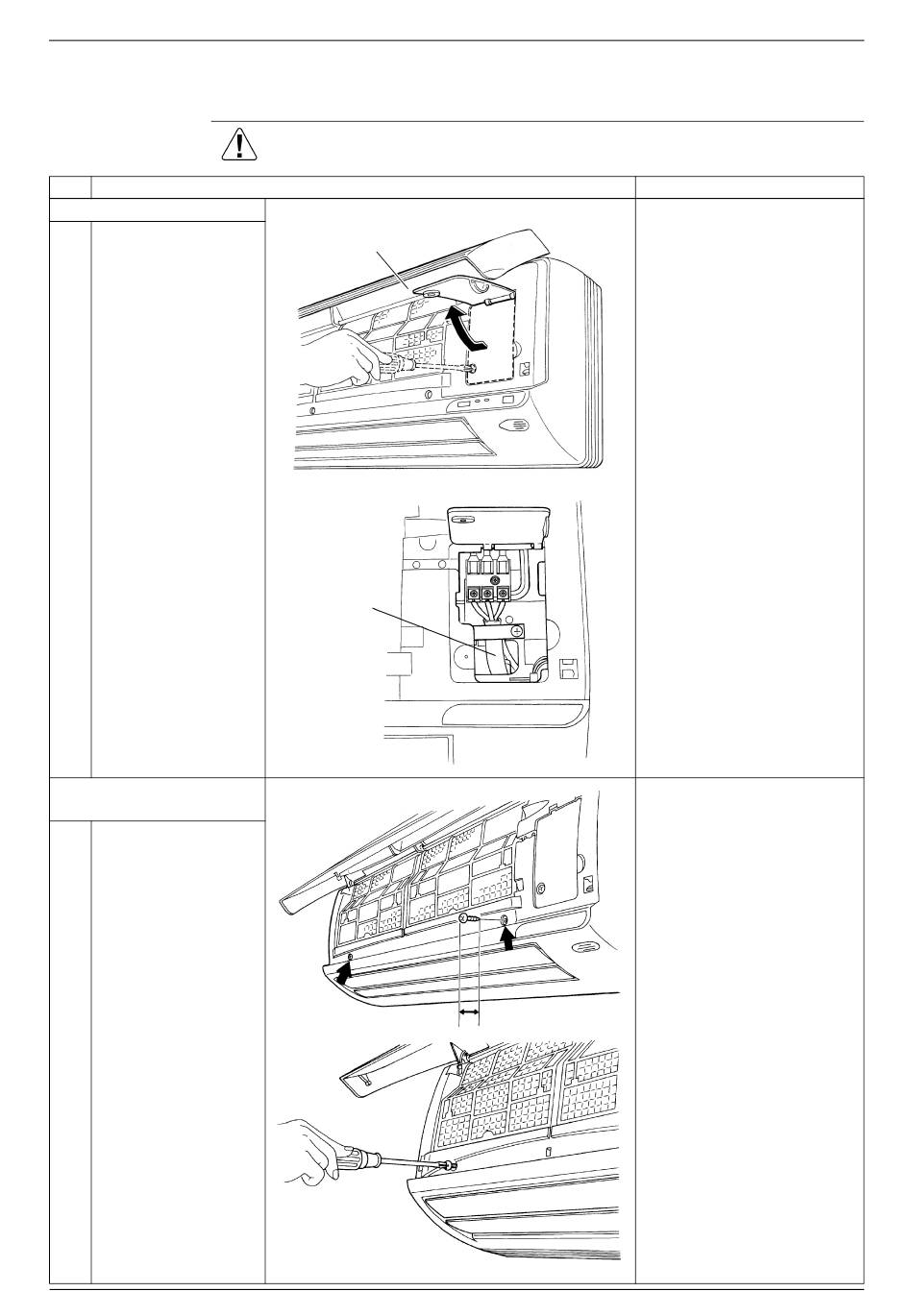

2. Removal of Front Grille
Procedure
Step
1. Remove the service cover.
1 Remove the screw of
the service cover.
Open the service cover
upward.
2. Remove the front grille
assembly.
1 Remove the 2 screws,
which fix the front grille
to the main body.
4
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Service cover
Connection
wires
(R2022)
(R10729)
16mm
(R2517)
(R2518)
Si04-960
Points
Removal Procedure
