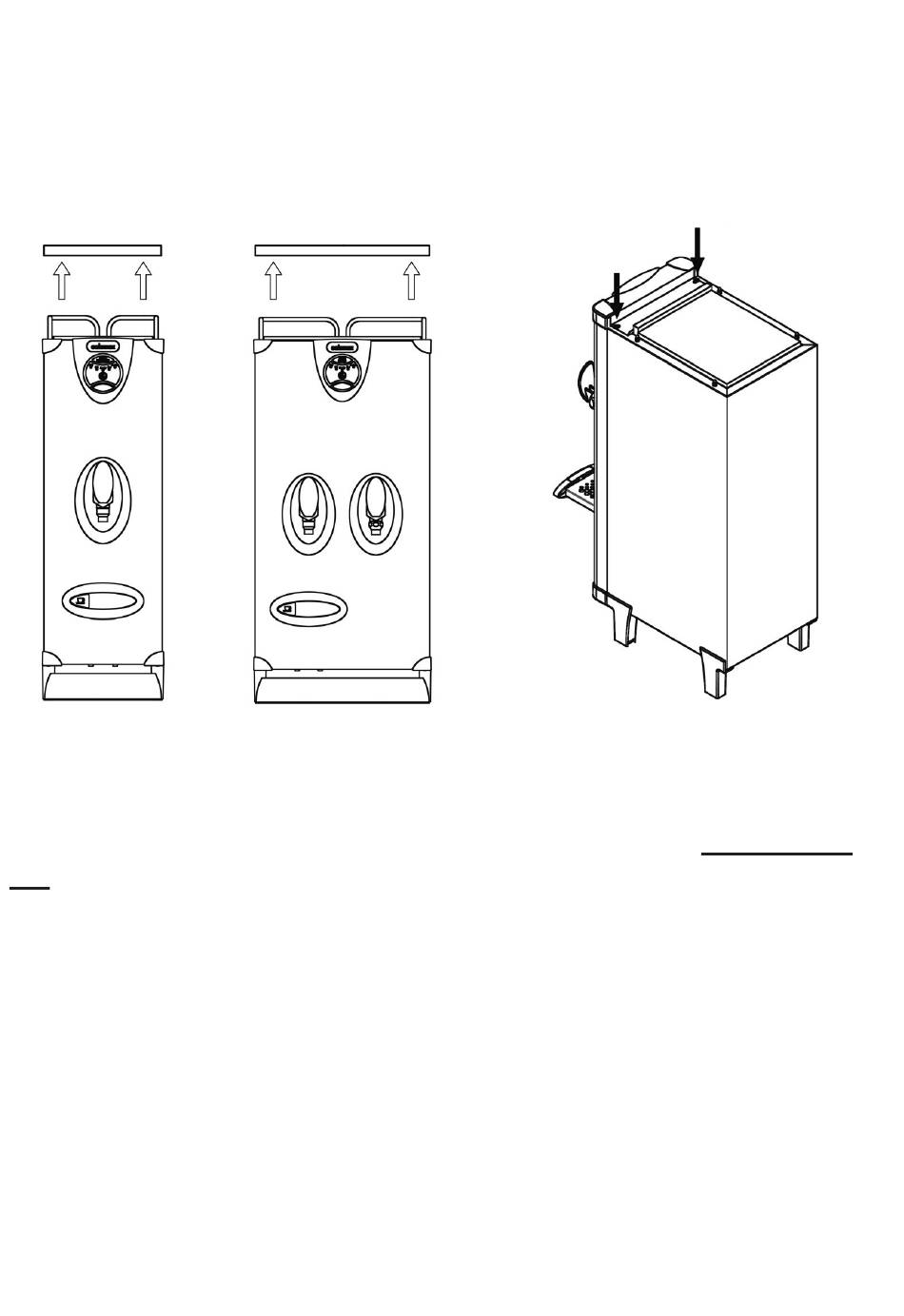

After removing the cup stand pull off the outercasing lid from its
mounting clips. Do not pull the cup rails as this may damage the lid.
Remove the top two panel mounting screws, the cover is fitted with
two more clips at the bottom of the panel which can be pulled off to
gain access to the internal workings of the boiler.

VENT / OVERFLOW

The vent / overflow pipe should be extended and laid with a continuous
fall, discharging to a safe and visible point via either of the two
options advised: 'Via the drip tray' or 'By-passing the drip tray',
both options are shown on the opposite page. The pipe should not be
directly connected to a closed waste, as taste problems may occur
and should never be allowed to become blocked or restricted.15mm
copper or 'Speedfit' pipe should be used.
If the machine is installed without the vent / overflow pipe being
extended as advised, any subsequent damage incurred will be the
responsibility of the installer. Further information, including diagrams,
can be found under the 'Installation Guide' section on our website.
Page 6
