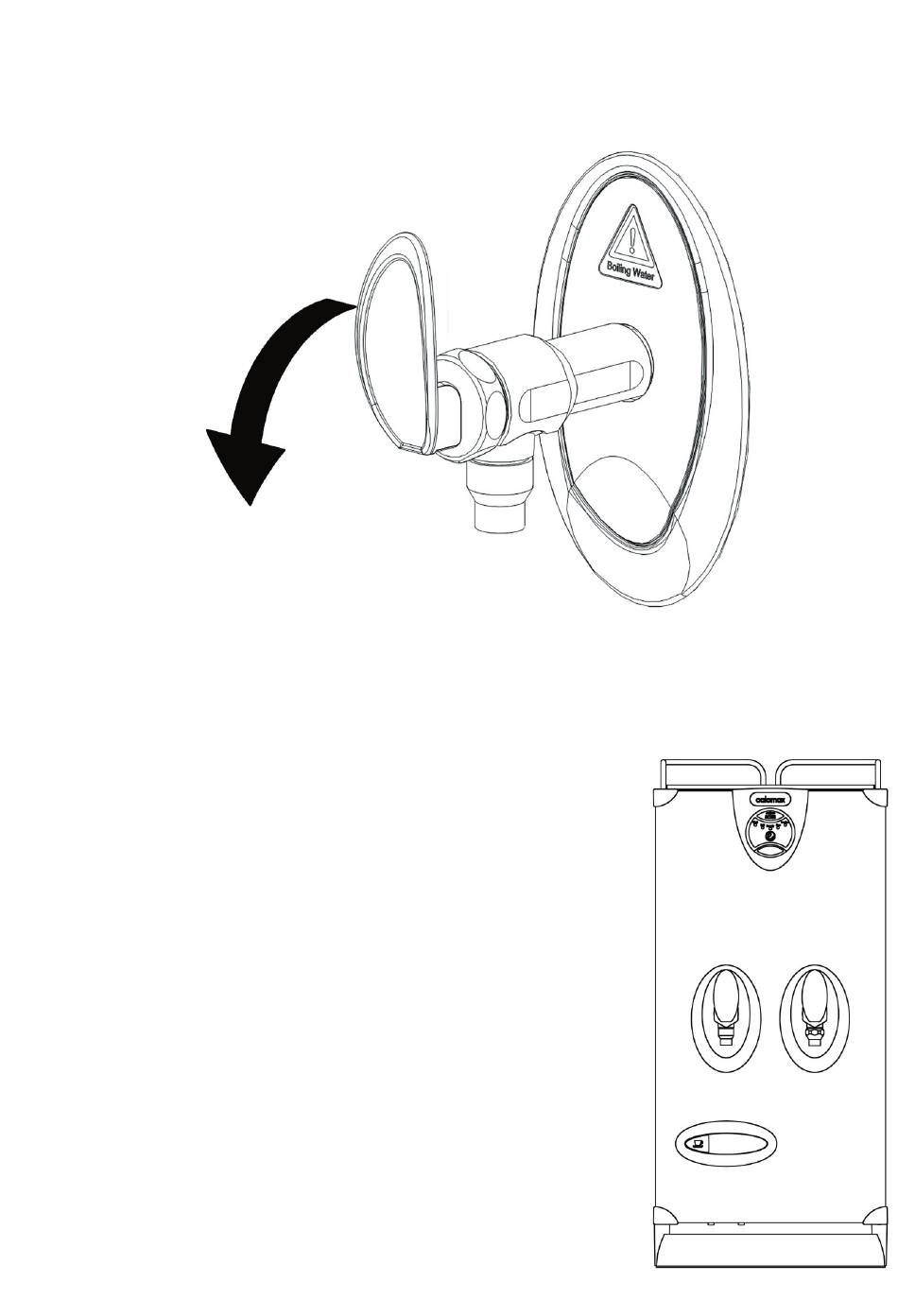

• To begin filling, pull the handle forward or push it backward;
hot water begins to flow. If the tap is opened fully forwards it
can be locked open (for filling large vessels). In this state the
boiler must never be left unattended.
• To stop filling, return the handle to the closed position.
• The HT3C20 and HT6C20 models have
two tap handles. The handle on the left
has the cup stand underneath the tap.
This is the side advised for filling cups
and mugs. The handle on the right has
a quick flow nozzle resulting in a faster
flow of water out of the tap. Calomax
advise that this side is used to fill up
larger vessels, not cups or mugs.
QUICK
SLOW
FLOW
FLOW
