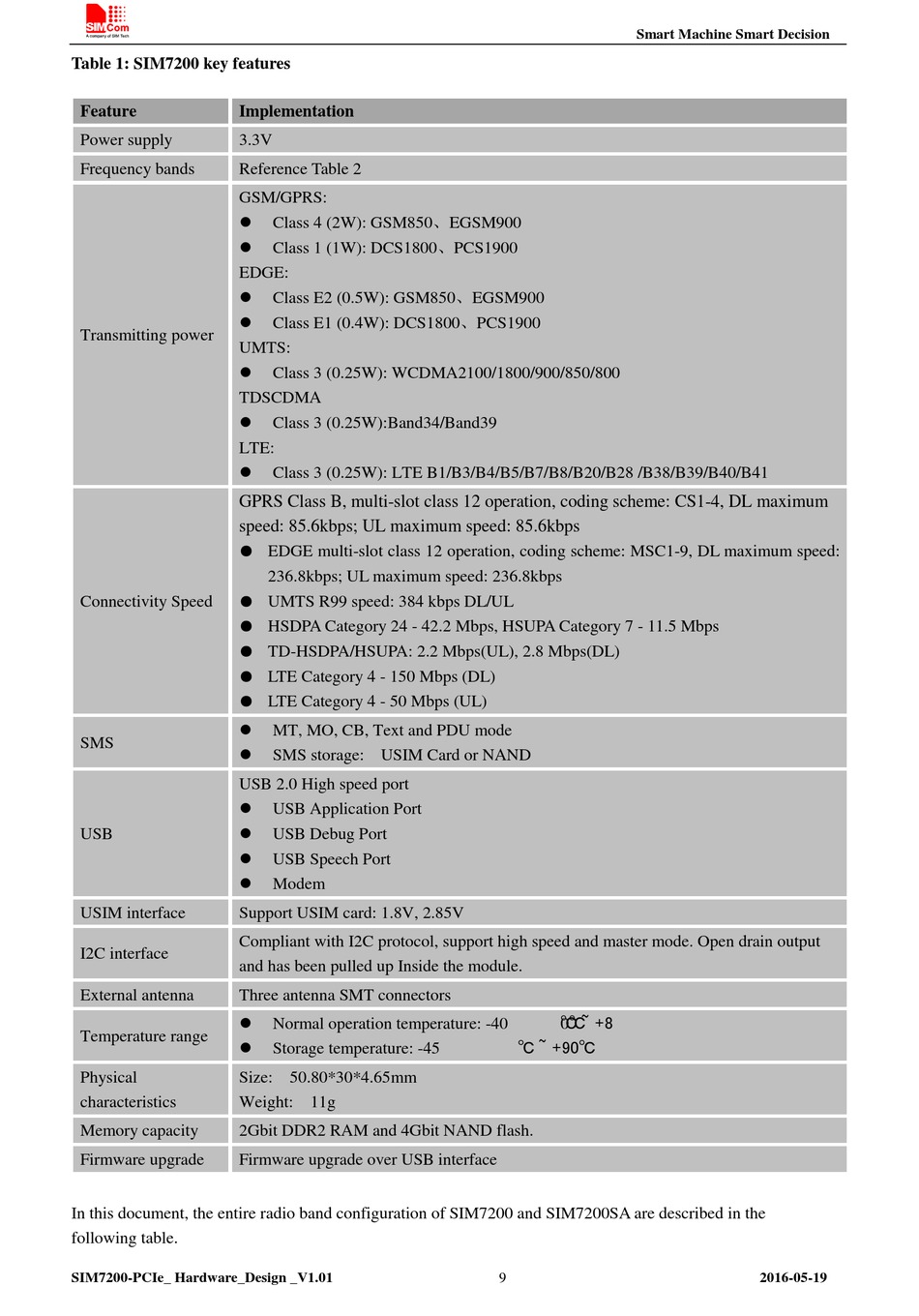

Table 1: SIM7200 key features

Feature Implementation
Power supply 3.3V
Frequency bands Reference Table 2
GSM/GPRS:


EDGE:


Transmitting power
UMTS:

TDSCDMA

LTE:

GPRS Class B, multi-slot class 12 operation, coding scheme: CS1-4, DL maximum
speed: 85.6kbps; UL maximum speed: 85.6kbps
●
Connectivity Speed ●
●
●
●
●

SMS

USB 2.0 High speed port


USB


USIM interface Support USIM card: 1.8V, 2.85V
Compliant with I2C protocol, support high speed and master mode. Open drain output
I2C interface
and has been pulled up Inside the module.
External antenna Three antenna SMT connectors

Temperature range

Physical Size: 50.80*30*4.65mm
characteristics Weight: 11g
Memory capacity 2Gbit DDR2 RAM and 4Gbit NAND flash.
Firmware upgrade Firmware upgrade over USB interface
In this document, the entire radio band configuration of SIM7200 and SIM7200SA are described in the
following table.
SIM7200-PCIe_ Hardware_Design _V1.01
Class 4 (2W): GSM850、EGSM900
Class 1 (1W): DCS1800、PCS1900
Class E2 (0.5W): GSM850、EGSM900
Class E1 (0.4W): DCS1800、PCS1900
Class 3 (0.25W): WCDMA2100/1800/900/850/800
Class 3 (0.25W):Band34/Band39
Class 3 (0.25W): LTE B1/B3/B4/B5/B7/B8/B20/B28 /B38/B39/B40/B41
EDGE multi-slot class 12 operation, coding scheme: MSC1-9, DL maximum speed:
236.8kbps; UL maximum speed: 236.8kbps
UMTS R99 speed: 384 kbps DL/UL
HSDPA Category 24 - 42.2 Mbps, HSUPA Category 7 - 11.5 Mbps
TD-HSDPA/HSUPA: 2.2 Mbps(UL), 2.8 Mbps(DL)
LTE Category 4 - 150 Mbps (DL)
LTE Category 4 - 50 Mbps (UL)
MT, MO, CB, Text and PDU mode
SMS storage: USIM Card or NAND
USB Application Port
USB Debug Port
USB Speech Port
Modem
Normal operation temperature: -40
Storage temperature: -45
Smart Machine Smart Decision
℃ ~ +8
0℃
℃ ~ +90℃
