Mini PCI Express Connector and Latch
SIM7200 should equip to the edge card connector and lock down by the Latch, this chapter takes the Molex
67910-0002 and 48099-4000 as an example.

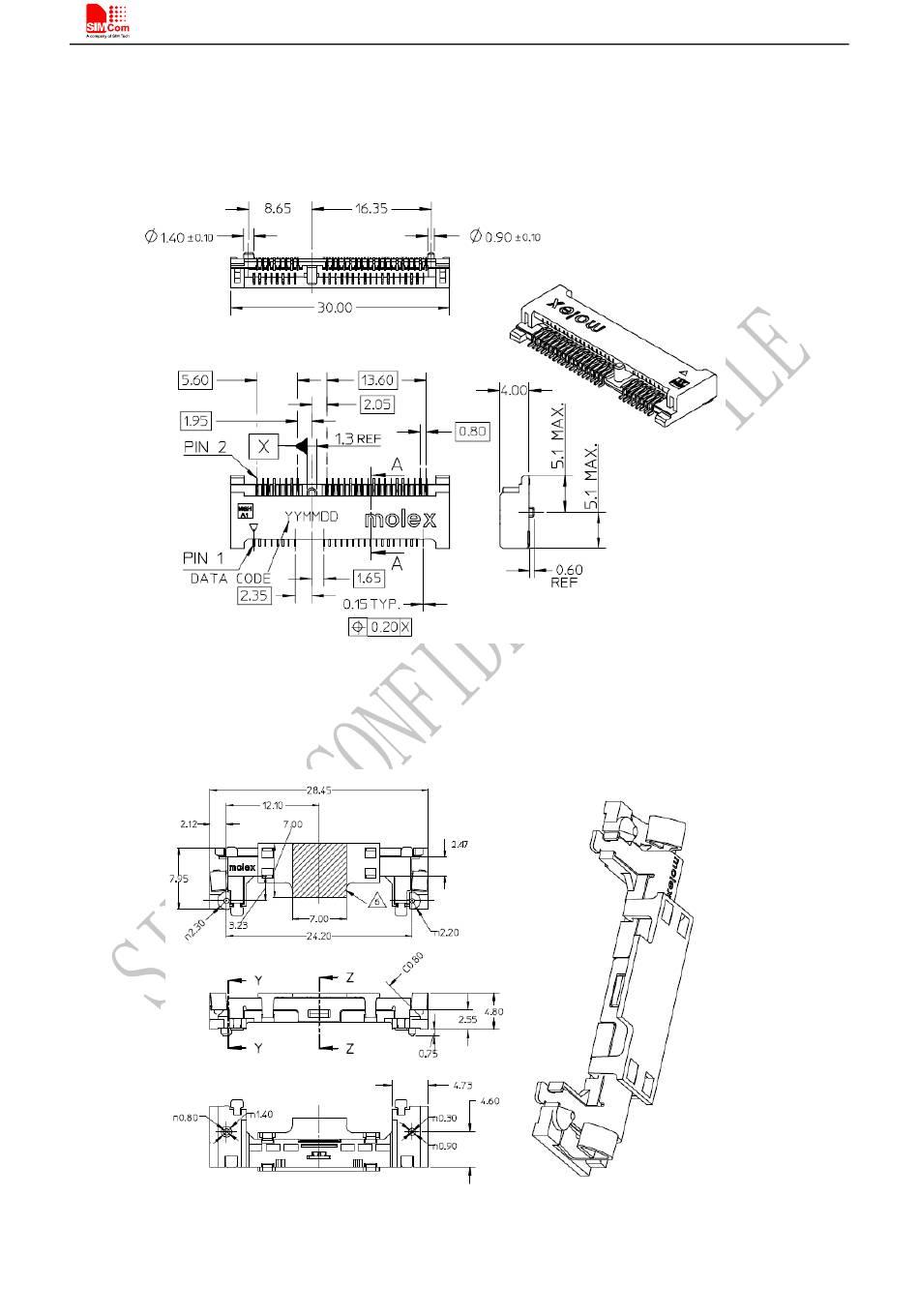

The figure 6 shows the PCI Express connector dimensions:
Figure 6: Dimensions of PCI Express connector
The figure 7 shows the Latch for the edge card connector:
Figure 7: Dimensions of Latch for PCI Express connector
SIM7200-PCIe_ Hardware_Design _V1.01
18
2016-05-19
