Removing SIM7200 from main board
Step 1: Disconnect the antenna cables from SIM7200 cables.

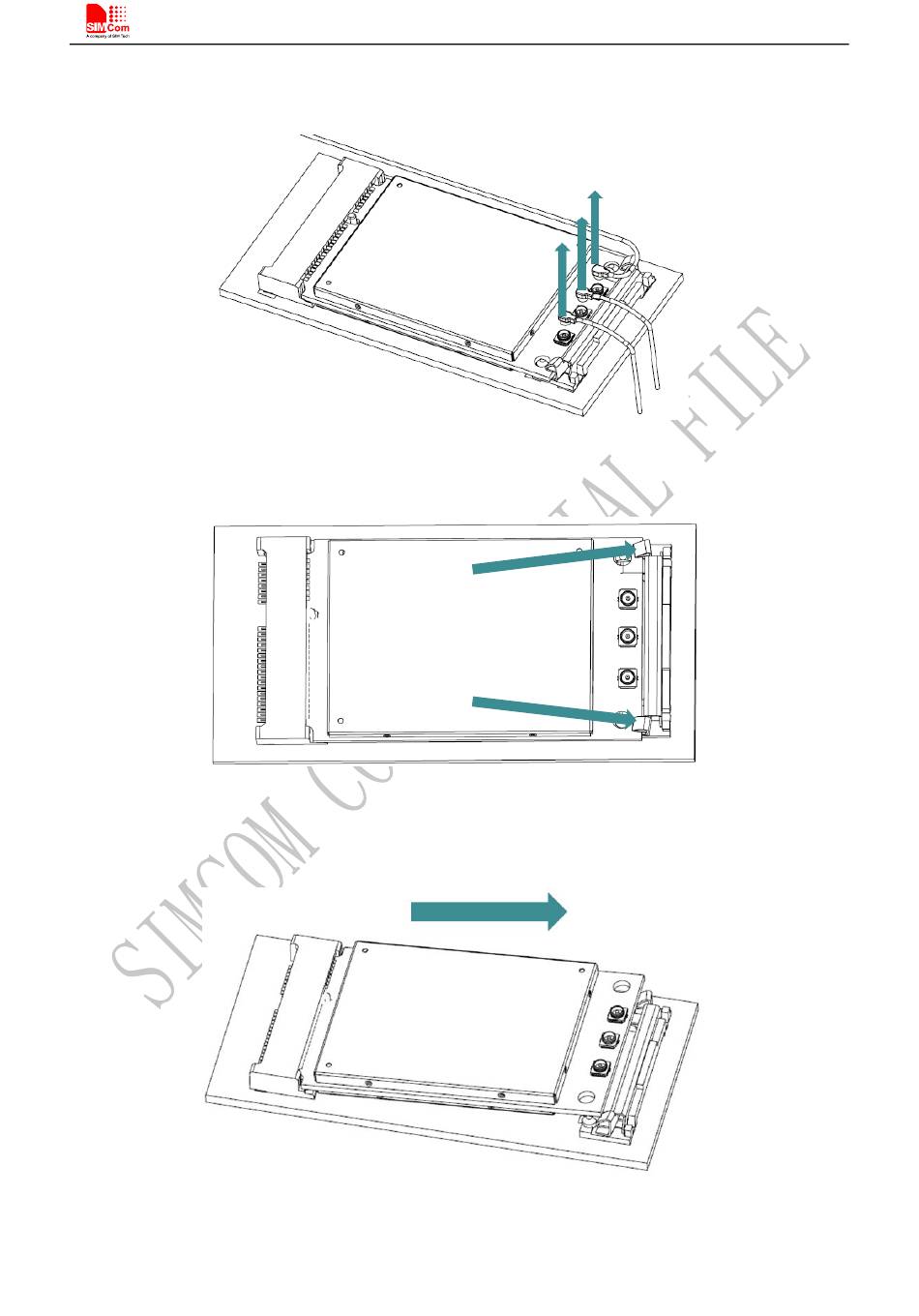

Figure 11: Step 1 of removing SIM7200 from the main board
Step 2: Push the two clips to release SIM7200 from the slot.
Figure 12: Step 2 of removing SIM7200 from the main board
Step 3: Push SIM7200 from the direction as following figure shows.
Figure 13: Step 3 of removing SIM7200 from the main board
