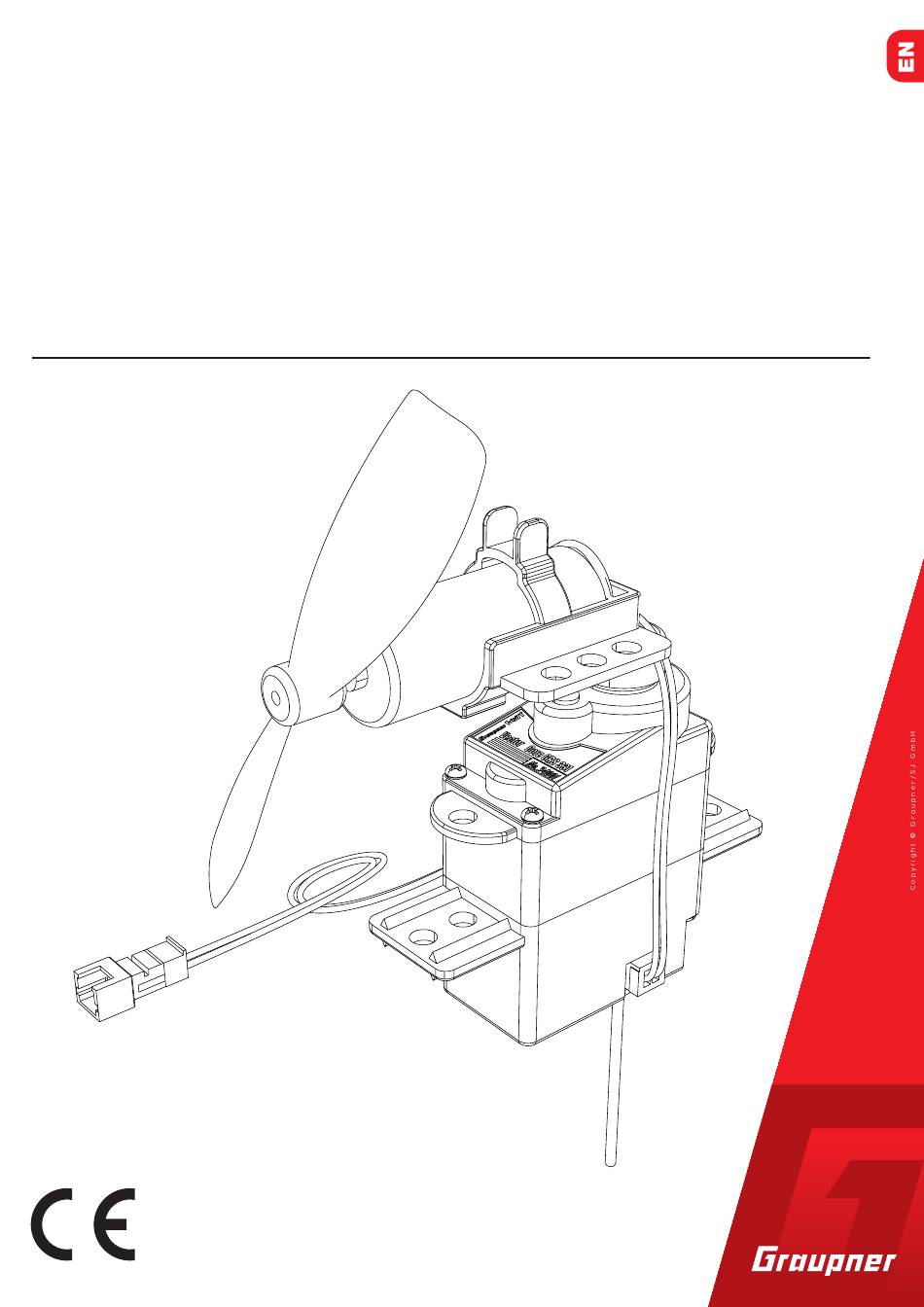

- Page 1 Manual Vector Unit / Vector Unit Extreme 2 channel HoTT 2,4 GHz receiver/servo/speed controller unit No. 34002 No. 34003...
-
Page 3: Table Of Contents
Index Introduction ................. 4 Service Center ..............4 Intended Use ............... 5 Package Content - Unit No.34002 ........5 Package Content - Unit No.34003 ........5 Technical Data ..............6 Symbols Explication ............7 Safety Notes ................ 7 Vector Unit Description ............9 Preparation Before Use ............ -
Page 4: Introduction
Introduction Thank you very much for purchasing the Graupner Vector unit. This manual is valid for unit Numbers 34002 and 34003. Package content will change depending on the version. Read through this entire manual before use. Graupner continu- ously enhances and updates its products and reserves the right to change its products, technology, user manuals and equip- ment at any time without prior notice. -
Page 5: Intended Use
Read through this entire manual before you attempt to install or use the transmitter. Graupner continuously enhances and updates its products and reserves the right to change its products, technology, user man- uals and equipment at any time without prior notice. -
Page 6: Technical Data
Technical Data Frequency band 2.4 to 2.4835 GHz Motor unit single approx. 6.8 g Modulation Motor unit double FHSS approx. 13.7 g 14° to 130°F (-10°C to 55°C) Temperature range Current consumption max. 2A continuous current Antenna Wire 30 mm Stall torque/3.7 V approx 5 Ncm Operating voltage Speed/3.7C approx. -
Page 7: Symbols Explication
Symbols explication Always observe the information indicated by this warning sign. Particularly those which are additionally marked with the follow- ing signal words: WARNING indicates the potential for serious injury CAUTION indicates possibility of lighter injuries. This icon indicates information that may be helpful in diagnosing or troubleshooting, especially when accompanied by the follow- ing signal words: Note indicates potential malfunctions. - Page 8 • Make sure that all of the plug-in connections are tight. When disconnecting the plug-in connections, do not pull the cables. • For additional questions or support, contact the Graupner USA Service Center, or an experienced user. WARNING Safety notes during the use Rotating propellers can cause injury.
-
Page 9: Vector Unit Description
Vector Unit description Vector Core, Servo DES 131 with integrated receiver and speed controller Battery connection cable Drive gear to install a motor unit or a servo lever Motor connection socket max. 2A continuous current Receiver antenna Fixture arms + cable (red) - cable (black) Motor mount fixing screw, flat-head screw 1.2 x 3 mm 10 Motor mount... -
Page 10: Preparation Before Use
Preparation Before Use The Vector unit should only be powered by a 1S LiPo battery Power Pack (No. 78101.1). The input voltage of the drive battery is monitored during flight through the HoTT transmitter telemetry function. If the voltage drops under 3.2 V, the HoTT transmitter will emit a warning alarm. -
Page 11: Charging The Battery
Charging the Battery Only charge the battery with the Slim 150 Charger included in the package contents. For battery safety, refer to the charger’s manual. CAUTION To avoid fire risk or damage to the battery, never use a non spe- cific charger. -
Page 12: Connecting The Motor Unit
Connecting the Motor Unit Only use recommended motor units. The connectors are reverse polarity protected: note the small chamfers on the sides of the plug. Never use force – the connec- tors should engage easily. Attention If the connection system is forcibly connected in the wrong direction, the motor connection cable plug will be irreparably damaged. -
Page 13: Successful Binding Process
Successful Binding Process If the binding process was successful, the transmitter will imme- diately begin controlling the unit. Unsuccessful Binding Process If the binding process was unsuccessful, move the transmitter 3 feet (1 meter) from the receiver, and repeat the binding process as needed until a successful bind is achieved. - Page 14 No. 34001.30 No. 34001.31 14 / 20 34001_HB_V1...
- Page 15 CCW 1 CCW 2 1 CCW 2 2 CCW 1 2 CW 1 CW 15 / 20 34001_HB_V1...
-
Page 16: Free Mixers
Free Mixers Note Make sure previously programmed mixer functions (in the “Wing mixers” or “Free mixers” menu of the HoTT transmitter) do not over- lap with these menu options. FREE MIXER < > >MIXER: MIXER: FROM CHANNEL: Up to five mixers can be contemporaneously programmed. TO CHANNEL: Switch between each mixer in the MIXER line of the menu TRIM:... -
Page 17: Installation
Installation While installing the Vector unit into a glider or model, note: 1. Mark the glider or model's center of gravity and install bat- tery and unit accordingly. This allows the model to fly prop- erly by itself. 2. For a pulling motor, install the Vector unit tilted 1-2° upwards. For a pushing motor, install the Vector unit 1-2°... -
Page 18: Flying Tips
• Turning in the torque direction is easier as less travel is required. • Turning against the torque direction is harder as more travel is required. Declaration of conformity Vector Unit GRS 331 Graupner/SJ declares that the product is conform to EU norms. 18 / 20 34001_HB_V1... - Page 19 NOTES 19 / 20 34001_HB_V1...
- Page 20 20 / 20 34001_HB_V1...
