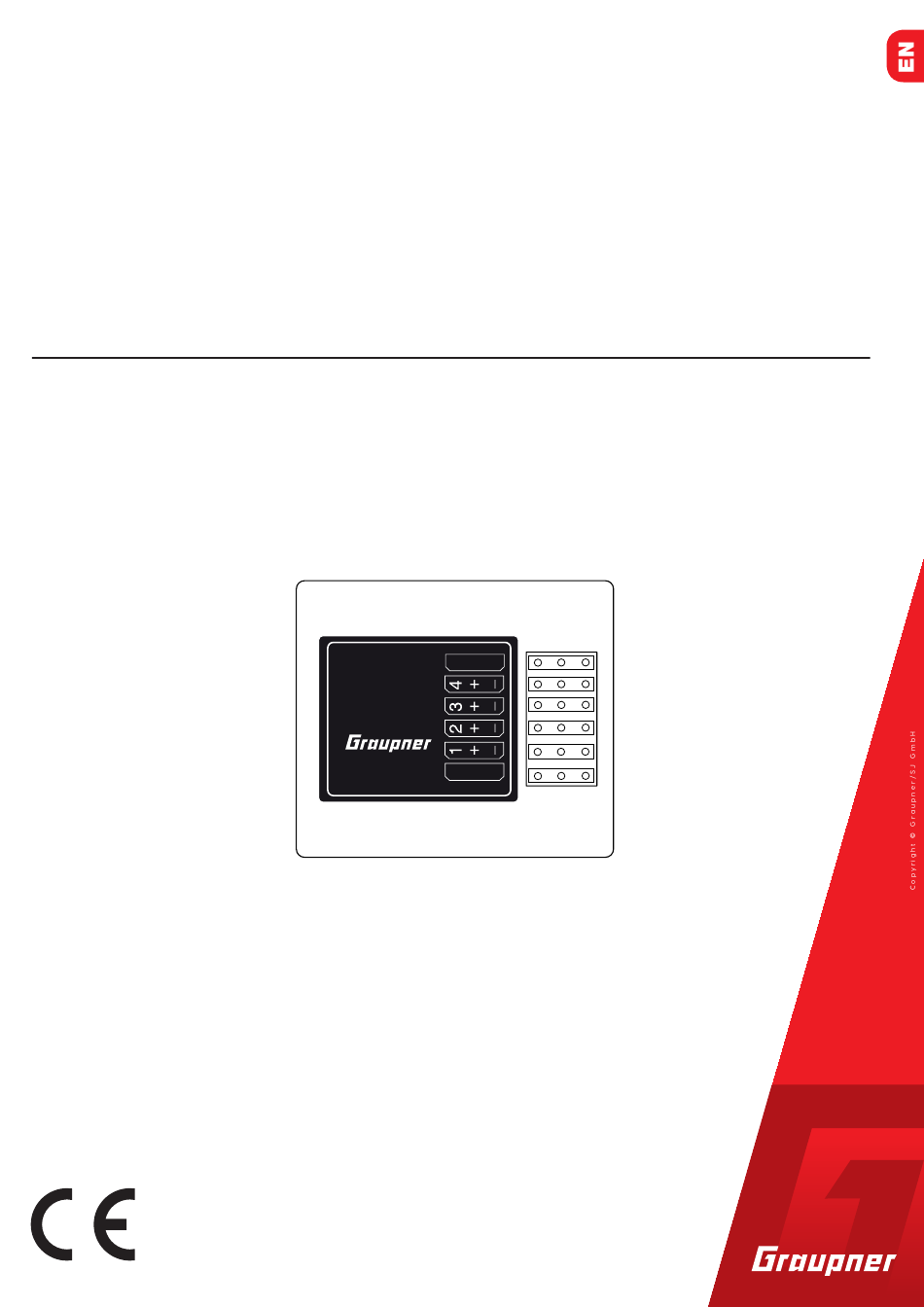

- Page 1 Manual 4 channel proportional module suitable for Multichannel No. 3973 4 Kanal FS-Impuls Propmodul Fail-safe...
-
Page 3: Table Of Contents
Index Personal notes ..............4 Introduction ................. 5 Service Centre ..............5 Intended use ..............6 Package content ..............6 Declaration of conformity ..........6 Technical data ..............7 Symbols explication ............8 Safety notes ................ 8 Installing the Module ............9 Setting the electric connections ........ -
Page 4: Personal Notes
Personal notes... -
Page 5: Introduction
Due to technical changes, the information may be changed in this manual without prior notice. Be always updated by check- ing periodically on our website, www.graupner.de to be always updated with the products and firmware. This product complies with national and European legal require- ments. -
Page 6: Intended Use
1 patch cable 10 cm Operating instructions 1 Coding bridge 4 Distance sleeves Declaration of conformity No. 3973 4 channel proportional module Graupner/SJ declares that the product is conform to EU norms. DIN EN 55014-1 6 / 18 3973_MP_V1... -
Page 7: Technical Data
The technical data of the optional receiver are available in the man- ual included in the receiver package content. Description Graupner transmitters mc-16, mc-20, mc-26, mc-28 and mc-32 offer the possibility to connect up to 4 independent servos to one transmitter channel. -
Page 8: Symbols Explication
Symbols explication Always observe the information indicated by this warning sign. Particularly those which are additionally marked with the CAU- TION or WARNING. The signal word WARNING indicates the poten- tial for serious injury, the signal word CAUTION indicates possibil- ity of lighter injuries. -
Page 9: Installing The Module
The 4 channel proportional module has been developed for use in RC models and it should only be used for the previewed scope. Please note that the module should only be used within the indi- cated limit values (see technical data). Use and store the unit in a dry environment only. -
Page 10: Setting The Electric Connections
Setting the electric connections The module consumes so few current that you can connect it through the included patch cable directly to the multichannel output of the receiver. You can connect servos with low power consumption directly to the module, but only if the total power consumption of all the connected functions is lower than 3,0 A and only if the receiver voltage is enough (see switch plan). - Page 11 Anschluss eines Servos an Kanal 4 ( Hohe Belastung ) Connection of servo to channel 4 (high consumption) 4 Kanal Servo Receiver Propmodul X1 - C6 X1 - 5C X1 - B6 X1 - 5B X1 - A6 X1 - 5A Patchkabel Servokabel V-/GND...
-
Page 12: Occupation Of The Pin Lines
Dimensions of the plate with hole distance No. 3973 FS Impulse Servo Servo Servo Servo Failsafe Occupation of the pin lines: FS-Impulse Servo 4 Servo 3 Servo 2 Servo 1 Fail Safe Low Speed Attention: The tabular representation of the pin occupation is aligned similarly to the plate occupations - GND is always located in the outer side of the plate (excluded X1 / 1A). -
Page 13: Programming Hott Transmitter
Programming the control in HoTT transmitter To allow the transmitter to transmit the data correctly, you still have to set one option in your transmitter. Enter the "Telemetry" menu, open the "Settings & view" line and move through the touch pads to the "CH OUT TYPE" line. Here please select the "SAME"... - Page 14 Programming the switch assignment of HoTT transmitter Here activate both multichannels as multichannel, while the sec- ond multichannel has been assigned to the channel 6, with which we will proceed in the description. Now move the cursor to the right field, select the "MULTICH 4CH"...
- Page 15 Programming the switch assignment of HoTT transmitter Soon after you will have to actuate the desired control (potenti- ometer). So the control is assigned to the channel. After actuating the slide control SL1 it looks like this. Use the same process to assign the other controls in the trans- mitter.
-
Page 16: Fail-Safe Function
The firmware in the 4 channel proportional module has been adjusted and developed specifically for Graupner HoTT 2,4 GHz systems. If you have an older Graupner/JR transmitter (40 MHz or IFS) and you have any questions, please feel free to con- tact our Hotline: service@graupner.de or +49 (7021) 722-130... -
Page 17: Notes On Environmental Protection
The cur- rent version can be found on the Internet at www.graupner.de the relevant product page. In addition, the company Graupner has no responsibility or liability for any errors or inaccuracies that may appear in construction or operation manuals. - Page 18 18 / 18 3973_MP_V1...
