This manual is part of that product. It contains important informa- tion concerning operation and handling. Keep these instructions for future reference and give it to third person in case you gave the pro- duct. Service centre Graupner Central Service Servicehotline Graupner GmbH (+49) (0)7021/722-130 Henriettenstraße 96... -
Page 6: Intended Use
For any improper use no guarantee or liability is assumed. Read through this entire manual before you attempt to install or use the Kingbus Central Module. Graupner/SJ constantly works on the development of all products; we reserve the right to change the item, its technology and equip- ment. -
Page 7: Technical Data
Attachment in the model glue pad (not included) Note You will find the technical description of the required Kingbus and Adapter on www.graupner.de directly at the product page. Characteristics Parking light Dimmed headlights only with parking light High beam fixed position with dipped beam. -
Page 8: Symbols Explication
Symbol description Always observe the information indicated by this warning sign. Par- ticularly those which are additionally marked with the words CAU- TION or WARNING. The signal word WARNING indicates the potential for serious injury, the signal word CAUTION indicates possibility of lighter injuries. -
Page 9: Notes On Environmental Protection
In your own interest please protect the model from dust, dirty and humidity! Warranty certificate The Graupner, Henriettenstrassee 96, 73230 Kirchheim/Teck grants from the date of purchase of this product for a period of 24 months. The warranty applies only to the material or operational defects already existing when you purchased the item. -
Page 10: Declaration Of Conformity

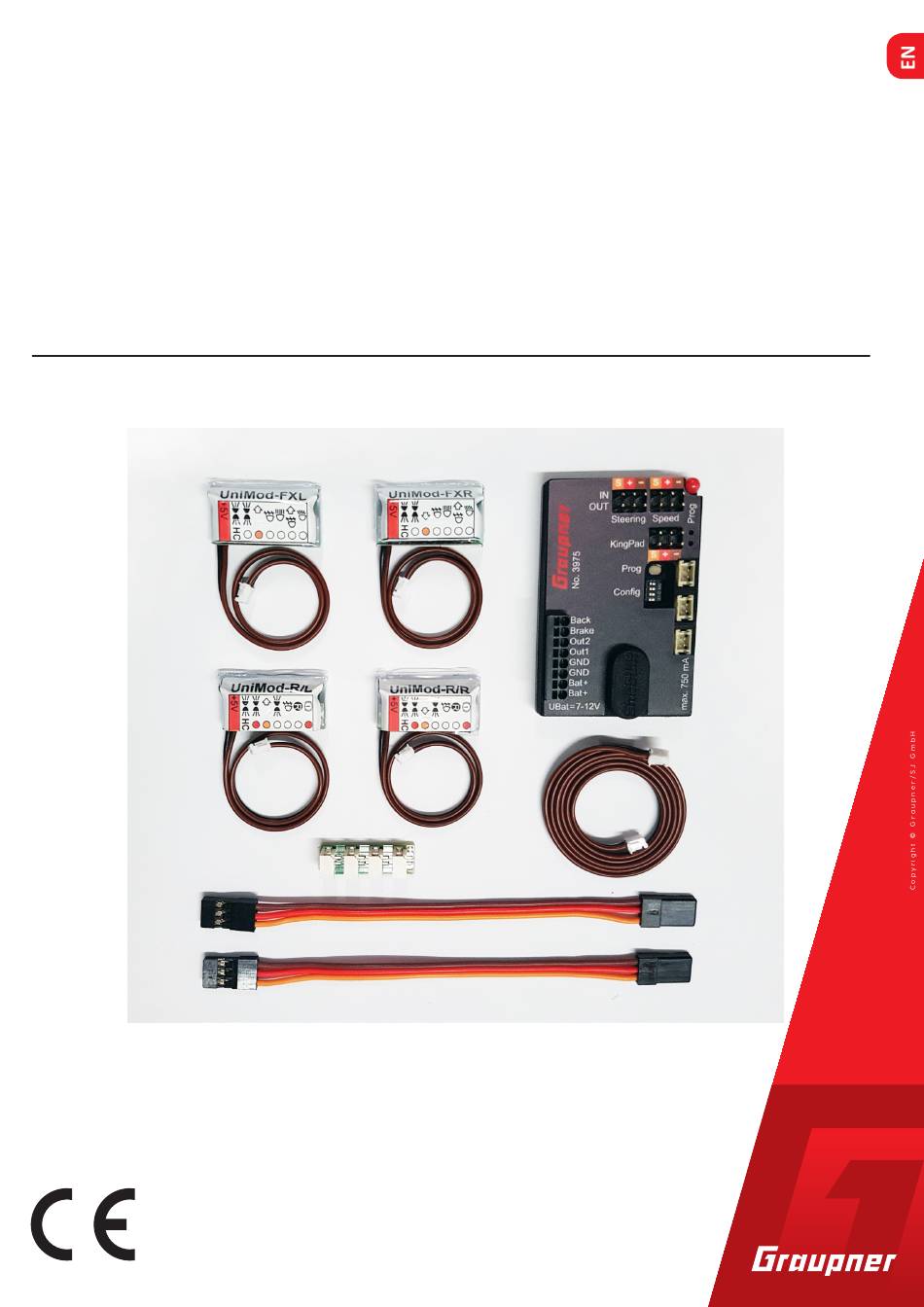

Declaration of conformity Kingbus Central Module declares that the product is conform to EU norms. Graupner/SJ WEEE-Reg.-Nr.: DE 42466037 Product description The Kingbus is a two-wire bus system that allows multiple light fun- ctions through just two wires. The power supply of the light modu- les is also ensured via these two wires. -
Page 11: Power Supply Voltage
Supply voltage Please note that the KBZM may only be supplied with filtered DC voltage from a power supply unit or with a battery / rechargeable battery! Connection terminals The spring-loaded terminals can be operated with the supplied needle. ... -
Page 12: Light Modules
tion must be made. For this purpose, the ground terminals GND can be used. Light modules Install your light modules in the model and connect them to one of the three Kingbus outputs on the KBCM. On a bus it does not matter how and where you connect which module! The extension cable is suitable for wiring the rear lights. -
Page 13: Demo Mode
Connection example: all-round light bars Rotating light: black Parking light: white Plus pole: red Demo mode The Kingbus central module can play a demonstration of the light controls by briefly tapping the Prog button (less than a second). This can be used for example to make the model more visible at exhibi- tions. -
Page 14: Legend Universal Modules
Legend universal modules The circular dot next to each icon indicates the color of the LED to be connected. It can be connected per output 1 LED directly (without series resistor)! If several LEDs are connected to a normal output, they will not light up so much. -
Page 15: Wiring Diagram Universal Modules
Wiring diagram universal modules Anschlussstifte, Minuspol kurz, Pluspol lang Symbol für LED in Verdrahtungsplan Symbol für Widerstand in Verdrahtungsplan Konkret: 1 K-Ohm (1000 Ohm) 15 / 16 3975_MP_V1...
