5.2.1 Accessories

IP21/NEMA1 enclosure kits for the IP20 filters are available and
listed here:
Danfoss part number
130B3274
130B3275
130B3276
130B3277
130B3278
5 5
130B3279
130B3281
130B3282
The kit consists of two parts:
A top plate that prevents vertically falling drops of water and
dirt from entering the filter and a terminal cover ensuring
touch safe terminals. The terminal cover is prepared for instal-
lation of a contactor for capacitor disconnect.
22
AHF005/010 Design Guide

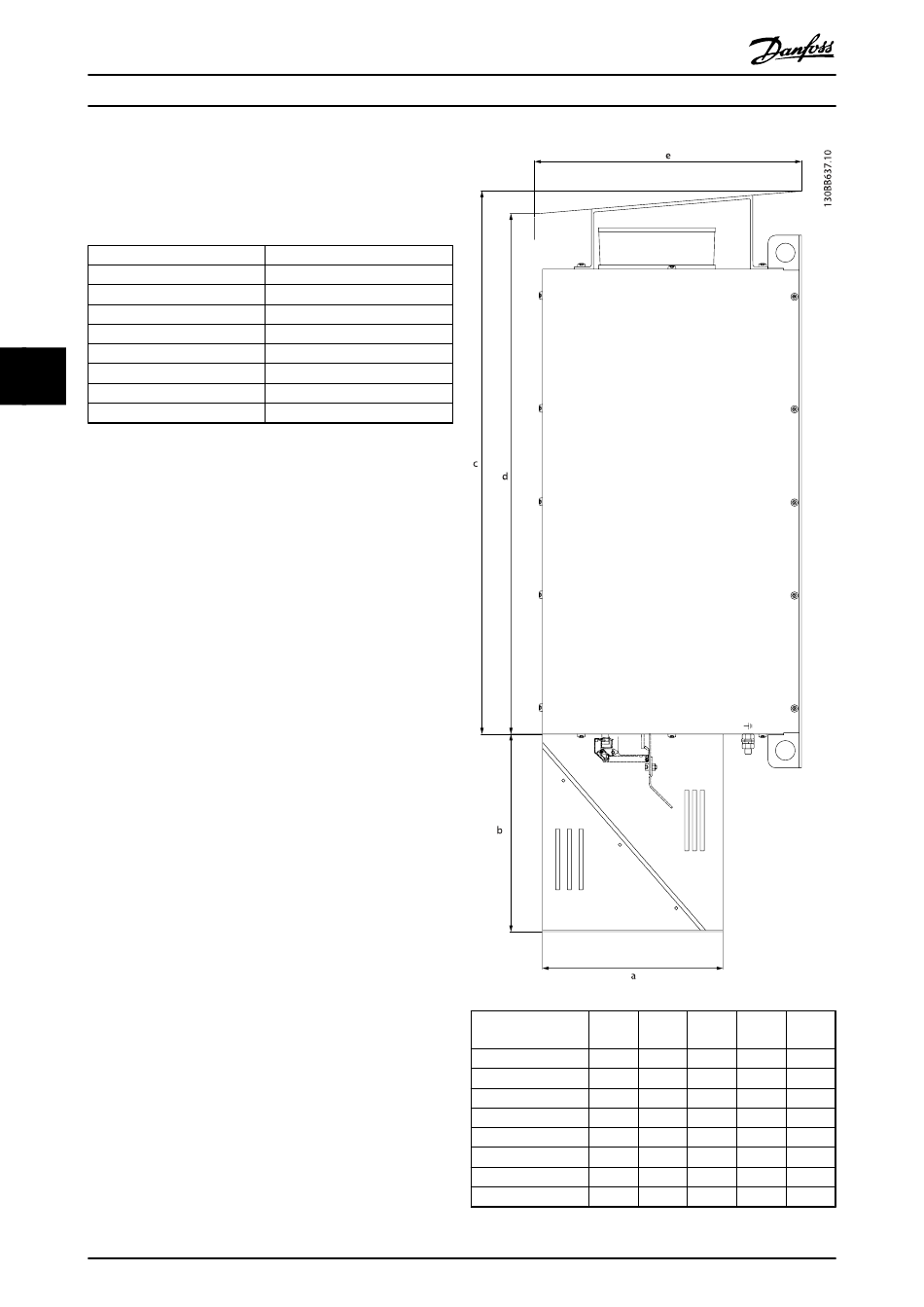

IP21/NEMA1 kit for IP20 enclosure
X1
X2
X3
X4
X5
X6
X7
X8
®
MG.80.C3.02 - VLT is a registered Danfoss trademark
Enclosure type a b
(mm) (mm)
X1 120 160
X2 190 180
X3 145 210
X4 230 230
X5 230 250
X6 300 270
X7 300 320
X8 400 350
c d e
(mm) (mm) (mm)
329.5 344.5 215.5
433.5 448.5 257.5
543.5 558.5 252
573.5 558.5 343
681.5 696.5 343
681.5 696.5 410
796.5 811.5 458.5
796.5 811.5 553
