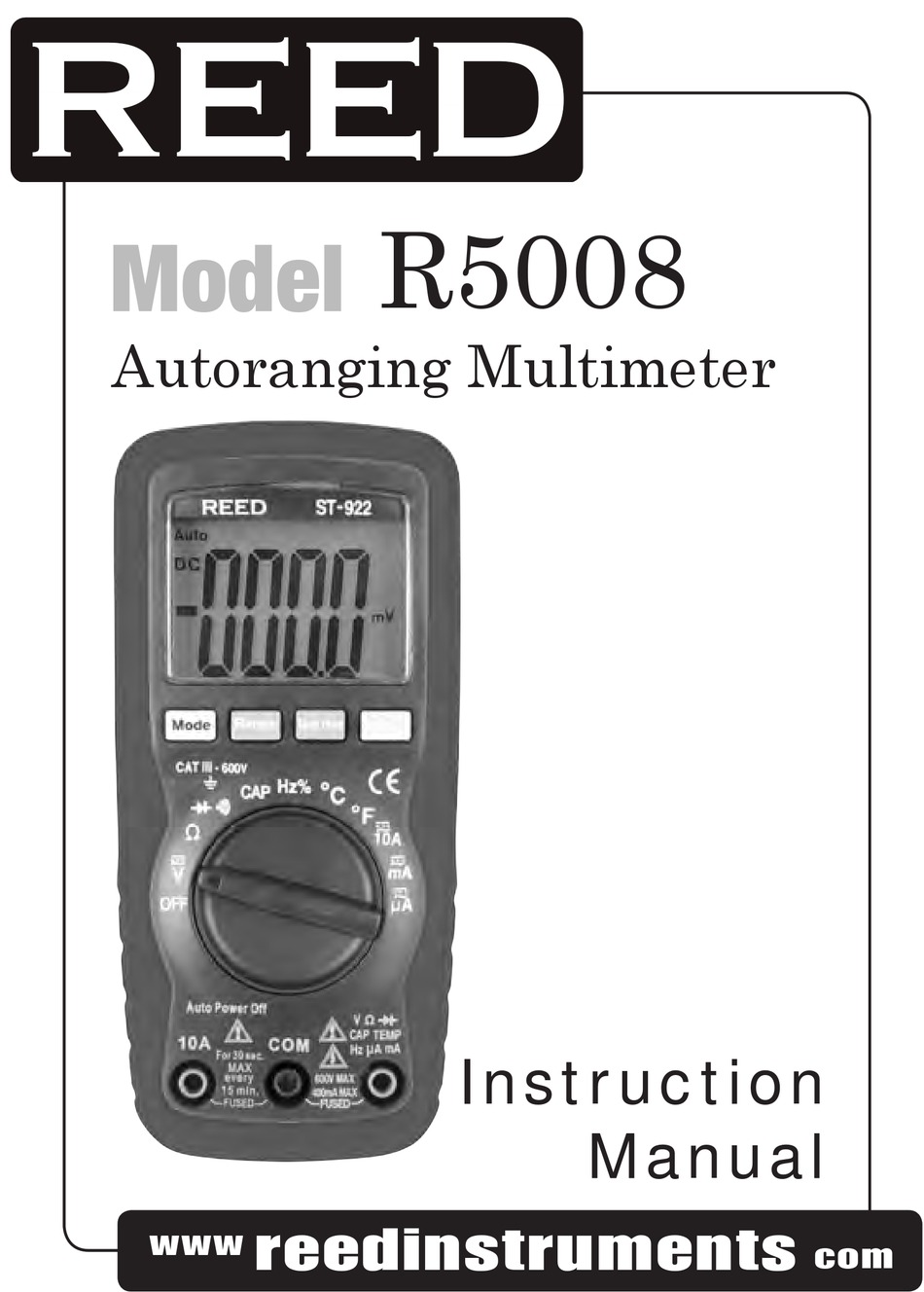

- Page 1 Rich Black - 20/20/20/100 R5008 Model Autoranging Multimeter Only if you REALLY need them: Instruction Manual reedinstruments...
-
Page 2: Table Of Contents
Table of Contents Safety ...................... 2-3 Features .......................4 Instrument Decription ..................4 Specifications ..................5-9 Operating Instructions ................9-11 Safety The following safety information must be observed to insure maximum personal safety during the operation of this meter: • Do not use the meter if the meter or test leads look damaged, or if you suspect that the meter is not operating properly •... -
Page 3: Safety
Never apply voltage or current to the meter that exceeds the specified maximum: Input Limits Function Maximum Input V DC or V AC 600V DC, 600V AC mA DC/AC 400mA DC/AC 10A DC/AC (30 second max A DC/AC every 15 minutes) Frequency, Resistance, Capacitance, 250V DC/AC Duty Cycle, Diode Test, Continuity... -
Page 4: Features
Features • Class 2, double insulation • CAT. III 600V and UL approved • 4000-digit LCD display with function indication • Automatic, (-) negative polarity indication • “OL” Overrange indication • Low battery indication • Measurement rate of 2 times per second •... -
Page 5: Specifications
Specifications Technical Safety Rating: Complies with EN61010-1, Cat. III 600V Insulation: Class 2, Double insulation Display: 4000 digit LCD Polarity: Automatic, (-) negative polarity indication Overrange: “OL” mark indication Low Battery Indication: The “BAT” is displayed when the battery voltage drops below the operating level Measurement Rate: 2 times per second, nominal... - Page 6 AC Voltage (Auto-ranging except 400mV) Range Resolution Accuracy 400.0mV 0.1mV ±1.5%of rdg ±15 dgts 4.000V ±1.2% of rdg ±3 dgts 40.00V 10mV ±1.5% of rdg ±3 dgts 400.0V 100mV 600V ±2.0% of rdg ±4 dgts Input Impedance: 7.8MΩ Frequency Range: 50 to 400Hz Maximum Input: 600V DC or 600V AC RMS DC Current (Auto-ranging for uA and mA) Range...
- Page 7 AC Current (Auto-ranging for uA and mA) Range Resolution Accuracy 400.0uA 0.1uA V1.5% of rdg ±5 dgts 4000uA 40.00mA 10uA ±1.8% of rdg ±5 dgts 400.0mA 100uA 10mA ±3.0% of rdg ±7 dgts Overload Protection: 0.5A / 250V and 10A / 250V Fuse Frequency Range: 50 to 400 Hz Maximum Input: 400mA DC or 400mA AC RMS on uA / mA ranges, 10A DC or AC RMS on 10A range...
- Page 8 Frequency (Auto-ranging) Range Resolution Accuracy 9.999Hz 0.001Hz ±1.5% of rdg ±5 dgts 99.99Hz 0.01Hz 999.9Hz 0.1Hz 9.999kHz 99.99kHz 10Hz ±1.2% of rdg ±3 dgts 999.9kHz 100Hz 9.999MHz 1kHz ±1.5% of rdg ±4 dgts Sensitivity: >0.5V RMS while ≤1MHz; >3V RMS while >1MHz Overload Protection: 250V DC or AC RMS Duty Cycle Range...
-
Page 9: Operating Instructions
Diode Test Test current Resolution Accuracy 0.3mA typical 1 mV ±10% of rdg ±5 dgts Open Circuit Voltage: 1.5V DC typical Overload Protection: 250V DC or AC RMS Audible Continuity Audible Threshold: Less than 150Ω; Test current: <0.3mA Overload Protection: 250V DC or AC RMS Operating Instructions WARNING: Risk Of Electrocution! High-voltage circuits, both AC and DC, are very dangerous and should... -
Page 10: Operating Instructions
MODE Button Press the MODE button to switch between Diode/Continuity, DC/AC and Hz/%Duty for the respected function RANGE Button When the meter is first turned on, it automatically goes into AutoRanging. This automatically selects the best range for the measurements being made, and is generally the best mode for most measurements. -
Page 11: Dc Voltage Measurement
DC Voltage Measurement CAUTION: Do not measure DC voltages if a motor on the circuit is being switched ON or OFF. Large voltage surges may occur that can damage the meter. 1. Set the function switch to the V DC position (“mV” will appear in the display). - Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 4 Blue Yellow - 0/27/100/0 3 Yellow Red - 10/100/100/5 ________________________________________________ 5 Red Yellow - 0/27/100/0 3 Yellow Blue - 100/80/30/5 4 Blue reedinstruments Rich Black -...
