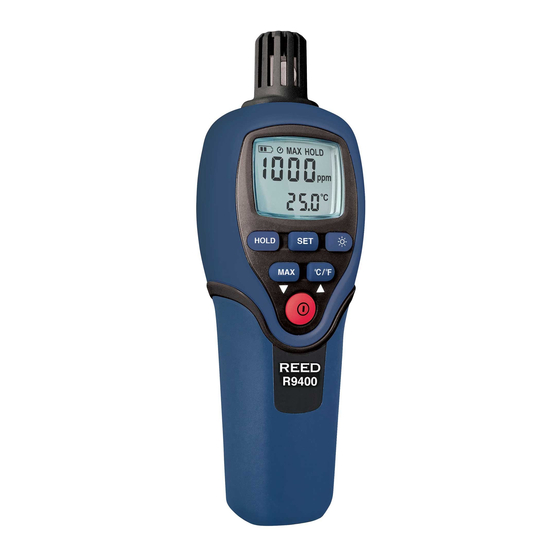

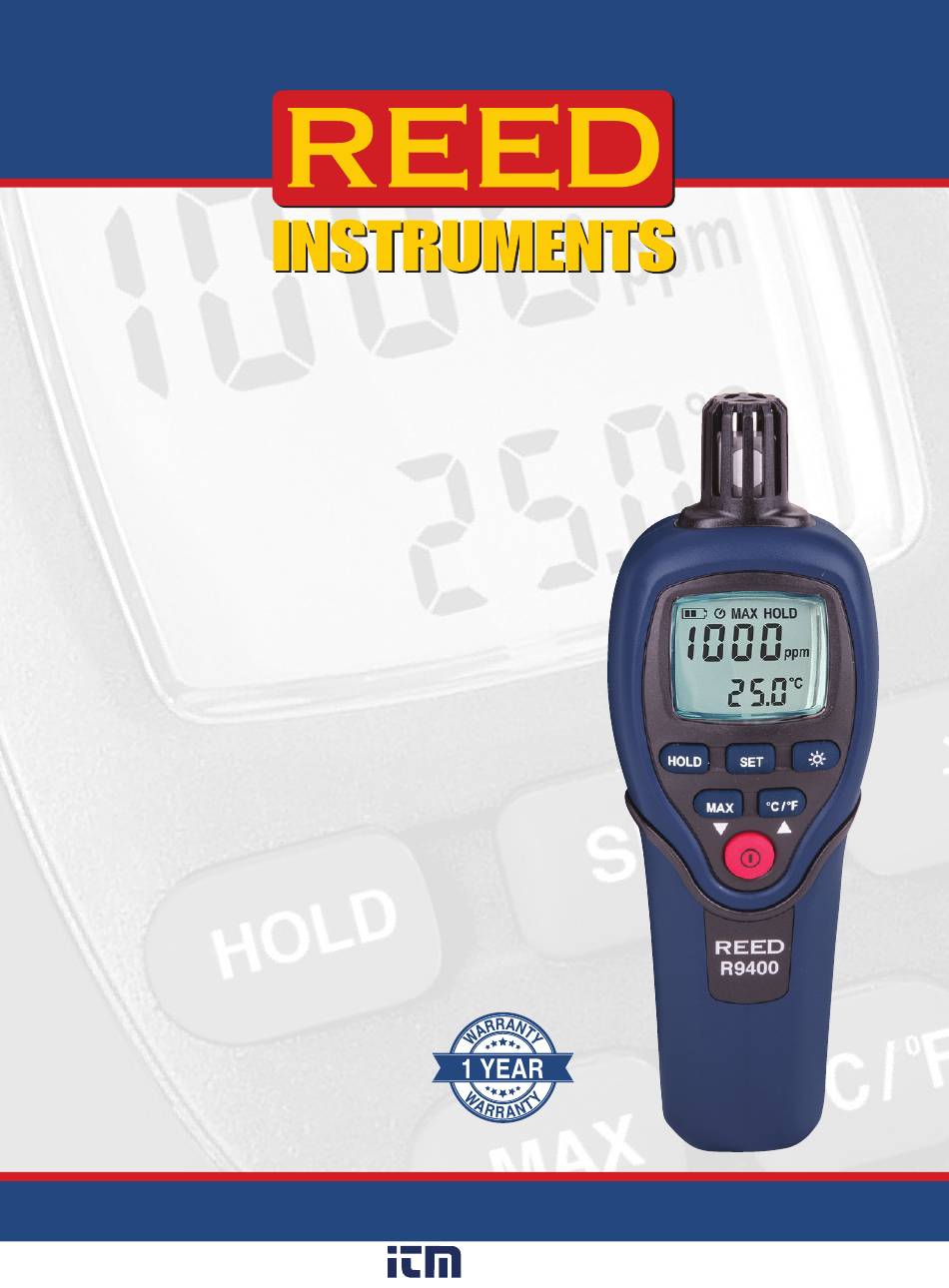

- Page 1 R9400 Carbon Monoxide Meter with Temperature Instruction Manual www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
Product Disposal and Recycling .............. 10 Product Support ..................11 Introduction Thank you for purchasing your R9400 Carbon Monoxide Meter with Temperature. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. Safety Never attempt to repair or modify your instrument. -
Page 4: Features
Features • Backlit LCD displays CO levels from 0 to 1000ppm and ambient temperature • User adjustable alarm limit (audible beep frequency increases as CO level rises) • Quick response and high accuracy • Data hold and max functions • Self test sequence on start-up • Low battery indicator and auto shut off Specifications Carbon Monoxide Measuring Range: 1 to 1000 ppm Accuracy: ±5% or ±5 ppm Resolution: 1 ppm Sensor Type: Stabilized electrochemical sensor Temperature Measuring Range: -4 to 158°F (-20 to 70°C) Accuracy:... -
Page 5: Included
Response Time: 2x per second Auto Shut-off: Yes (after 30 mins, off) Power Supply: 4 AA batteries Battery Life: Approx. 200 hours Low Battery Indicator: Product Certifications: Probe Length: 16" (406mm) Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 90% Dimensions: 7.5 x 2.6 x 1.7" (190 x 65 x 45mm) -
Page 6: Instrument Description
4. MAX/Down Button 5. Power Button 6. Battery Cover 7. Set Alarm Button 8. Backlight Button 9. Unit of Measure/Up Button R9400 Display Description 1. Auto Power Off Indicator 2. MAX Indicator 3. Data Hold Indicator 4. Beeper Off Indicator 5. -
Page 7: Operating Instructions
Operating Instructions Push the Power button to turn the meter on. To turn the meter off, press and hold the Power button until the meter counts down from 3 to 0. When turning the meter on it will perform a self-diagnostic test. During the test the LCD will count down from 60 to 0. Once the meter passes the self-test a beep will sound and the meter will begin taking measurements. -
Page 8: Max Function
MAX Function When pressing the MAX button once, the MAX Indicator will appear on the display. The maximum values (temperature and carbon monoxide) are displayed and will automatically update when new maximum data values are measured. Press the MAX button again and the MAX indicator will blink continu- ously. -
Page 9: Battery Replacement
Battery Replacement Loosen the screw at the bottom of the meter and slide the cover away from the meter. Replace the four (4) AA batteries. Reinstall the battery door and tighten the screw to fasten in place. Accessories and Replacement Parts CA-05A Soft Carrying Case Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.reedinstruments.com. -
Page 10: Product Care
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 11: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 12 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com 1.800.561.8187 information@itm.com www. .com...
