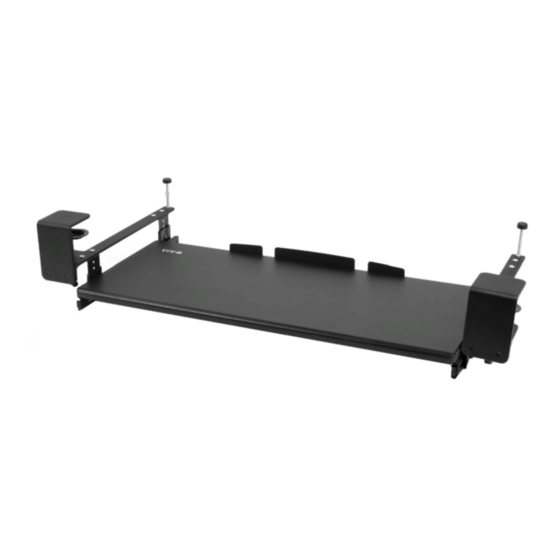

Keyboard Tray
Instruction Manual
Model: MOUNT KB05D
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371-5654
-
Scan the QR code with your mobile device or follow the link
to helpful videos and specifications related to this product.
https Requir : //vivo us Requir . com/products Requir / mount kb05d
-
Tools Requir Required:
phillips screwdriver
Package Contents Requir
A (x2)
Clamp Bracket
D (x4)
E (x8)
M4 Screw
M5 Screw
Step 1
-
B (x2)
Keyboard Rail
C (x1)
Keyboard Tray
F (x1)
5mm Allen Key
Mount the keyboard rails
(B) to the bottom of the
keyboard tray (C) using M5
screws (E). NOTE: Make
sure long ends of rails are
facing towards the long
end of the keyboard tray.
1
