Nix Product Manual | Connectors Guide

5 Connectors Guide

This chapter details the Nix Servo Drive connectors and pinout. Four Nix variants are detailed:
• Nix with onboard connectors
• Nix with gold plated pin headers
• Nix with Quick Connector Board
• Nix with EtherCAT interface

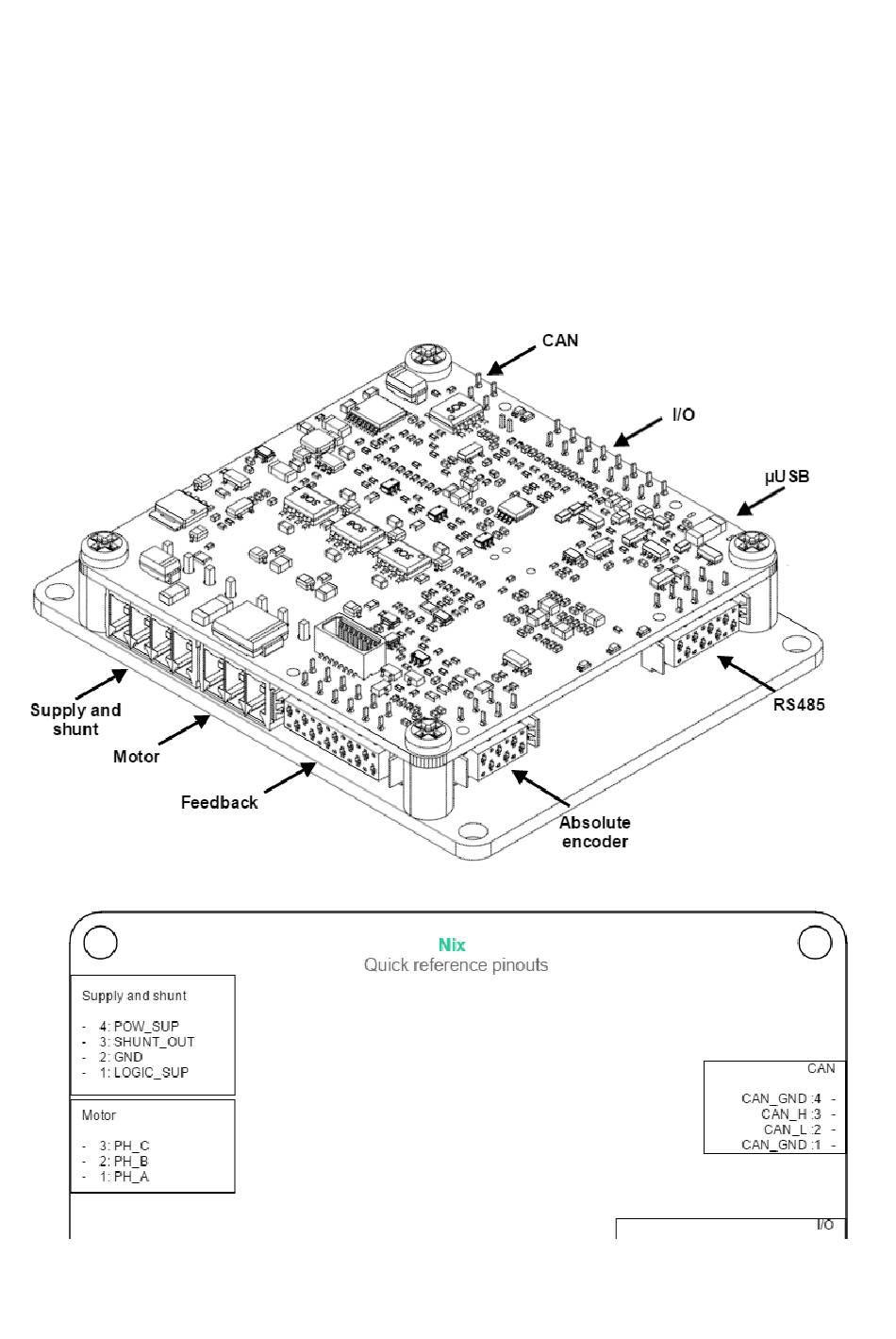

5.1 Connectors position and pinout of Nix with onboard connectors (NIX-x/xx-y-C)

INGENIA | 01/22/2019
(NIX-x/xx-y-C).
(NIX-x/xx-y-P).
(NIX-x/xx-y-Q).
(NIX-x/xx-E-z).
22
