Technical Manual Switch Actuators AKI/AKS/AKK

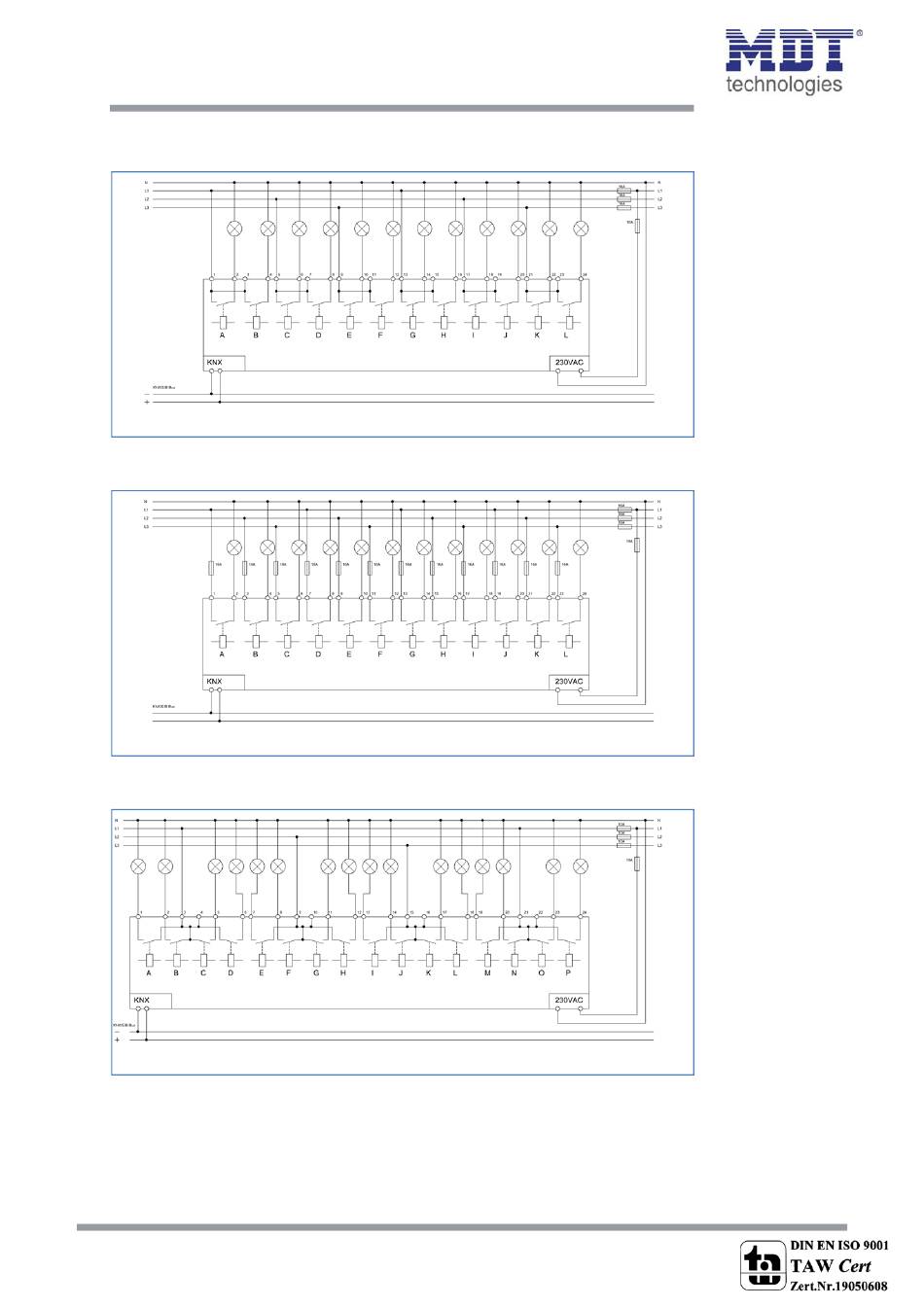

2.2 Exemplary circuit diagrams
Illustration 1: Exemplary circuit diagram AKS‐1216.01
Always 2 channels have common L‐connections at the standard design.
Illustration 2: Exemplary circuit diagram AKI‐1216.01
Every L‐connection is brought out separately at the industrial design.
Illustration 3: Exemplary circuit diagram AKK‐1610.01
Always four channels have common L‐connections at the compact design.
