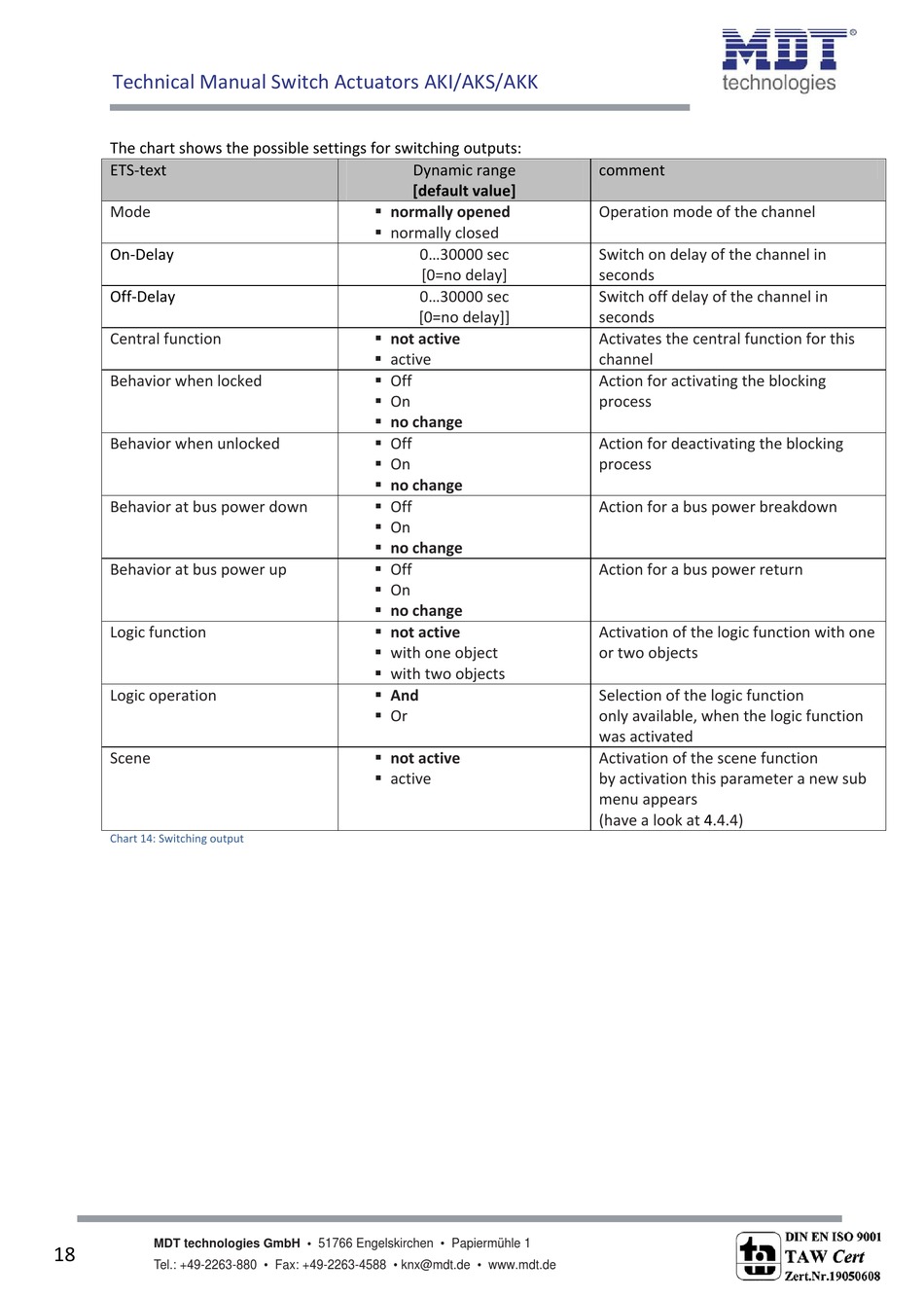

The chart shows the possible settings for switching outputs:
ETS‐text
Mode
On‐Delay
Off‐Delay
Central function
Behavior when locked
Behavior when unlocked
Behavior at bus power down
Behavior at bus power up
Logic function
Logic operation
Scene
Chart 14: Switching output
MDT technologies GmbH • 51766 Engelskirchen • Papiermühle 1
18
Tel.: +49-2263-880 • Fax: +49-2263-4588 • knx@mdt.de • www.mdt.de
Dynamic range
[default value]
normally opened
normally closed
0...30000 sec
[0=no delay]
0...30000 sec
[0=no delay]]
not active
active
Off
On
no change
Off
On
no change
Off
On
no change
Off
On
no change
not active
with one object
with two objects
And
Or
not active
active
comment
Operation mode of the channel
Switch on delay of the channel in
seconds
Switch off delay of the channel in
seconds
Activates the central function for this
channel
Action for activating the blocking
process
Action for deactivating the blocking
process
Action for a bus power breakdown
Action for a bus power return
Activation of the logic function with one
or two objects
Selection of the logic function
only available, when the logic function
was activated
Activation of the scene function
by activation this parameter a new sub
menu appears
(have a look at 4.4.4)
