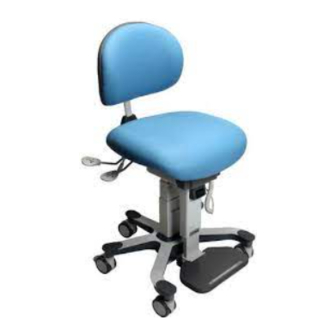

- Page 1 U S E R M A N U A L VELA Jive 100 & 100EL VARIANT: Manual no. 105616 VELA Jive 100 VELA Jive 100El...
-
Page 2: Table Of Contents
1.4.3. Upholstery 1.5. RECYCLING 1.6. USER MANUAL 1.6.1. Attaching the backrest 1.6.2. Adjustment of seat height (VELA Jive El) 1.6.3. Placement of plug (VELA Jive El) 1.6.4. Adjustment of seat height (VELA Jive 100) 1.6.5. Adjustment of seat tilt 1.6.6. Adjustment of back angle 1.6.7. -
Page 3: Introduction
1.0. INTRODUCTION DEAR CUSTOMER Thank you for purchasing a VELA Jive. This user manual contain useful information about positioning, operating and maintenance of VELA Jive chairs. Important Please read this user manual thoroughly and keep it for later use. This user manual must always accompany the chair. -
Page 4: Safety
8-12, 9200 Aalborg SV, Denmark. means of transportation and should not be used as such. VELA Jive El is tested according to DS/EN1335-1-2-3 office chair safety The chair withstands the following transport specifikations: and stability. The chair also have got the EMC test according to EN Temperature: -40°C (-40°F) to... -
Page 5: Unpacking The Chair
1.5. RECYCLING or use the chair. Several parts of the chair can be re- Content of the cardboard used. Please return the chair to VELA packaging: or to your local recycling center. :: VELA Jive chair :: This user manual 1.4. -
Page 6: User Manual
Note: The backrest arm must be pushed through completely so the pin spring locks the backrest arm. Make sure it cannot be pulled out again. 1.6.2. ADJUSTMENT OF SEAT HEIGHT (VELA JIVE EL) VELA Is operated by pressing your heel towards the front edge of the JIVE foot plate. -
Page 7: Adjustment Of Seat Tilt
1.6.5. ADJUSTMENT OF SEAT TILT Adjust the seat tilt by pulling the middle lever placed at your right hand. 1.6.6. ADJUSTMENT OF BACK ANGLE Adjust the back tilt by pulling the rear lever placed at your right hand. 1.6.7. ADJUSTMENT OF BACK HEIGHT Adjust the back height by using the lever placed on the back of the chair. -
Page 8: Adjustment Of Armrest, Width (Optional)
JIVE 1.6.11. WHEEL BRAKE VELA Tango brakes by pressing down on the brake. The chair have two brakes on the front wheels. Release the brakes by lifting the brake up to original position. 1.6.12. ADJUSTMENT OF SEAT HEIGHT BY FOOT CONTACT... -
Page 9: Back Latch (Vela Jive W/ Cy Backrest)
VELA 1.6.13. BACK LATCH (VELA JIVE W/ CY BACKREST) JIVE WITH CY BACKREST The backrest can be set to a specific angle by adjusting and secure the the bolt which is mounted on the back of the chair back. 1.6.14. CHARGING (VELA TANGO EL) Daily charging is recommended. -
Page 10: Angle Contact (Optional)
1.6.17. ANGLE CONTACT (OPTIONAL) Mounted under the left or right armrest - depending on the users needs. 1.6.18. ARMREST FOR SURGEON’S CHAIR (OPTIONAL) Adjust by loosening the screw on the armrest and regulate the angle. Remember to tighten the screw afterwards. Adjust the cushion back- and forwards by loosening the screw placed on the armrest. -
Page 11: Armrest W. Ball And Socket-Joint (Optional)
1.6.21. ARMREST W. BALL AND SOCKET-JOINT (OPTIONAL) The armrest is adjust by loosening the screw under the cushion and regulate the angle of the armrest. Remember to tighten the screw afterwards. 1.6.22. ERGOREST ARM SUPPORT (OPTIONAL) Ergorest arm support is multi-movable. Adjust the arm support to the wanted width and height for the user (Se section 1.6.8. - Page 12 VELA :: Gøteborgvej 8-12 :: 9200 Aalborg SV :: Denmark :: +45 96 34 76 00 :: mail@vela.dk vela-medical.com...
