5.3. Standard Dimensions of Mini PCI Express

The following figure shows the standard dimensions of Mini PCI Express. Please refer to document [1]
for detailed A and B.

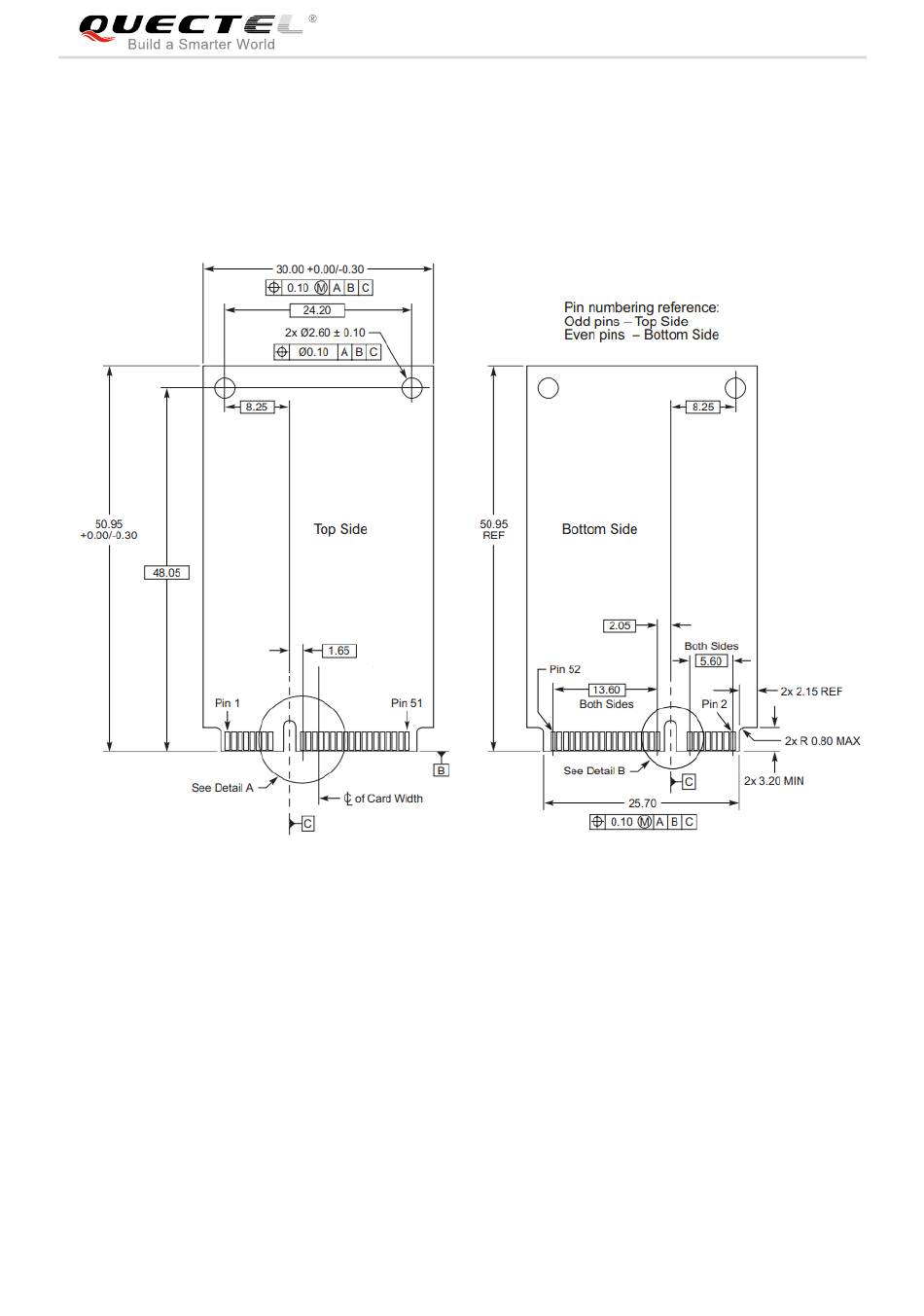

Figure 16: Standard Dimensions of Mini PCI Express (Unit: mm)
EP06 Mini PCIe adopts a standard Mini PCI Express connector which compiles with the directives and
standards listed in the document [1]. The following figure takes the Molex 679100002 as an example.
42 / 50
