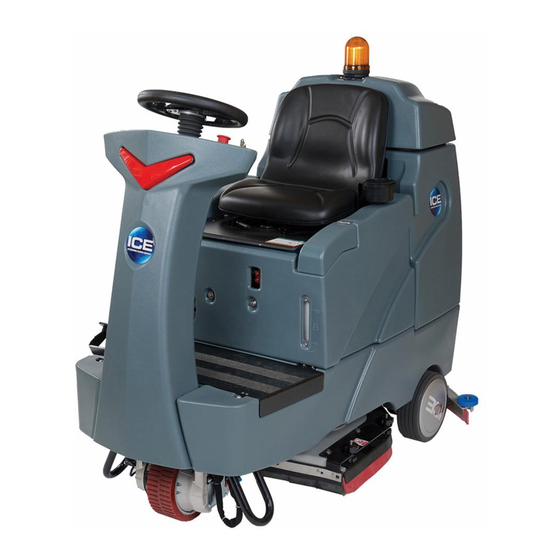

Ride-On Auto
Scrubber
Operator Manual
RS26L+
RS32L+

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS26L+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ice RS26L+

Summary of Contents for Ice RS26L+

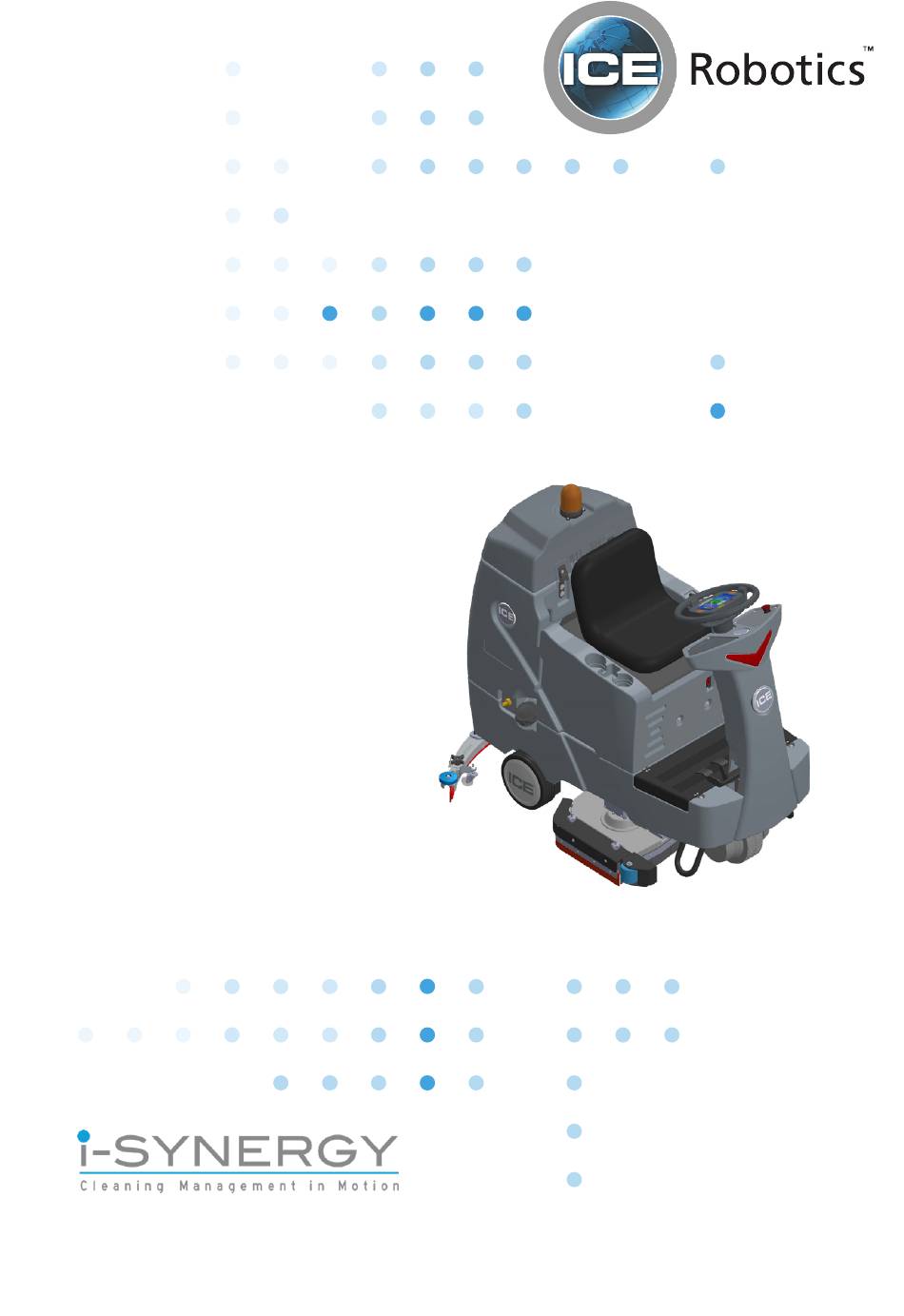

  • Page 1 Ride-On Auto Scrubber Operator Manual RS26L+ RS32L+...
  • Page 3 Always remember to recycle. ICE Company Limited XiangShi Road LiaoBu DongGuan GuangDong China Tel: 0769 - 81869000 Fax:0769 – 81863000 Specifications and parts are subject to change without notice. ICE RS26L+ / RS32L+...
  • Page 4 Customer ID Number ___________________________________________ Installation Date _______________________________________________ HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online, by phone, by fax or by mail. Identify the machine model. Identify the machine serial number from the data label.

  • Page 5: Table Of Contents

    Draining The Recovery Tank Draining The Solution Tank PREVENTATIVE MAINTENANCE................27-28 Daily Maintenance Monthly Maintenance Machine Storage FAULT CODE & SOLUTION..................29-32 BASIC TROUBLESHOOTING..................33-34 TECHNICAL SPECIFICATION................... WEAR AND TEAR PARTS LIST................. CE APPROVAL ......................38-41 ICE RS26L+ / RS32L+...

  • Page 6: Safety Precautions

    - Be very careful when using the machine in reverse. - Reduce speed when turning. - Report and fix any damage to machine pri- or to operating it. - Never allow children to play on or around. ICE RS26L+ / RS32L+...
  • Page 7 Keep battery compartment open when charging. WARNING: Flammable materials can cause an explosion or fire. Do not use flammable materials in tanks. WARNING: Flammable materials or reactive metals can cause an explosion or fire. Do not pick up. ICE RS26L+ / RS32L+...

  • Page 8: Machine Components

    OPERATOR MANUAL ICE RS26L+ / RS32L+...

  • Page 9: Machine Components

    Emergency Stop button Adjusting handle, seat Off-board battery charger port (Option) Watching window, On board battery charger Warning light Recovery tank cover Recovery tank USB Charging port Cabin door, Detergent bottle compartment Mesh, Battery charger power cord. ICE RS26L+ / RS32L+...
  • Page 10 OPERATOR MANUAL ICE RS26L+ / RS32L+...
  • Page 11 Work mode select button Detergent adjusting button Timer Brush pressure adjusting button Direction button Setting button Vacuum motor button Fault icon Warning light button Drain hose, recovery tank Vacuum hose Drain hose, solution tank Adjusting knob, Squeegee ICE RS26L+ / RS32L+...

  • Page 12: Tm Introduction

    ICE’s server. The ICE server generates daily reports and sends them to designated end users by email. From these reports, end users will have information about machines’ usage and even specific timings.

  • Page 13: Machine Setup & Installation

    #6) is off the floor. Sit in the operator seat (Machine com- ponents, #12), hold the Steering wheel (Machinecomponents, #13), press the propel pedal (Machine components, #10) and driving slowly the machine down from the slope. ICE RS26L+ / RS32L+...

  • Page 14: Installing Batteries

    COM port to the batteries. (See Fig. 1 and 2) Figure 1 Figure 2 WARNING: Fire or Explosion Hazard. Keep sparks and open flames away! Keep battery compartment open when charging. ICE RS26L+ / RS32L+...

  • Page 15: Battery Charging

    Fire or explosion hazard. Keep sparks and open flame away. Keep battery compartment propped open when charging. Use only ICE supplied or approved batteries charger, use of unapproved charger maight cause damage to the batteries and machine. Batteries charger specifications: •...

  • Page 16: Installing Brushes Or Pads

    If using the pad driver, first attach the squeegee assembly (Machine compo- appropriate pad to the pad driver surface. nents, #7), push the edge of brush down- ward. Figure 6 ICE RS26L+ / RS32L+...

  • Page 17: Mounting The Squeegee Assembly

    Check the squeegee blades for proper before securing knobs. adjustment by adjusting the squeegee ad- justing knob (Machine components, #44). (See Fig. 7 and 8) Figure 7 Figure 8 ICE RS26L+ / RS32L+...

  • Page 18: Filling The Solution Tank

    Do not put any flammable materials into the solution tank. This can cause an explosion or a fire. Only use the recommended cleaning chemicals. Contact your janitorial supply distributor for recommendations on proper chemicals. Figure 10 ICE RS26L+ / RS32L+...

  • Page 19: Auto-Fill Hose Port (Option)

    The ratio of water and detergent is 0~5%, you can adjust this ratio by pressing the detergent adjusting button (Machine components, #33). NOTE: Only use the recommended cleaning chemicals. Contact your janitorial supply distributor for recommendations on proper chemicals. ICE RS26L+ / RS32L+...

  • Page 20: Machine Operation

    (please see FAULT CODES AND SOLUTION on page 30 ). Select the proper working mode by pressing the Work mode select button (Machine components, #32). The ma- chine has 3 Modes: ECO, HEAVY DUTY and USER CUSTOM. Figure 11 ICE RS26L+ / RS32L+...
  • Page 21 This is to prevent damaging the squeegee. (See Fig. 13) Figure 13 NOTE: Go slow when driving the machine backwards. Figure 14 NOTE: Go slow on inclines and slippery surfaces. ICE RS26L+ / RS32L+...
  • Page 22 Turn off the machine. ICE RS26L+ / RS32L+...

  • Page 23: While Operating Machine

    If poor suck- tion of water is observed, please stop scrubbing and check the squeegee blade, adjust or replace if necessary. If the dirty water path exceeds the width of squeegee, please adjust the side squeegee assembly. ICE RS26L+ / RS32L+...
  • Page 24 (Machine components, #38), the squeegee will lower down, then Figure 15 turn off the 1-Step starting button (if it is ON), the scrub head will raise and then start suction. ICE RS26L+ / RS32L+...

  • Page 25: Brake Device

    To restart the machine, please reset the Emergency stop button, turn off the machine and then restart. (See Fig. 17) Figure 17 NOTE: Please hold the steering wheel when emergency stop. ICE RS26L+ / RS32L+...

  • Page 26: Tank Draining

    Rinse the solution tank with clean hose (Machine components, #43) water after every use. This will help upward, remove the cap and lower prevent chemical buildup and clogging hose to drain. of the solution lines. (See Fig. 18) Figure 18 ICE RS26L+ / RS32L+...

  • Page 27: Preventative Maintenance

    Check for loose battery cable connec- tions. Check the machine for loose nuts and bolts. Inspect and clean the recovery tank cover seal. Check the machine for leaks. Replace it if damaged. ICE RS26L+ / RS32L+...

  • Page 28: Machine Storage

    Drain the recovery tank. Always store the machine with the pad driver/ brush raised off the floor. Drain the solution tank of all fluid. Always store the machine with the squeegee assembly raised off the floor. ICE RS26L+ / RS32L+...

  • Page 29: Fault Code & Solution

    If the same fault icon occurs frequently, or can’t be eliminated, please contact ICE service center. The Fault icon has 2 colors. Yellow icon rep- resents a low level fault, you can click it to pop up...
  • Page 30 Brake Sensor Open Circuit Check Brake sensor Brush Motor (Left) Open Circuit Check Brush Motor (Left) Wiring and Connector Vacuum motor Open Circuit and Check Vacuum motor Wiring Connector Solenoid Valve Short Circuit Check Solenoid valve Wiring and Connector ICE RS26L+ / RS32L+...
  • Page 31 Main Relay (#1) Short Circuit Check Main Relay (#1) Wiring and Connector Main Relay (#1) Open Circuit Check Main Relay (#1) Wiring and Connector Main Relay (#2) Short Circuit Check Main Relay (#2) Wiring and Connector ICE RS26L+ / RS32L+...
  • Page 32 Check Brush Motor (Right) Wiring and Connector Vacuum Motor Short Circuit Check Vacuum Motor Wiring and Connector Scrub Head Actuator Short Circuit Check Scrub head actuator Wiring and Connector Squeegee Actuator Short Circuit Check Squeegee actuator Wiring and Connector ICE RS26L+ / RS32L+...

  • Page 33: Basic Troubleshooting

    Replace battery Machine will not operate Emergency stop button activated Reset Emergency stop botton Main PCB fuse blown Contact ICE service center Fault i-Synergy module Contact ICE service center 1-STEP scrub head up/down switch is off Turn on the 1-STEP switch...
  • Page 34 Replace vacuum hose Recovery tank cover not in place Properly position cover Damaged recovery tank cover seal Replace seal Faulty vacuum motor Contact ICE service center Low battery charge Recharge batteries Low battery charge Fully recharge batteries Defective batteries Replace batteries...

  • Page 35: Technical Specification

    VACUUM WATER LIFT (MAX) 70 in. H2O / 1780 mm. H2O RUN TIME PER CHARGE 3~3.5 hours DECIBEL RATE AT OPERATORS 68 dB(A) EAR, INDOORS GRADE LEVEL, MAX Scrubbing: 4 °/7 % Transporting (empty):10 °/17.5 % ICE RS26L+ / RS32L+...

  • Page 36: Wear And Tear Parts List

    8311534 FRONT BLADE, LINATEX, RS26L+ 8310534 FRONT BLADE, LINATEX, RS32L+ 9050013 BRUSH, 13 INCH, RS26L+ 13” 9050016 BRUSH, 16 INCH, RS32L+ 16” 9040013 PAD DRIVER, 13 INCH, RS26L+ 13” 9040016 PAD DRIVER, 16 INCH, RS32L+ 16” ICE RS26L+ / RS32L+...
  • Page 37 PARTS MANUAL ICE RS26L+ / RS32L+...

  • Page 38: Ce Approval

    CE APPROVAL Reference No. WTS20S11085034E Holder Guangdong ICE Co., Ltd. Address Fushan Section Road, Xiangshi Road, Liaobu Town, Dongguan City, Guangdong Province, P.R. China Product Ride-on Automatic Scrubber Model(s) RS26L+, RS32L+, RS28L-CY, RS26+, RS32+, RS28-CY Ratings Refer to report Test Standards:...
  • Page 39 CE APPROVAL ICE RS26L+ / RS32L+...
  • Page 40 ICE Robotics EMEA ICE Robotics USA ICE Robotics China Airborne Avenue 55 – 57 101 E. Roosevelt 2F, Building #5, 2133 LV Hoofddorp, Zeeland, MI 49464 1151 Lianxi Road The Netherlands Pudong, Shanghai, China +31(0)297-303010 833-ICE-ROBO +86 138 1611 1119 +31 (0) 800 - 9099 info-emea@icerobo.com...
