7. Rotate the fanfold tension arm down by pushing on it through
the opening at the top of the media hanger guide.
8. Open the pivoting deck by rotating the deck lock lever
clockwise to the end of its travel. The pivoting deck will swing
upward.
2

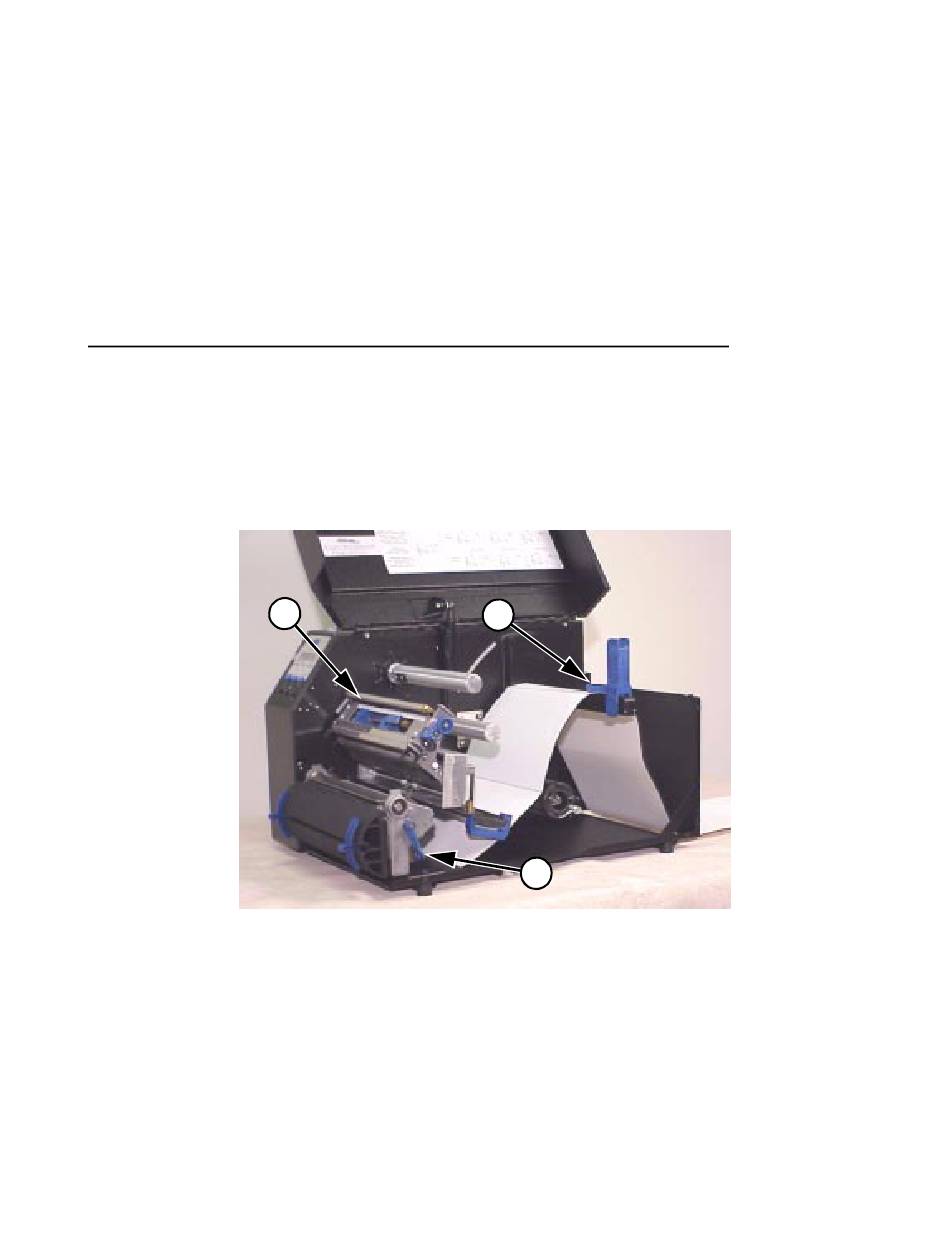

Legend:
1)
Fanfold Tension Arm (behind Media Hanger Guide)
2)
Pivoting Deck
3)
Deck Lock Lever
Loading Fanfold Media
1
3
33
