Printronix T5000 Series Quick Reference Manual page 27

5. Slide a roll of media over the media hanger guide and onto the
media hanger. The media feeds from the top of the roll and
towards the front of the printer.
6. Push the roll to the back of the media hanger, rotate the media
hanger guide to its upright position and slide it inward against
the outer edge of the media roll.

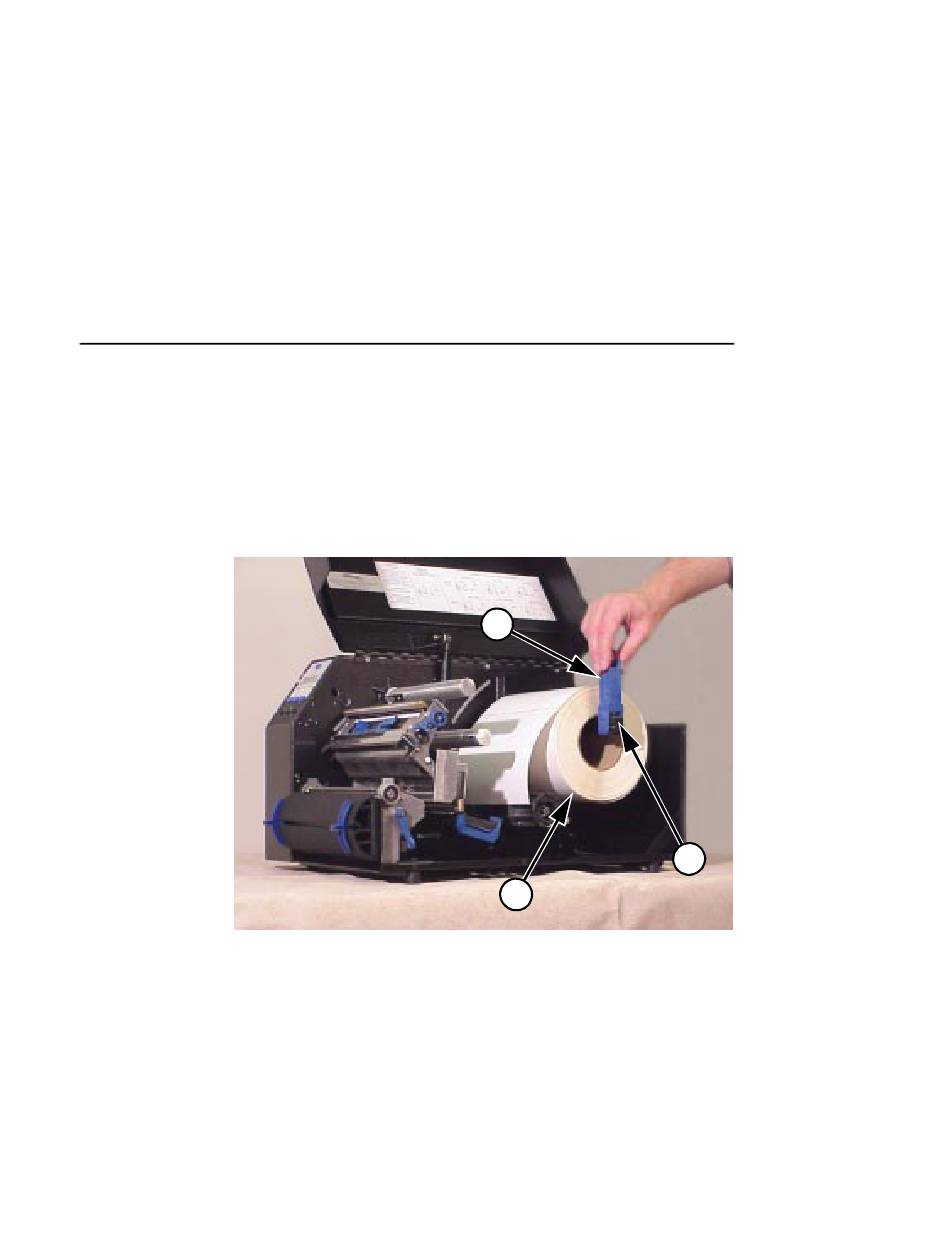

Legend:
1) Media Roll
2) Media Hanger
3) Media Hanger Guide
Loading Roll Media
3
1
2
27
