Instruction Manual
D104239X012
b. Port position within 2° of port
c. Motor running
d. Alarm
e. Over torque
f. Position within 0.25° of home port
〉
g. Local mode
〉 Combined detection logic for two selector switches
h. Off mode
i. Remote mode 〉
D Display blanking user setup option to conserve power in idle mode
D Includes Local Off Remote selector switch
D Local control knob for Port selection and Jog control when enabled by User

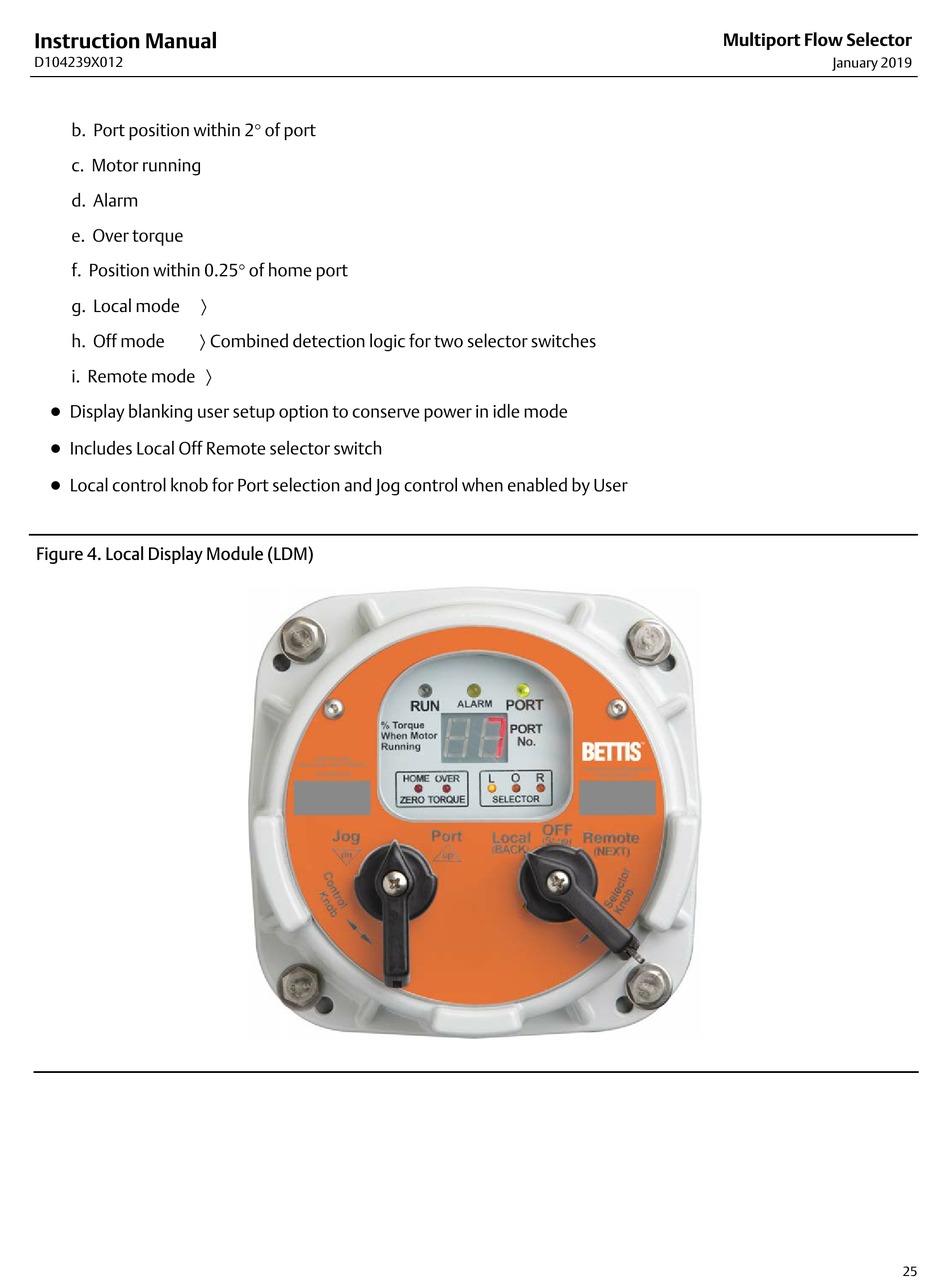

Figure 4. Local Display Module (LDM)
Multiport Flow Selector
January 2019
25
