Page 6
2

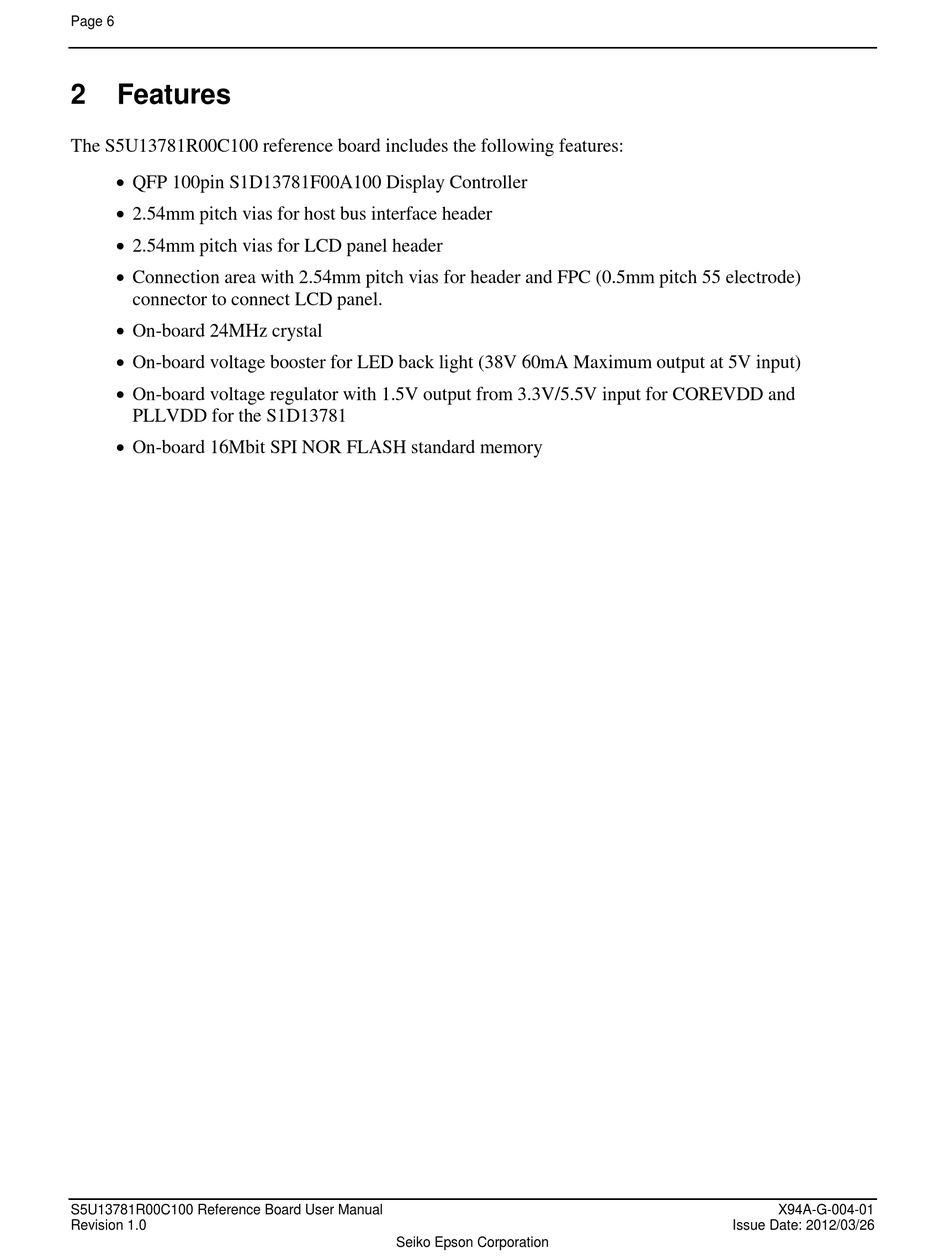

Features
The S5U13781R00C100 reference board includes the following features:
QFP 100pin S1D13781F00A100 Display Controller
2.54mm pitch vias for host bus interface header
2.54mm pitch vias for LCD panel header
Connection area with 2.54mm pitch vias for header and FPC (0.5mm pitch 55 electrode)
connector to connect LCD panel.
On-board 24MHz crystal
On-board voltage booster for LED back light (38V 60mA Maximum output at 5V input)
On-board voltage regulator with 1.5V output from 3.3V/5.5V input for COREVDD and
PLLVDD for the S1D13781
On-board 16Mbit SPI NOR FLASH standard memory
S5U13781R00C100 Reference Board User Manual
Revision 1.0
Seiko Epson Corporation
X94A-G-004-01
Issue Date: 2012/03/26
