Summary of Contents for SystemAir Topvex SC03-11

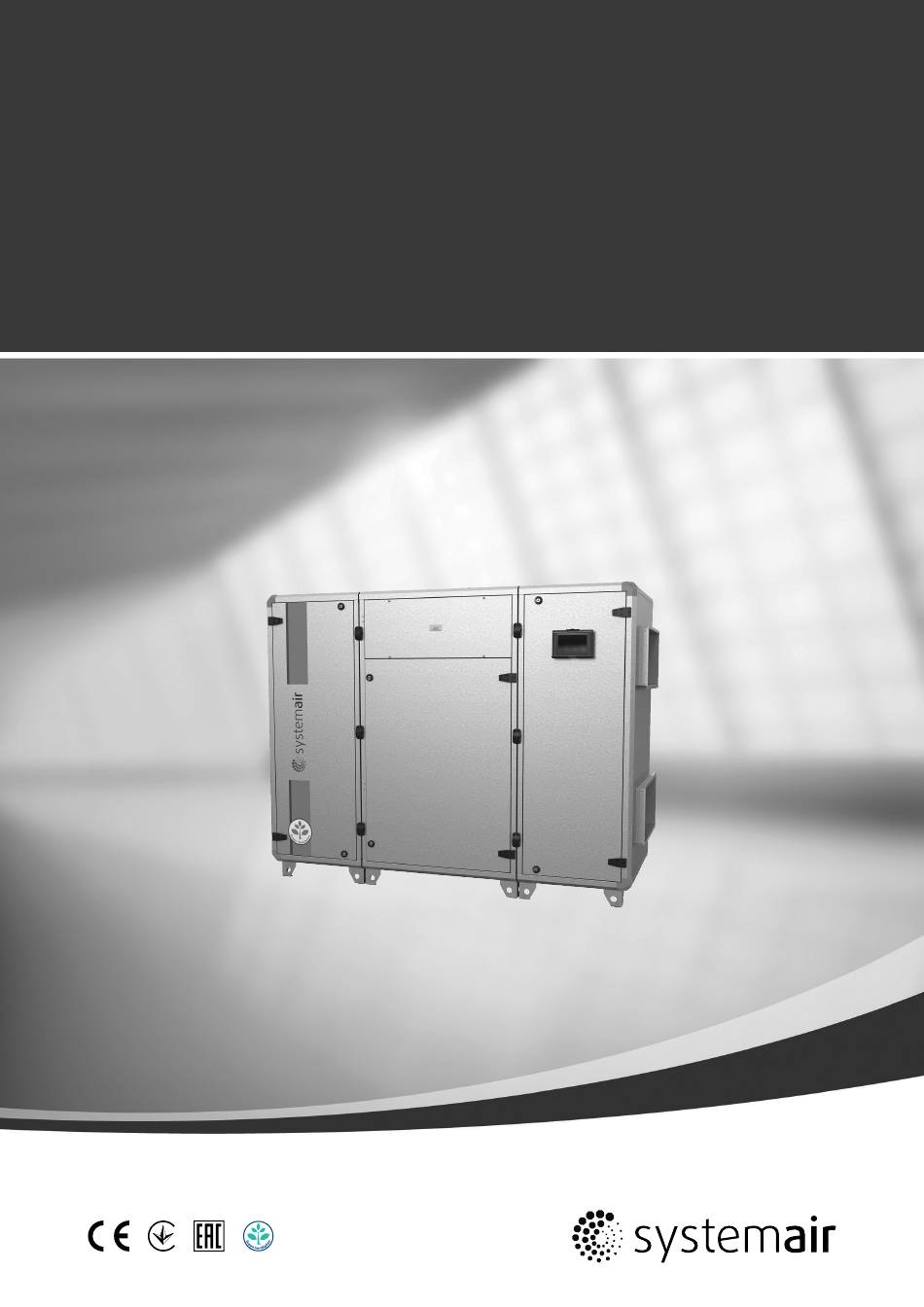

- Page 1 Topvex SC03-11 Compact Air Handling Unit Operation and Maintenance Instructions Document in original language | 151624 · A002...
- Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 151624 | A002...
-
Page 3: Table Of Contents
Contents Warnings............1 Troubleshooting..........13 Product description..........2 Service ............13 Internal components .......2 Description of internal components ....3 2.2.1 Supply and extract air fans ........3 2.2.2 Pressure sensor fans/ filters........3 2.2.3 Supply and extract air filters........3 2.2.4 Heat exchanger ......3 2.2.5 Dampers ........3 2.2.6 Switch module......3... -
Page 5: Warnings
Warnings | Warnings The following admonitions will be presented in the different sections of the document: Danger • Indicates a potentially or imminently hazardous situation which, if not avoided, could result in death or serious injury. Warning • Indicates a potentially hazardous situation that may result in minor or moderate injuries. Caution •... -
Page 6: Product Description
| Product description Product description Internal components Fig. 1 Internal components with air connections symbols (Drawn as a right hand unit) Description Symbol Position Connection supply air Connection exhaust air Connection outdoor air Connection extract air Fan supply air Fan extract air Filter supply air Filter extract air Heat exchanger... -
Page 7: Description Of Internal Components
2.2.4 Heat exchanger Topvex SC03-11 models are equipped with a highly efficient, counterflow heat exchanger. Required supply air temper- ature is therefore normally maintained without adding additional heat. The operation of the heat exchanger is auto- matic and depends on the set temperature. -
Page 8: Electrical Heater
• Make sure that the mains power supply to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Fig. 2 Reset of the manual over heat protection in Topvex SC03-11. 151624 | A002... -
Page 9: Internal Components Electrical Connection Box
• All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Topvex SC03-11 are equipped with a built in regulator and internal wiring (figure 3). The figure shows the electrical connection box for the Topvex SC03-11 units. -
Page 10: Free Cooling Description
| Product description Free cooling description This function is used during the warm period to save energy by using cold outdoor air, e.g. during night time, to cool down the building and thereby reducing the need for cooling during the day time. Note: The following is only valid if the free cooling function is activated in the program menu. -
Page 11: Defrost Function
Defrost function | Defrost function By measuring the pressure difference over the exchangers extract/exhaust side the need for defrosting can be de- tected. The differential pressure transmitter is auto calibrated by the system to obtain the correct pressure in relation to the airflow. -
Page 12: Maintenance Instructions
Changing supply/extract air filter The bag filter cannot be cleaned and must be changed when necessary. New filters can be ordered from Systemair. Op- eration time between filter changes depends on the air pollution at the installation site. A differential pressure switch indicates when it’s time to change the filters. -
Page 13: Checking The Heat Exchanger
Maintenance | 4.3.2 Checking the heat exchanger After a long time of use dust may build up in the exchanger and block the airflow. It is important to clean the exchanger regularly (once a year) to maintain high efficiency. The heat exchanger can be taken out of the unit for maintenance. Wash in hot soapy water or use pressure air. -
Page 14: Checking The Fans
| Maintenance 4.3.3 Checking the fans Even if the required maintenance, such as change of filters, is carried out dust and grease may slowly build up inside the fans. This will reduce the efficiency. The fans can be dismounted by loosening the bolts which attach the rack to the units inner wall section. The complete fan rack can then be pulled out after all the attached fast couplings to the electric wires and the two tubes have been disconnected. -
Page 15: Checking The Hot Water Heating Battery
Maintenance | 3 For the exhaust air side the fans are dismounted by loosening two bolts (pos.1) for size 3-4 and three for size 6-11 and remove the rail (pos.2). 4.3.4 Checking the hot water heating battery After long periods of operation (usually several years) dust may have deposited on the surface of the battery. This may reduce batteries capacity. -
Page 16: Checking The Outdoor Air Intake
| Maintenance 4.3.7 Checking the outdoor air intake Leaves and pollution could plug up the air intake grille and reduce the unit’s capacity. Check the air intake grille at least twice a year and clean if necessary. 4.3.8 Checking the duct system Dust and grease settlements may build up in the duct system even if filters are changed regularly. - Page 17 Ver. A Topvex XXXX 230/400V 25 A 50Hz 4016 W IP23 225kg 16kW 16kW Serial. no: 1234/567891-0001/140214 Systemair Sverige AB Industrivägen 3 SE-73930 Skinnskatteberg www.systemair.com Sweden Fig. 5 Type label Position Description Item number Production order number Consecutive number Production date...
- Page 18 | Service 151624 | A002...
- Page 19 Service | 151624 | A002...
- Page 20 Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
