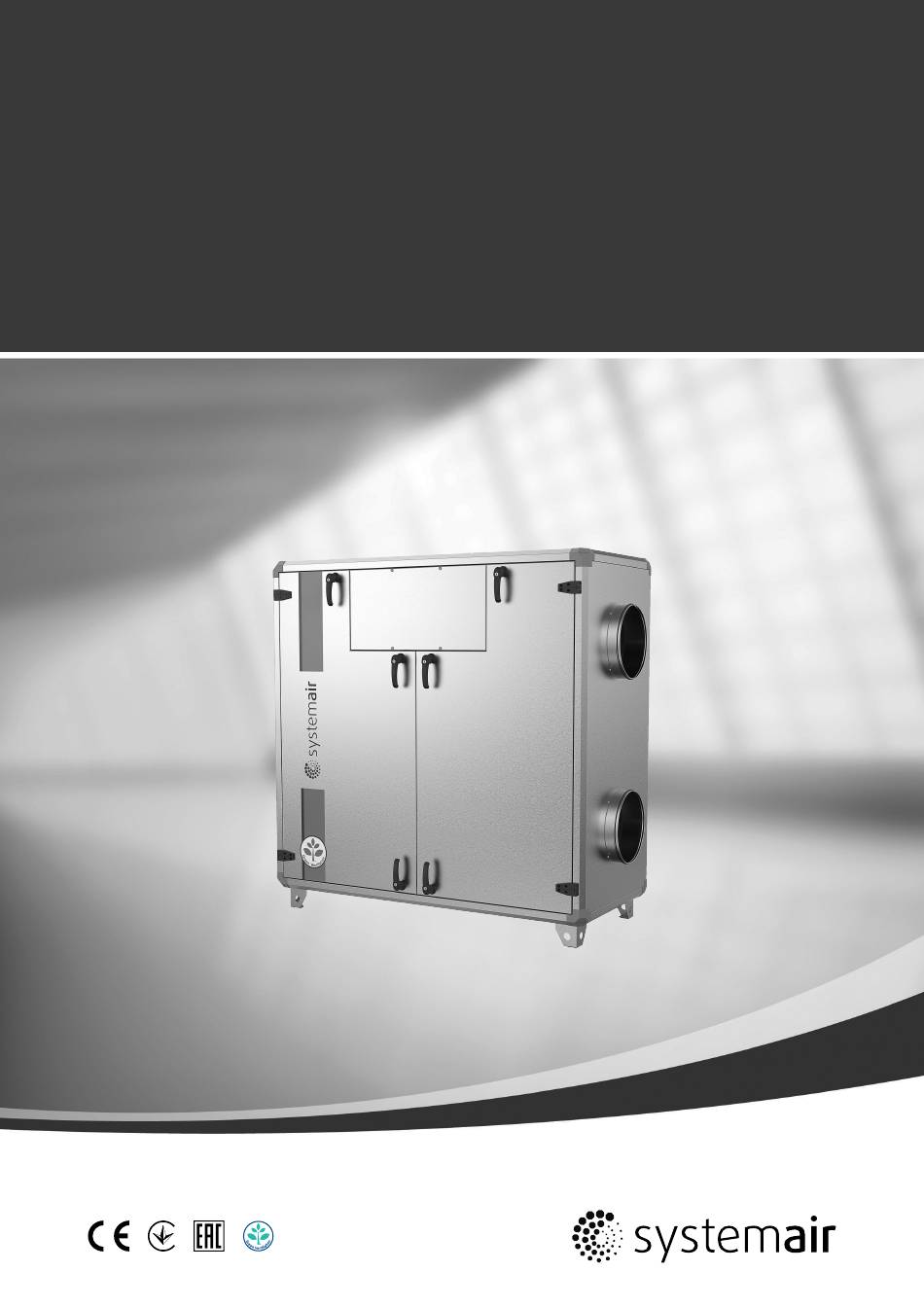

- Page 1 Topvex SC03-11 Compact Air Handling Unit Installation instructions Document in original language | 137667 · A001...
- Page 2 © Copyright Systemair AB All rights reserved E&OE Systemair AB reserves the rights to alter their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 137667 | A001...
-
Page 3: Table Of Contents
Contents EU Declaration of Conformity ......1 Warnings............2 Product information .........2 General ..........2 Technical data ........3 3.2.1 Dimensions and weights Topvex SC03-SC04 .....3 3.2.2 Dimensions and weight Topvex SC06 ......4 3.2.3 Dimensions and weight Topvex SC08-SC11 .....5 3.2.4 Electrical data ......6 Transport and storage ......6 Installation.............7 Unpacking ..........7... -
Page 5: Eu Declaration Of Conformity
EU Declaration of Conformity | EU Declaration of Conformity Manufacturer Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg SWEDEN Office: +46 222 440 00 Fax: +46 222 440 99 www.systemair.com hereby confirms that the following products: Air handling units None... -
Page 6: Warnings
Product information General This installation manual concerns air handling unit type Topvex SC03-11 manufactured by Systemair Sverige AB. Top- vex SC03-11 include the following model options: • Model: SC03, SC04, SC06, SC08, SC11. • Heating coil: EL (Electric), HW (Water coil) or None. -
Page 7: Technical Data
Product information | Technical data 3.2.1 Dimensions and weights Topvex SC03-SC04 *1/2" Fig. 1 Dimensions (mm) SC03-SC04 (Drawn as left hand unit) Model SC03 1597 1531 SC04 1941 1531 Weight, kg Model SC03 1463 SC04 1814 * male 137667 | A001... -
Page 8: Dimensions And Weight Topvex Sc06
| Product information 3.2.2 Dimensions and weight Topvex SC06 *1/2" Fig. 2 Dimensions (mm) SC06 (Drawn as left hand unit) Model SC06 2175 1622 Model Weight, kg SC06 * male 137667 | A001... -
Page 9: Dimensions And Weight Topvex Sc08-Sc11
Product information | 3.2.3 Dimensions and weight Topvex SC08-SC11 *1/2" Fig. 3 Dimensions (mm) SC08-SC11 (Drawn as left hand unit) Model SC08 2650 1771 1139 SC11 3211 1771 1552 Model Weight, kg SC08 1076 SC11 1492 * male 137667 | A001... -
Page 10: Electrical Data
The appliance is delivered with all necessary components, wrapped in plastic on a pallet for easy transportation. When transporting the Topvex SC03-11 units use a forklift placed on the gable of the unit. For size SC06-SC11 the units are delivered in parts on the pallet. -
Page 11: Installation
Topvex SC03-11 are meant for indoor installation. Topvex SC03-11 can be installed outside if weather protected. Place the unit on a horizontal flat surface. It’s important that the unit is completely levelled before it is put into operation. - Page 12 | Installation Fig. 5 Fig. 6 137667 | A001...
-
Page 13: Condensation Drain
Installation | Condensation drain The unit must be connected to the condensation drain, which is enclosed upon delivery. The drainage needs to be con- nected on the exhaust air side of the heat exchanger at the bottom of the unit figure 7. If the unit is to be used for cool recovery the normally plugged drainage outlet needs to be connected as well to a separate tube and water lock (accessories). -
Page 14: Installing The Unit
| Installation Installing the unit The unit must be installed in the following position. Fig. 9 Installation position (left hand unit) Fig. 10 Installation position (right hand unit) Table 3 Symbol description Symbol Description Supply air Exhaust air Outdoor air Extract air 137667 | A001... -
Page 15: Installation Procedure
Installation | 4.4.1 Installation procedure Danger • Make sure that the mains to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. -
Page 16: Supply Air Sensor
| Installation Supply air sensor The supply air sensor is fitted in the duct ca. 3 m after the unit in the supply air duct (figure 11). See table 4.6.5 to which terminals the sensor needs to be connected in the electrical connection box. Other temperature sensors are built in to the unit from factory. -
Page 17: Connections
Installation | Connections 4.6.1 Ducting Fig. 12 Connections and basic components in right hand connected units Description Symbol Position Connection supply air Connection exhaust air Connection outdoor air Connection extract air Fan supply air Fan extract air Filter supply air Filter extract air Heat exchanger Electric compartment... -
Page 18: Condensation And Heat Insulation
| Installation 4.6.2 Condensation and heat insulation Outdoor air duct and exhaust ducts must always be well insulated against condensation. Correct insulation installation on ducts connected to the unit is especially important. All ducts installed in cold rooms/areas must be well insulated. Use insulating covering (minimum 100 mm mineral wool) with plastic diffusion barrier. -
Page 19: Electric Connections, Components
• Make sure that the mains to the unit is disconnected before performing any maintenance or electrical work! • All electrical connections must be carried out by an authorized installer and in accordance with local rules and regulations. Topvex SC03-11 are equipped with a built in regulator and internal wiring. Fig. 13 Electric components Description Position... -
Page 20: External Connections
| Installation 4.6.5 External connections Table 4 Connections to external functions Terminal block Description Remark Ground Earthed neutral (supply voltage) Used for phase 230V 1~ and 400V 3~ Used for phase 230V 1~ if the Phase (Main supply voltage) unit has this mains 400V 3~/230V 3~ Phase (Main supply voltage) 400V 3~/230V 3~... - Page 21 Installation | Communication possibilities for controller E283 WEB. • RS485(Modbus): 50-51-52 or 60-61-62 • RS485(BACnet): 50-51-52 or 60-61-62 • RS485(Exoline): 50-51-52-53 or 60-61-62-63 • TCP/IP Exoline • TCP/IP Modbus • TCP/IP WEB • TCP/IP BACnet Fig. 14 BMS connection on the controller 137667 | A001...
-
Page 22: Installing The Control Panel
| Installation Installing the control panel 4.7.1 Dimensions Fig. 15 Control panel dimensions Dimensions (mm) Position 115.0 94.0 26.0 c/c 60.0 50.5 4.7.2 General information The control panel is delivered connected to the Corrigo control unit situated in the electrical connection box. Cable length is 10 m. -
Page 23: Installation
Installation | 4.7.3 Installation 1. Find an appropriate place to install the control panel. Maximum length between control panel and unit is 100 m. 2. If needed, drill two holes in the wall to hang the control panel (center to center: 60 mm) (pos.1, figure 16). Fig. - Page 24 Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
