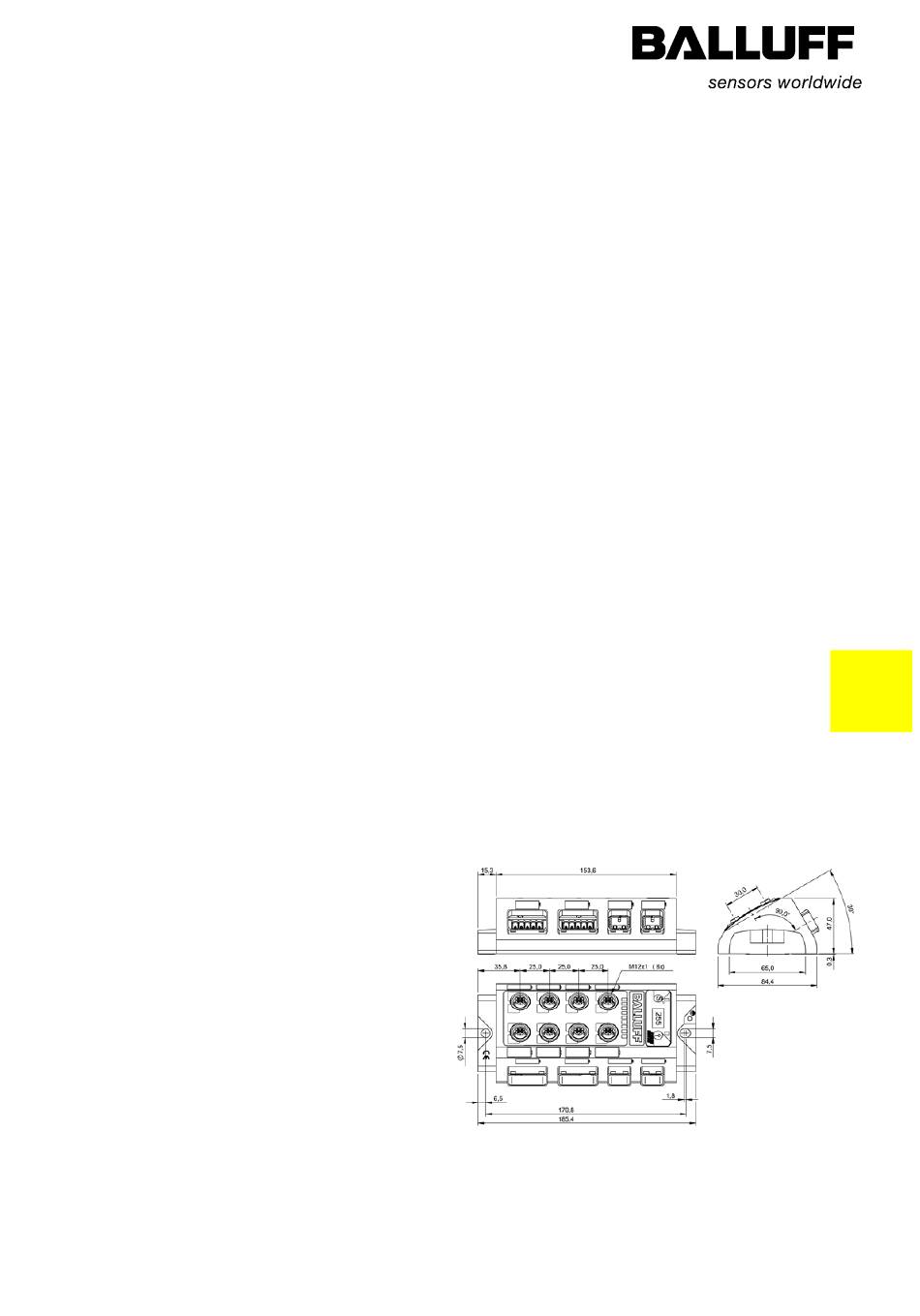

- Page 1 BNI PNT-508-105-Z031 BNI PNT-508-105-Z031-002 BNI PNT-508-105-Z031-004 IP67 Module User´s Guide...
-
Page 2: Table Of Contents
Getting Started 3.1. Module overview 3.2. Mechanical connection 3.3. Electrical connection Power supply Grounding PROFINET Interface BNI PNT-508-105-Z031and BNI PNT-508-105-Z031-004 PROFINET Interface BNI PNT-508-105-Z031-002 and BNI PNT-508-105-Z031-004 I/O port IO-Link port Port Technical data 4.1. Dimensions BNI PNT-508-105-Z031 4.2. Mechanical data 4.3. -
Page 3: Inputs Pin
7.5. Diagnostics module 7.6. Configurations 7.7. Contact Diagnostics 8.1. Diagnostics message 8.2. Block Header Block Type Block Length Block Version High Block Version Low Alarm Type Slot Subslot Module ID Submodule ID 8.3. AlarmSpecifier Sequence Number Channel Diagnostic Manufacturer-Specific Diagnosis Submodules www.balluff.com... - Page 4 User Structure ID 8.4. Channel Number 8.5. Channel Properties Type Accumulative Maintenance Specifier Direction 8.6. Channel Error Type Configuration of IO-Link devices General Function block Reading Writing Appendix 10.1. Included in the scope of delivery 10.2. Order number 10.3. Order information www.balluff.com...
-
Page 5: General
1.4. Symbols Note This symbol indicates general notes. Note This symbol indicates a safety instruction that must be followed without exception. 1.5. Abbreviations Balluff Network Interface Electromagnetic Compatibility Functional ground Standard input port Standard output port ProfiNet™ Actuator supply undervoltage Sensor supply undervoltage www.balluff.com... -
Page 6: Safety
Note voltage Disconnect all power before servicing equipment. Note In the interest of product improvement, the Balluff GmbH reserves the right to change the specifications of the product and the contents of this manual at any time without notice. www.balluff.com... -
Page 7: Getting Started
Ground connection Mounting hole PROFINET ™ port 1 Display PROFINET ™ port 2 Status LED Port 0 Port 1 Pin/port LED: signal status Power IN/OUT Port 2 Port 3 Port 4 Port 5 Schilder Power IN/OUT Port 6 Port 7 www.balluff.com... -
Page 8: Mechanical Connection
Balluff Network Interface ProfiNet™ Getting Started 3.2. Mechanical The module is secured by means of two M6 screws and two washers. connection Insulation support is available separately. 3.3. Electrical connection Power supply Power supply Function Description 24 V Module / sensor power supply (max. 16A) -
Page 9: Profinet Interface Bni Pnt-508-105-Z031And Bni Pnt-508-105-Z031-004
The FO port does not support the measurement of the optical power level. Thus the optical diagnosis for received optical power levels is not supported. Note! Unused ports socket must be fitted with cover caps to ensure IP67 protection rating. www.balluff.com... -
Page 10: I/O Port
Balluff Network Interface ProfiNet™ Getting Started I/O port M12, A-coded, female Function +24 V, 200 mA Input/output 2A Input/output 2A Note For the digital sensor inputs, refer to guideline on inputs EN 61131-2, Type 2. Note Each output receives a maximum current of 2.0 A.The total current of the module must not exceed 16 A. -
Page 11: Technical Data
<1% Input current 120 mA @24V 4.5. ProfiNet PROFINET Port 2 x 10Base-/100Base-Tx Cable types per IEEE 802.3 min. STP CAT 5e Data transmission rate 10/100 Mbit/s Max. cable length 100 m Flow control Half Duplex/Full Duplex (IEEE 802.33x-Pause) www.balluff.com... -
Page 12: Dimensions Bni Pnt-508-105-Z031-002
Balluff Network Interface ProfiNet™ Technical data 4.6. Dimensions BNI PNT-508-105- Z031-002 4.7. Mechanical data Housing material Die-cast zinc, matte nickel-plated Housing protection type in IP 67 (only in plugged-in and screwed-down state, and accordance with IEC 60529 depending on the connector system which is used.) Dimensions (W x H x D in mm) 84.4 x 185.4 x 47... -
Page 13: Dimensions Bni Pnt-508-105-Z031-004
18...30.2 V DC, in accordance with EN 61131-2 Ripple <1% Input current 220 mA @24V 4.15. ProfiNet PROFINET Port 1 x 10Base-/100Base-Tx 1 x 100Base Fx POF Date transmission rate 100 mbit/s Max. cable length 50 m Flow control Half Duplex/Full Duplex (IEEE 802.33x-Pause) www.balluff.com... -
Page 14: Function Indicators
Balluff Network Interface ProfiNet™ Technical data 4.16. Function indicators Status-LEDs Port-LEDs Module status Display Function Green Input power OK Red, flashing Low Input power (< 18 V) Green Output power OK Red, flashing Low Output power (< 18V) No Output power (< 11V) No error Diagnosis message;... -
Page 15: Integration
The device data required for project planning is saved in GSDML files (Generic Station Description Markup Language). The GSDML files are available in two languages as an Internet download (www.balluff.com). The data modules of an IO-Link module are depicted in the project planning software according to the slot. -
Page 16: Configuration Of The Header Module
Balluff Network Interface ProfiNet™ Integration Configuration of Double-click on the header module to open its properties. the header Click on the "Parameter" tab to open a menu selection for defining the module port functions and diagnostic functions. Note IO-Link configuration: If the connected IO-Link device needs additional power over pin 2, pin 2 must be configured to output on the corresponding port. -
Page 17: Hardware Configuration
For the SIO function, integrate the "IO-Link input with SIO mode" module. With the remaining modules, the various functions are mapped into the process data areas. A description of the individual modules is provided in section "Device Name, Profinet address" in this chapter. www.balluff.com... -
Page 18: Io-Link Configuration
Balluff Network Interface ProfiNet™ Integration IO-Link Double-click on the IO-Link module to change the IO-Link parameters of the configuration respective port pins. A description of the individual modules is beginning in section "Concluding the configuration" in this chapter. www.balluff.com... -
Page 19: Device Name, Profinet Address
Integration Device name, Double-click on the module in the Profinet line to view the communication Profinet address parameters of the module. The device name and the Profinet address (IP) are configured here. www.balluff.com... -
Page 20: Establishing Device Relationship
Balluff Network Interface ProfiNet™ Integration Establishing Navigate through "Target system" -> "Ethernet" -> "Assign device name" to start the tool for device assigning the module a device name. relationship Assigning device Select the desired name and use "Assign name" to assign the marked device that you name found. -
Page 21: Concluding The Configuration
Adapt the Ethernet address or device name if necessary, assign the device name to the device once again and download the configuration. IO-Link is configured in the header module, the slot module is, however, missing or is connected at the wrong location. www.balluff.com... -
Page 22: Functions In Module Properties
Balluff Network Interface ProfiNet™ Integration 5.2. Functions in Description of the functions in module properties module properties Module settings Global diagnostics: This function can be used to permit / suppress all diagnostics messages of the module. (optical diagnostics signals and diagnostics in configured diagnostics modules... -
Page 23: Bit Mapping And Function
If this function is configured, no automatic restart is performed after an actuator pin 2 short-circuit, but rather the port must be activated by inserting the corresponding bit. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 www.balluff.com... -
Page 24: Switching Io-Link Diagnostics On / Off
Balluff Network Interface ProfiNet™ Integration Switching IO-Link If this function is configured, the IO-Link diagnostics is deactivated diagnostics on / off for all ports and can be reactivated for the desired ports. Bit 7 Bit 6 Bit 5 Bit 4... -
Page 25: Io-Link Functions
Identity: Manufacturer ID and device ID as well as the serial number are compared to the module data. The IO-Link communication is only started if there is a match. Manufacturer ID and device ID are entered in decimal format, the serial number is entered in ASCII code. www.balluff.com... -
Page 26: Parameter Server
Balluff Network Interface ProfiNet™ Integration Parameter server Switched on: Data management functions active, parameterization data and identification data of the IO-Link device are stored redundantly. Switched off: Data management functions deactivated, stored data remain stored. Deleted: Data management functions deactivated, stored data is deleted. -
Page 27: Display
Is is required to add the module “Display Leds” to the configuration of the control system in order to utilize this functionality. 6.3. Display Cursor indicating the current type of address displayed information Cursor indicating the octet of address displayed subnet gateway www.balluff.com... -
Page 28: Design And Symbols
Balluff Network Interface ProfiNet™ Display 6.4. Design and There are some symbols used in the following flow-charts to describe the display- symbols functionality: Actual state Change-over Condition: short-time keypress on Set-Key Condition: long-time keypress on Set-Key (min. 3 seconds) ... -
Page 29: Factory Reset
MAC-ID: PNT-508- HW: 1 00:19:31: 105-Z031 SW: 1.1 30:44:0A • Go through the Module Info menu with short-time keypress on Arrow-Key. • You can select between the device name, the hard and software version and the MAC-ID. www.balluff.com... -
Page 30: Webserver
First ensure that integration in your network has been carried out correctly. For connection setup with the web server, enter the IP address of the module in the address line of the browser. A Welcome page appears with a list of Balluff Profinet network interfaces. Please use Internet Explorer 7 or higher. -
Page 31: Home
Here you can read about the configuration and network activity of the module. The navigation line appears in the upper area of the window, making it possible to switch between the different web pages. A click on the corresponding text is all it takes. www.balluff.com... -
Page 32: Diagnostics Procedure
Balluff Network Interface ProfiNet™ Webserver 7.3. Diagnostics Information on the current process data and port status of the module are visualized on procedure this page by means of LEDs. If an IO-Link device is connected to one of the IO-Link ports, some of the device data is displayed in addition to the module data. -
Page 33: Device Properties
Process data and parameterization data of the IO-Link device can be visualized in this window. The IO-Link device can also be configured. No output data can be set via IO-Link, however. To set the output data of an IO-Link device, a suitable controller with corresponding software is likewise required. www.balluff.com... - Page 34 Balluff Network Interface ProfiNet™ Webserver The process data and settings for the parameterization data are shown on this screen. The IO-Link device parameters can be read and written under "Parameter data". The parameter indices and subindicies are described in the operating instructions of the IO-Link device.
-
Page 35: Diagnostics Module
Webserver 7.5. Diagnostics The current status of the module and network, as shown on the module, appears on this module page. www.balluff.com... -
Page 36: Configurations
Balluff Network Interface ProfiNet™ Webserver 7.6. Configurations You can edit the module description and module position. This function can only be used following input of a user name and password: User name: Balluff Password: BNIPNT 7.7. Contact The contact information is shown on this page. -
Page 37: Diagnostics
Block Header, Alarm Specifier, Channel Properties Byte Value Meaning Block Block Type Block Length Block Version High Block Version Low Alarm type Block Header Slot number Subslot number Module ID Submodule ID AlarmSpecifier User Structure ID AlarmSpecifier Channel number ChannelProperties ChannelProperties ChannelErrorType www.balluff.com... -
Page 38: Block Header
Balluff Network Interface ProfiNet™ Diagnostics 8.2. Block Header The first part of the diagnosis is the so-called Block Header, which is 24 bytes long. Block Type The first 2 bytes of the Block Header are described by the Block Type to define the data type. -
Page 39: Alarmspecifier
State Possible values Meaning 0x00 No further diagnosis of module is present 0x01 At least one further diagnosis of the module is present User Structure ID 2 bytes, describes the type of diagnosis Possible values Meaning 0x8000 Channel-related diagnosis www.balluff.com... -
Page 40: Channel Number
Balluff Network Interface ProfiNet™ Diagnostics 8.4. Channel Number 2 bytes of data that describe where the error on the module has occurred. Possible values Value Position 0x00 Port 0 pin 4 0x01 Port 1 pin 4 0x02 Port 2 pin 4... -
Page 41: Channel Properties
Diagnosis appeared 0x02 Diagnosis left 0x03 Diagnosis left, but another is still active Bit 11-12 Direction Possible values Meaning 0x00 Manufacturer-specific 0x01 Channel used as input 0x02 Channel used as output 0x03 Channel used as input and output Bit 13-15 www.balluff.com... -
Page 42: Channel Error Type
Balluff Network Interface ProfiNet™ Diagnostics 8.6. Channel Error Error code in hex Description Type 0x0000 Unknown error 0x0001 Short circuit 0x0002 Undervoltage 0x0003 Overvoltage 0x0004 Overload 0x0005 Temperature limit exceeded 0x0006 Cable break 0x0007 Upper threshold exceeded 0x0008 Lower threshold undershot... -
Page 43: Configuration Of Io-Link Devices
Therefore the following settings are used: Diagnosis address The diagnosis address from slot 0 is used The sample project with the IOL_Call function module from Siemens AG can be downloaded on the Balluff homepage. The telegram has the following structure: Area Size in bytes... -
Page 44: Appendix
Balluff Network Interface ProfiNet™ Appendix 10.1. Included in The BNI PNT comprises the following elements: • the scope of IO-Link block • delivery 4x M12 dummy plugs • Ground strap • M4x6 screw • 20 information signs 10.2. Order number... - Page 45 Balluff GmbH Schurwaldstrasse 9 73765 Neuhausen a.d.F. Germany Tel. +49 7158 173-0 Fax +49 7158 5010 www.balluff.com balluff@balluff.de...
