Summary of Contents for Balluff BNI PNT-508-005-E002
- Page 1 BNI PNT-508-005-E002 IP69 Modules User's Guide...
-
Page 2: Table Of Contents
Integration of the module Configuration of the header module Hardware configuration IO-Link configuration IO-Link functions Cycle Settings Data selection Validation Device name, Profinet address Establishing device relationship Assigning device name Concluding the configuration 5.2. Functions in module properties Module settings www.balluff.com... -
Page 3: Inputs Pin
Submodules Diagnostic State ARDiagnosis State User Structure ID 8.4. Channel Number 8.5. Channel Properties Type Accumulative Maintenance Specifier Direction 8.6. Channel Error Type Webserver 9.1. General Information 9.2. Navigation / Info 9.3. Login/Logout 9.4. "Home" dialog 9.5. "Ports" dialog www.balluff.com... - Page 4 No appropriate IODD uploaded Appropriate IODD uploaded 9.6. "IODD" dialog 9.7. "Config" dialog 9.8. "Log" dialog Appendix 10.1. Scope of Delivery 10.2. Order number 10.3. Ordering information www.balluff.com...
-
Page 5: General
Cross-references indicate where additional information on the topic is located. 1.3. Symbols Note This symbol indicates general notes. Attention! This symbol indicates a security notice which must be observed. 1.4. Abbreviations Balluff Network Interface Standard input port ProfiNet™ Electromagnetic Compatibility Function ground Standard output port Sensor supply undervoltage Actuator supply undervoltage 1.5. -
Page 6: Safety
Before working on the device, switch off its power supply. Note In the interest of continuous improvement of the product, Balluff GmbH reserves the right to change the technical data of the product and the content of these instructions at any time without notice. www.balluff.com... -
Page 7: First Steps
Figure 1 – Overview of BNI PNT-50x-105-Z015 Mounting hole Port 7 PROFINET ™ port 2 Port 6 Power IN Port 4 Status LEDs Port 2 Port 1 Port 0 Pin/Port LEDs Power OUT PROFINET ™ Port 1 Port 3 Port 5 www.balluff.com... -
Page 8: Mechanical Connection
Balluff Network Interface ProfiNet™ First Steps 3.2. Mechanical The module is secured by means of two M6 screws and two washers. Connection 3.3. Electrical Connection Power supply Power supply "INPUT" (7/8", connector) Function Description Bus/sensor and actuator power supply ground... -
Page 9: I/O Port
Unused ports must be provided with cover caps in order to ensure enclosure rating IP69. IO-Link Port M12, A-coded, female Function +24 V, 1.6 A Input/output IO-Link / input / output n.a. Port Port BNI PNT-508-005-E002 IN / OUT / IO-Link www.balluff.com... -

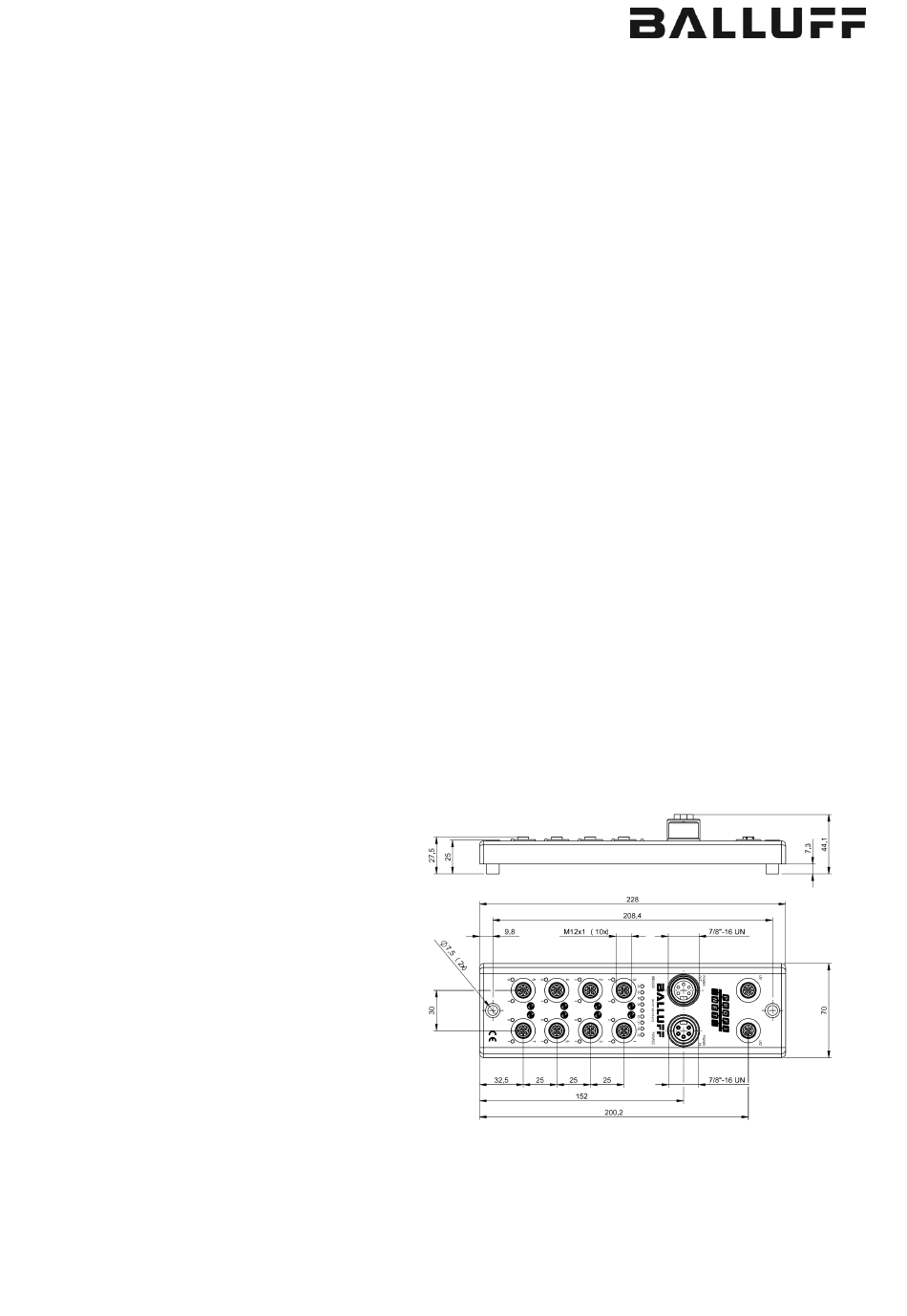

Page 10: Technical Data
Balluff Network Interface ProfiNet™ Technical data 4.1. Dimensions 4.2. Mechanical Data Housing material Stainless steel (V4A) Enclosure rating per IEC 60529 IP 69 (only in plugged-in and screwed-down state) Supply voltage 7/8" 5-pin, male / female Input ports / output ports... -
Page 11: Profinet
Output voltage < 11 V No error Diagnostics present; system error Red, flashing Service DCP signal started via bus No error No connection or no configuration Red, flashing No data exchange Transmission rate: 10 Mbit/s Yellow Transmission rate: 100 Mbit/s Green Data transfer www.balluff.com... -
Page 12: Port
Balluff Network Interface ProfiNet™ Technical data Port Standard port Status Function Status of input or output pin is 0 Yellow Status of input or output pin is 1 Both LEDs flashing red Sensor power supply short circuit between pin 1 and pin 3... -
Page 13: Integration
The device data required for project planning is saved in GSDML files (Generic Station Description Markup Language). The GSDML files are available in two languages as an Internet download (www.balluff.com). The data modules of an IO-Link block are depicted in the project planning software according to the slot. -
Page 14: Configuration Of The Header Module
Balluff Network Interface ProfiNet™ Integration Configuration of Double-click on the header module to open its properties. the header Click on the "Parameter" tab to open a menu selection for defining the port functions and module diagnostic functions. Note IO-Link configuration: If the connected IO-Link device makes outputs available, pin 2 must be configured to output on the corresponding port. -
Page 15: Hardware Configuration
For the SIO function, integrate the "IO-Link input with SIO mode" module With the remaining modules, the various functions are mapped into the process data areas. www.balluff.com... -
Page 16: Io-Link Configuration
Balluff Network Interface ProfiNet™ Integration IO-Link In the properties of the IO-Link module the IO-Link parameters of the respective port configuration can be changed. IO-Link functions Explanation of the possible settings in the properties of the IO-Link port Cycle Settings This parameter is used to reduce the IO-Link communication speed by increasing the IO-Link cycle time. -
Page 17: Device Name, Profinet Address
Integration Device name, Double-click on the module in the Profinet line to view the communication parameters of the Profinet address module. The device name and the Profinet address (IP) are configured here. www.balluff.com... -
Page 18: Establishing Device Relationship
Balluff Network Interface ProfiNet™ Integration "Device view " Right-click on the module "Assign device name". Establishing device relationship Assigning device Select the desired name and use "Assign name" to assign the marked device that you name found. The device name must be the same as that previously configured under device properties... -
Page 19: Concluding The Configuration
Scan the network and check whether the device is signaling under the correct device name and correct IP address. Adapt the Ethernet address or device name if necessary, assign the device name to the device once again and download the configuration. www.balluff.com... -
Page 20: Functions In Module Properties
Balluff Network Interface ProfiNet™ Integration 5.2. Functions in Description of the functions in module properties module properties Module settings Global diagnostics: This function can be used to permit / suppress all diagnostics messages of the module. (optical diagnostics signals and diagnostics in configured diagnostics modules... -
Page 21: Bit Mapping And Function
If this function is configured, after an actuator short-circuit there is no automatic restart, but rather the port must be activated by inserting the corresponding bit. Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 www.balluff.com... -
Page 22: Switching Io-Link Diagnostics On / Off
Balluff Network Interface ProfiNet™ Integration Switching IO-Link If this function is configured, diagnostics on / off the IO-Link diagnostics is deactivated for all ports and can be reactivated for the desired ports. Bit 7 Bit 6 Bit 5 Bit 4... -
Page 23: Parameter Server
IO-Link device are also still saved until the data records are deleted. When the connected IO-Link device is started, a validation takes place. Thus, only an IO-Link device of the same type can be used for the data management. www.balluff.com... -
Page 24: Configuration Of Io-Link Devices
Balluff Network Interface ProfiNet™ Configuration of IO-Link devices General IO-Link devices can be configured via the web server, function modules and the IO-Link device tool. When using the device tool as well as the web server the read and write accesses are taken over by the software. -
Page 25: Monitoring & Diagnostics
{1.3.6.1.4.1.44233.1.2.1} For Balluff products with Product Enterprise Number (PEN) = 44233, the product list is defined in BALLUFF-PRODUCTS-MIB sysUpTime The time (in hundredths of a second) since the network management portion of the system was last re-initialized. - Page 26 Balluff Network Interface ProfiNet™ Monitoring & Diagnostics The port-specific information of the MIB-2 describes diagnostic data about the network connections, including the IO-Link ports: MIB variable Ethernet port IO-Link Port ifIndex A unique value, contiguously starting from 1. ”IO-Link X" / “IO-IN X” / ”IO-OUT...
-
Page 27: Diagnostics
Block Header, Alarm Specifier, Channel Properties Byte Value Meaning Block Block Type Block Length Block Version High Block Version Low Alarm type Block Header Slot number Subslot number Module ID Submodule ID AlarmSpecifier User Structure ID AlarmSpecifier Channel number ChannelProperties ChannelProperties ChannelErrorType www.balluff.com... -
Page 28: Block Header
Balluff Network Interface ProfiNet™ Diagnostics 8.2. Block Header The first part of the diagnosis is the so-called Block Header, which is 24 bytes long. Block Type The first 2 bytes of the Block Header are described by the Block Type to define the data type. -
Page 29: Module Id
Input pin 4 0x0000005C Input pin 2 Submodule ID 4 bytes of data that describe which submodule is used with the respective module. (The submodule ID is saved in the GSDML) Possible values Meaning 0x00000001 BNI PNT-502-105-Z015 (header module) www.balluff.com... -
Page 30: Alarmspecifier
Balluff Network Interface ProfiNet™ Diagnostics 8.3. AlarmSpecifier 2 bytes, subdivided as follows: Sequence Bit 0-10, this counter is incremented with every new diagnostic message. Number Channel Bit 11 Diagnostic Possible values Meaning 0x00 No diagnosis related to channel is pending... -
Page 31: Channel Number
Channel Number Line break Short circuit IOL Pin 4 - 3 Sensor short circuit Pin 1 - 3 IOL Device wrong configuration Diagnostics of IO-Link devices Error Type Channel Number Short circuit Undervoltage Upper threshold exceeded Lower threshold undershot www.balluff.com... -
Page 32: Channel Properties
Balluff Network Interface ProfiNet™ Diagnostics 8.5. Channel 2 bytes, subdivided as follows: Properties Type Possible Meaning values Used if the channel number is 0x8000 or none of the types defined 0x00 below is relevant. 0x01 1 Bit 0x02 2 Bit... -
Page 33: Channel Error Type
0x0005 Temperature limit exceeded 0x0006 Cable break 0x0007 Upper threshold exceeded 0x0008 Lower threshold undershot 0x0009 Error 0x001A External error 0x001B Sensor has incorrect configuration (IO-Link device) 0x0101 Actuator warning 0x0105 Actuator supply undervoltage 0x0104 No actuator power supply www.balluff.com... -
Page 34: Webserver
Balluff Network Interface ProfiNet™ Webserver 9.1. General The BNI fieldbus module contains an integrated web server for retrieving detailed device Information information and for configuring the device. To use the web interface you must first ensure that the module has been correctly integrated into your network. -
Page 35: Navigation / Info
The navigation bar is located in the upper area of the window, which allows you to switch between the various dialogs of the web interface. To do this click on the corresponding icon. When the "Info" tab is selected the following overview appears: The "BALLUFF" logo at upper right links to the international Balluff homepage. www.balluff.com... -
Page 36: Login/Logout
Balluff Network Interface ProfiNet™ Webserver 9.3. Login/Logout To make configuration settings on the fieldbus module using the web interface, you must first log in. Functionalities which cannot be used without logging in are indicated by the grayed out buttons. The default password is: "BNIPNT“... -
Page 37: Home" Dialog
If an IO-Link device is connected to one of the configured IO-Link terminals, some of the device data will be displayed in addition to the module data in the form of a link. After selecting one of these links the corresponding device dialog is opened. www.balluff.com... - Page 38 Balluff Network Interface ProfiNet™ Webserver PNT: EIP: www.balluff.com...
-
Page 39: Ports" Dialog
Under "Events" you can see whether a diagnostic event from the IO-Link device exists. Under "Parameter Server Content" you can view the content of the parameter server if parameter data is stored on the parameter server. "Ports" dialog with direct parameter access www.balluff.com... -
Page 40: Appropriate Iodd Uploaded
Balluff Network Interface ProfiNet™ Webserver Appropriate IODD If an IODD appropriate to the IO-Link device connected to the currently selected port has uploaded been uploaded (see "Dialog "IODD"), the normal dialog for "Process Data" and "Parameters" is not displayed, but rather an expanded dialog. - Page 41 Webserver If the IODD of the IO-Link device on the currently selected port has parameters, these are shown in table format (see following screenshot). In this example the parameters for the Balluff Smart Light are shown. The Smart Light is a signal light which can be used in three different modes. These modes can be set using an IO-Link parameter.
-
Page 42: Iodd" Dialog
Balluff Network Interface ProfiNet™ Webserver 9.6. "IODD" dialog Using this dialog you can transfer IODDs (device description files for IO-Link devices) and the associated device images to the fieldbus module, so that a detailed representation of the connected IO-Link devices in the "Ports" dialog is possible. -
Page 43: Config" Dialog
The configuration page enables configuration of the module. You can change both the module information texts and the port configuration. The "Set Ports" action is not permanently stored in the device and is lost after the next reboot or reset. PNT / ECT: www.balluff.com... - Page 44 Balluff Network Interface ProfiNet™ Webserver EIP: The parameter set “Module Configuration” on the left side is used by clicking "Save Configuration" and permanently stored in the device. The "Reboot" button reboots the device as if the power to the module had been turned off and on again.
-
Page 45: Log" Dialog
If you have a detailed question about a specific situation, send us a screenshot of this Web site or print the site as a PDF. Logging shows events which have occurred in chronological order. This provides a tool for detailed troubleshooting in equipment. www.balluff.com... - Page 46 Balluff Network Interface ProfiNet™ Webserver Events are classified using the "Severity“ column: Internal Error (Emergency, Alert, Critical) The fieldbus module has detected a fault in itself (hardware or software) which should not occur during normal operation. If this happens, the module must be serviced or replaced.
-
Page 47: Appendix
The BNI PNT comprises the following elements: • IO-Link block • 4x M12 dummy plugs • M4x6 screw 10.2. Order number BNI PNT-508-005-E002 Balluff Network Interface ProfiNet Functions 508 = IP 69 IO-Link master module, 8 IO-Link ports Variants 005 = 2-Port-Switch Mechanical Version... - Page 48 Balluff GmbH Schurwaldstrasse 9 73765 Neuhausen a.d.F. Germany Tel. +49 7158 173-0 Fax +49 7158 5010 www.balluff.com balluff@balluff.de...
