Operation; Operating Elements And Operation; Operating Elements And Their Function - Retsch AS200 Operating Instructions Manual

Operation

Operating elements and operation

B
G
M
Element
A Tapping arm
B Stop bolt
C Clamping lever
D Sieve plate
E Sieve lid
F Cork stopper
G Display and operating unit: For
explanation see below
M Press button START
08.01.2008 Retsch GmbH

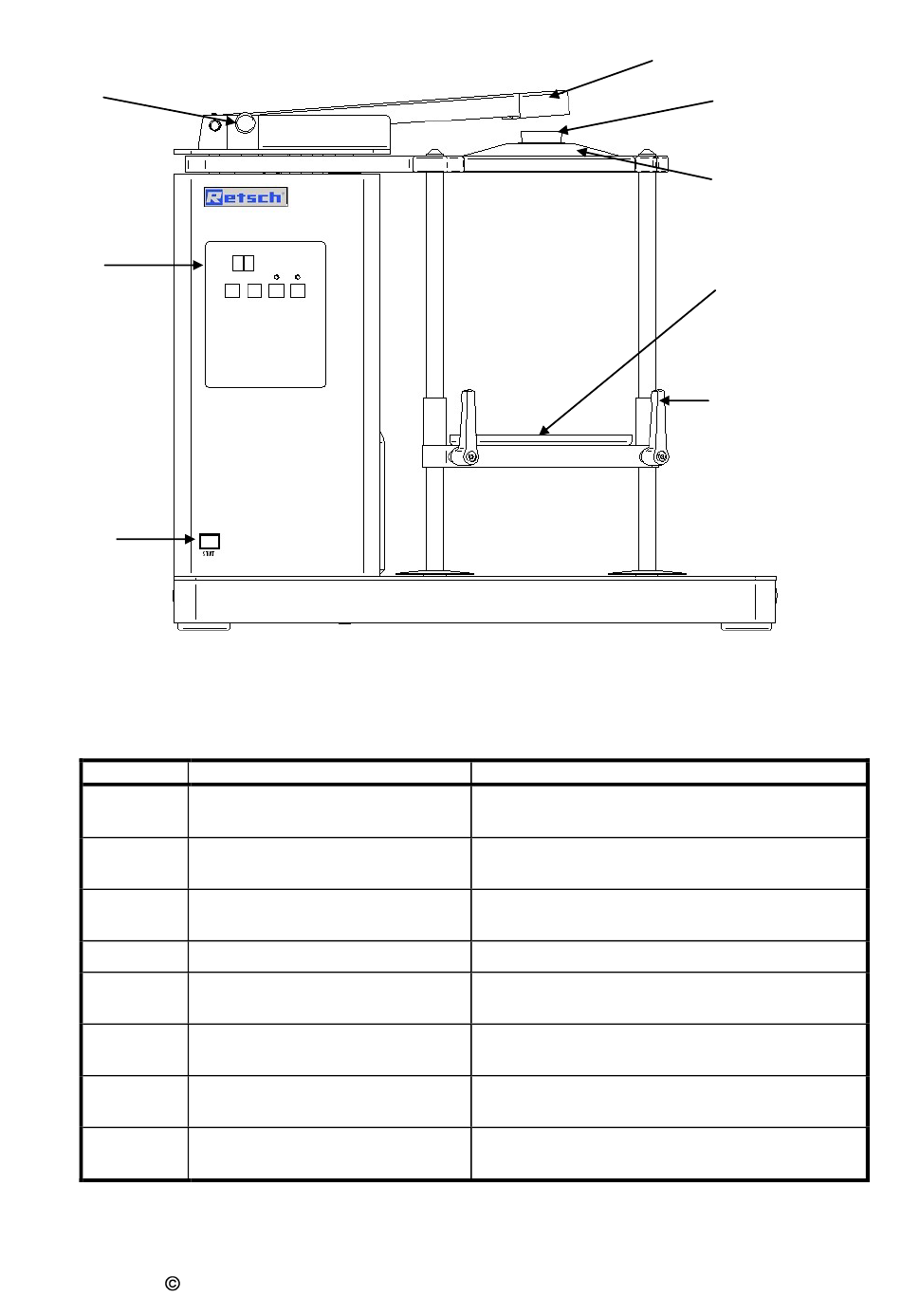

Front view

Operating elements and their function

Table of functions
Description
12
Function
Transmits tapping impulses to sieved mate-
rial.
Enables the tapping impulses to be switched
off.
Facilitates adaption to different heights of
the set of sieves
Holds the set of sieves.
Centers the set of sieves and and retains the
cork stopper.
Transmits the tapping impulses to the sieve
lid.
Time preselection and starting/stopping the
machine
Starts the machine when both start buttons
(M + 15) are pressed simultaneously.
