Summary of Contents for Retsch AS200
- Page 1 Operating Instructions - AS200 Analytical Sieve Shakers Retsch GmbH , 42781 Haan , Rheinische Str.36 , Germany Doc.Nr. E98.014-016.9999 A...
-
Page 2: Information On These Operating Instructions
These instructions will guide the reader to each topic necessary for safe use of the AS200, in accordance with the purpose for which the unit is intended. Familiarity with the applicable chapters is essential to safe and proper use of the equipment. -
Page 3: Table Of Contents
Switching on and off....................22 Start - Stop ......................22 Vibration height....................... 22 Setting the time ...................... 23 Replacing the fuses – All AS200 models ..............23 Working instructions ....................24 Supplementary mass....................24 Sieving aids ......................24 Retsch analytical sieves .................... 24 Quantity of product to be sieved ................ -
Page 4: Safety
AS200 before starting work with the machine, through instruction by a qualified person and/or with the help of the present technical documentation. -
Page 5: Warnings
These operating instructions do not include any repair instructions. In the interest of your own safety, have repairs made only by the Retsch GmbH or an authorized representative (service technician). In this case, please notify the following: Local Retsch representative... -
Page 6: Technical Specifications
AS200 Utilization in accordance with the intended purpose The AS200 is suitable for both dry and wet sieving of free-flowing, dispersed products where the input product exhibits grain size of up to a maximum of 25 mm. Do not make any modifications to the machine and use only RETSCH approved spares and accessories. -
Page 7: Shipping And Installation
AS200 will have to be protected against condensation; the electronic components could otherwise be damaged. Intermediate storage Also ensure that the AS200 is stored in a dry place. Standard equipment AS200 1 line power cord... -
Page 8: Requirements For The Installation Site
Installation site – altitude: max. 2000 m above mean sea level Installation / Shipping nuts Set up the AS200 only on a stable laboratory bench to avoid un- pleasant transmission of vibrations. • Loosen the hexagonal nuts SM using an open-ended spanner until the sieve plate moves freely •... -
Page 9: Electrical Connection
AS200 is to be operated. Ensure that the values shown there correspond to those for the local power supply. Use the supplied power cord to connect the AS200 to the power supply. When connecting the power cord to the power source, be sure that the supply circuit is fused in accordance with local codes. -
Page 10: Operation
Operation Target group: Operators Control elements and their use Schematic view of the operating controls: 21.11.2001 Retsch GmbH Doc. No E98.014-016.9999 A... -
Page 11: The Operating Controls And Their Functions
Lever, green When pressed repeatedly, it moves the sieve fixing cover B downward, thus fixing the sieve stack. AS200 control Display: 0.20 to 3.00 mm Shows the vibration height (twice the ampli- tude) from 0.20 to 3.00 mm. 21.11.2001 Retsch GmbH Doc. -
Page 12: The Operating Controls And Their Functions
0.20 to Hold the button down for rapid adjustment. 3.00 mm AS200 control Display: 0 to 99 sec. Shows the cycling interval, from 1 to 99 seconds if the R button is set for the intermittent operating mode. -
Page 13: Installing And Fixing The Analytical Sieves

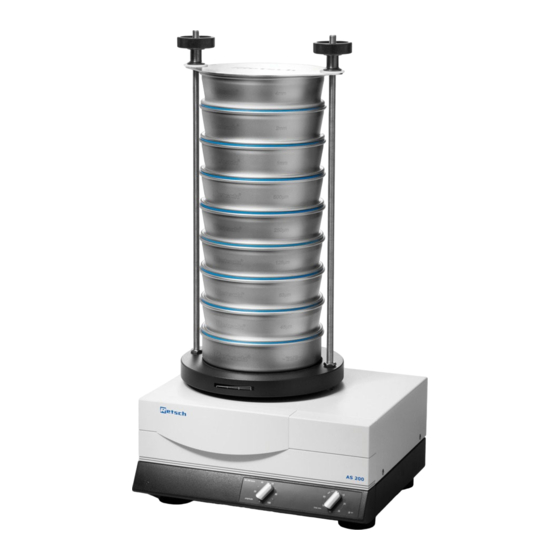

Installing and fixing the analytical sieves The AS200 is suitable for use with analytical sieves with outside diameters of up to 215 mm. It is possible to install up to 16 analytical sieves 25 mm high or 8 sieves 50 mm high, plus the base pan in each case. - Page 14 I are to be pressed simultaneously, briefly, to release tension. We recommend using talcum powder if the base pan sticks to the smooth surface of the sieve carrier when removing the sieve stack. 21.11.2001 Retsch GmbH Doc. No E98.014-016.9999 A...
-
Page 15: Operation For The As200 Control
The interval off LED will light; see Fig. 2. Two bars will appear in the time display; see Fig. 2. Fig. 1 AS200 is now ready for operation, without the intermittent operation function, in continuous duty, at vibration height of 1.5 Start - Interrupt - Stop Fig. -
Page 16: Signal At Conclusion Of Sieving
A tone will sound to confirm the entry. Intermittent – Continuous operation Fig. 4 Intermittent operation is initially disabled when the AS200 is first switched on. Enable intermittent mode, 1 to 99 sec.: Fig. Press button R. The LED above button R lights. -
Page 17: Vibration Height
“vibration height” throughout these instructions. Fig. 5 When the AS200 is switched on, the vibration height will be set at the default value of 1.50 mm. Setting the vibration height, from 0.20 to 3.00 mm: Fig. 5... -
Page 18: Setting The Time
Setting the time Fig. 6 When the AS200 control is switched on it will be in the continuous operation mode. Setting the time for 1 to 99 min.: Fig. 6 Pressing button U will reduce the time down to as little as 1 min. -
Page 19: Operation For The As200 Digit
Operation for the AS200 digit Switching on and off The main switch J is located at the left-front on the AS200; see Fig. 8 Turn the main switch on. The interval off LED lights, Fig. 9 Two bars light in the time display, see Fig. 9 AS200 is now ready for operation, without the interval function, in continuous duty. -
Page 20: Intermittent - Continuous Operation
The LED above button S1 lights. Vibration height If you desire to work with vibration heights above 2.5 mm, we recommend running the AS200 up to this value slowly. Depending on the loading situation, resonance (harmonic reinforcement) effects can be induced, causing the armature and the yoke of the magnet to make contact. -
Page 21: Setting The Time
Fig. 12 Setting the time Fig. 13 The AS200 is set for continuous operation when it is first switched on.. Set the time for 1 to 99 min.: Fig. 13 Pressing the U1 button will reduce the time down to a minimum of 1 min. -
Page 22: Operation For The As200 Basic
Operation for the AS200 basic Switching on and off The main switch J is located at the left-front on the AS200; see Fig. 14. Turn the main switch on. The ON LED lights, Fig. 15. The AS200 is now ready for operation. -
Page 23: Setting The Time
The intersection of the two lines shows the vibration height when the machine is running. In the illustration at the left the value is 1.8 mm. Naturally, your AS200 can only achieve the vibration heights which are within the values shown in the loading diagram. Fig. 16 Setting the time Fig. -
Page 24: Working Instructions
(Refer to chart on page 9.) The auxiliary mass is mounted below the sieve stack, on the sieve carrier plate at the AS200, and clamped at the same time as the sieve stack. Sieving aids When dealing with product which is difficult to separate,... -
Page 25: Quantity Of Product To Be Sieved
Retsch analytical sieves are available in versions complying with all the usual national and international standards: Standards available: DIN, ISO, ASTM, BS, AFNOR, NENORM, FEPA, Available diameters: 100 mm / 150 mm / 200 mm / 203 mm (8") Available woven screens materials:... -
Page 26: Distribution Of The Sieved Product
Distribution of the sieved product Even in procedures with only a single sieve, the AS200 will provide largely uniform distribution of the product across the sieve screen. Depending on the vibration height which is selected, the product will be moved slowly in a circular direction. -
Page 27: Amplitudes As Funktion Of Loaded Weight
Solid line = AS200 with standard / economy sieve clamping unit Line with circles = AS200 with “comfort” sieve clamping unit Chart for the AS200 basic at 230 V, 50 Hz with clamping unit “economy“ Vibration amplitudes from 0 to 3.0 mm... - Page 28 Sieve stack masses = product being handled from 560 to 6250 grams grams Solid line = AS200 with standard / economy sieve clamping unit Line with circles = AS200 with “comfort” sieve clamping unit To achieve maximum vibration height, the AS200 is to be operated with a supplementary mass, available as an accessory, where the sieve stack mass is less than 2 kg.
-
Page 29: Explanations Of The Loading Charts
This also applies to the 60 Hz models. Example 1 : You are working with the AS200, 110V-60 Hz model The mass of the sieve stack (base pan and sieves) amounts to 1500 g. -
Page 30: Example 2
Example 2 : You are working with the AS200, 110V-60 Hz model The mass of the sieve stack (collector bottom and sieves) amounts to 1500 g. You are working with the comfort sieve clamping unit The crosshatched curve in the chart applies. -
Page 31: Wet Sieving
Base pan with water drain, matching the sieve diameter. Preparations Position your AS200 near a water drain. Use a hose to connect the spray nozzle in the clamping cover to a water faucet. Connect the drain from the base pan with the drain or a suitable container to receive the liquid. - Page 32 Never place the AS200 directly in a basin for operation. Fatal electrical shock hazard. During wet sieving always connect the AS200 to a socket which is protected by a ground fault interrupter. Adjust the volume of water applied so that it will just wet the surface of the screen.
-
Page 33: General
100 / 150 / 200 / 203 mm in diameter Short threaded rods for shorter sieve stacks max. 5 analytical sieves, each 50 mm high Auxiliary weight, 2100 grams Conversion kit, vibration ball mill, for the AS200 basic and digit Cover dust-protected... -
Page 34: Cleaning
Never use solvents of any kind. Maintenance Target group: Operating personnel The AS200 requires no routine maintenance. When used in accordance with the instructions, no maintenance or adjustment work will have to be carried out. We recommend cleaning the mounting bars from time to time when using the comfort sieve clamping unit. -
Page 35: Safety Regulations For The As200
Vibration height >2.5 mm in the Armature strikes the magnets; height AS200 basic and digit models mechanical components could be damaged. Shipping During shipment the AS200 is not Electronic mechanical to be subjected to impact or components could be damaged. vibration; throw package. -
Page 36: Warranty Conditions
If he wishes to have other particular work performed which goes beyond the work warranted then these costs shall be payable at the actual valid price. 21.11.2001 Retsch GmbH Doc. No E98.014-016.9999 A...
