STAGE 2 - WIRING & ELECTRICAL

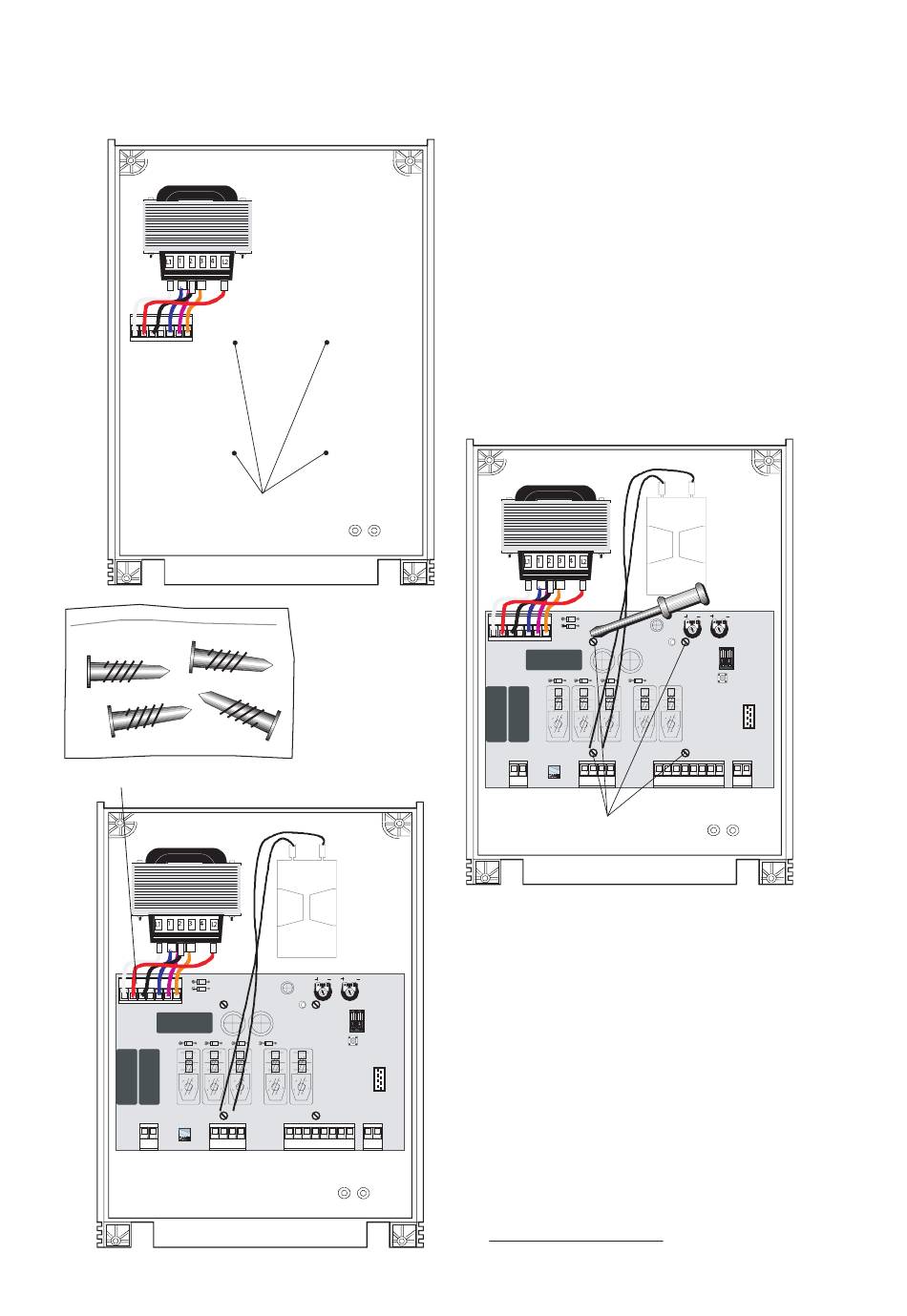

2.1 - Fitting the Control Panel in the Casing
Screw positioning holes
Fastening screws
Green connector point
Securely fasten the control panel PCB to the
casing with the screws supplied.
Screws
Plug the green connector from the transformer to
the PCB ensuring that it connects the correct way.
NB FROG Series Motors: connect the black wires
coming out of the board to one capacitor.
8
