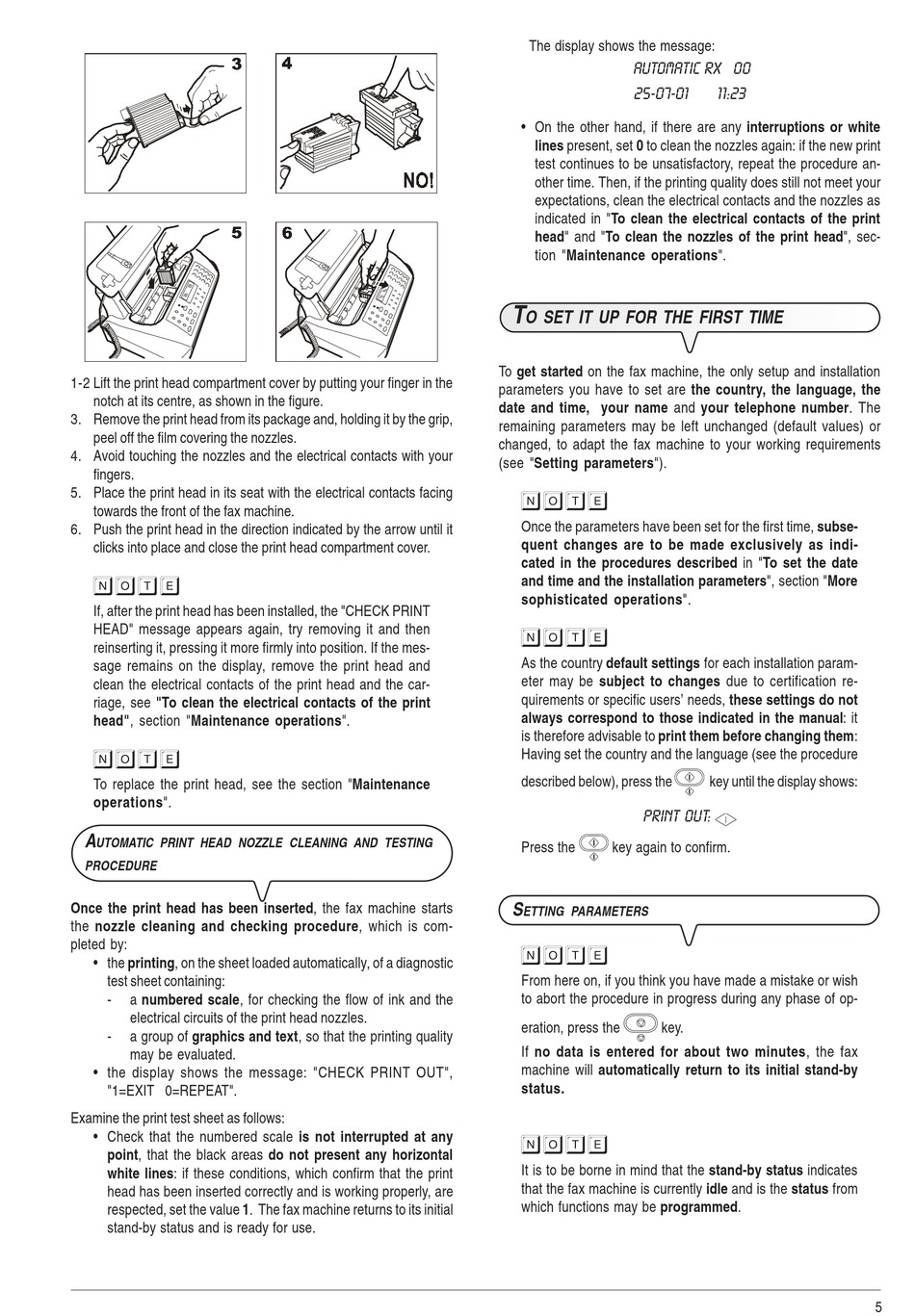

1-2 Lift the print head compartment cover by putting your finger in the
notch at its centre, as shown in the figure.
3. Remove the print head from its package and, holding it by the grip,
peel off the film covering the nozzles.
4. Avoid touching the nozzles and the electrical contacts with your
fingers.
5. Place the print head in its seat with the electrical contacts facing
towards the front of the fax machine.
6. Push the print head in the direction indicated by the arrow until it
clicks into place and close the print head compartment cover.
n o t E
If, after the print head has been installed, the "CHECK PRINT
HEAD" message appears again, try removing it and then
reinserting it, pressing it more firmly into position. If the mes-
sage remains on the display, remove the print head and
clean the electrical contacts of the print head and the car-
riage, see "To clean the electrical contacts of the print
head", section "Maintenance operations".
n o t E
To replace the print head, see the section "Maintenance
operations".
A
UTOMATIC PRINT HEAD NOZZLE CLEANING AND TESTING
PROCEDURE
Once the print head has been inserted, the fax machine starts
the nozzle cleaning and checking procedure, which is com-
pleted by:
• the printing, on the sheet loaded automatically, of a diagnostic
test sheet containing:
- a numbered scale, for checking the flow of ink and the
electrical circuits of the print head nozzles.
- a group of graphics and text, so that the printing quality
may be evaluated.
• the display shows the message: "CHECK PRINT OUT",
"1=EXIT 0=REPEAT".
Examine the print test sheet as follows:
• Check that the numbered scale is not interrupted at any
point, that the black areas do not present any horizontal
white lines: if these conditions, which confirm that the print
head has been inserted correctly and is working properly, are
respected, set the value 1. The fax machine returns to its initial
stand-by status and is ready for use.
The display shows the message:
AUTOMATIC RX 00
25-07-01
• On the other hand, if there are any interruptions or white
lines present, set 0 to clean the nozzles again: if the new print
test continues to be unsatisfactory, repeat the procedure an-
other time. Then, if the printing quality does still not meet your
expectations, clean the electrical contacts and the nozzles as
indicated in "To clean the electrical contacts of the print
head" and "To clean the nozzles of the print head", sec-
tion "Maintenance operations".
T
O SET IT UP FOR THE FIRST TIME
To get started on the fax machine, the only setup and installation
parameters you have to set are the country, the language, the
date and time, your name and your telephone number. The
remaining parameters may be left unchanged (default values) or
changed, to adapt the fax machine to your working requirements
(see "Setting parameters").
n o t E
Once the parameters have been set for the first time, subse-
quent changes are to be made exclusively as indi-
cated in the procedures described in "To set the date
and time and the installation parameters", section "More
sophisticated operations".
n o t E
As the country default settings for each installation param-
eter may be subject to changes due to certification re-
quirements or specific users' needs, these settings do not
always correspond to those indicated in the manual: it
is therefore advisable to print them before changing them:
Having set the country and the language (see the procedure
described below), press the
PRINT OUT:
Press the key again to confirm.
S
ETTING PARAMETERS
n o t E
From here on, if you think you have made a mistake or wish
to abort the procedure in progress during any phase of op-
eration, press the key.
If no data is entered for about two minutes, the fax
machine will automatically return to its initial stand-by
status.
n o t E
It is to be borne in mind that the stand-by status indicates
that the fax machine is currently idle and is the status from
which functions may be programmed.
11:23
key until the display shows:
5
