Hirschmann OWL LTE User Manual

Industrial cellular router
Hide thumbs Also See for OWL LTE:
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
Installation
OWL LTE (Industrial Cellular Router)
UM Installation OWL_LTE
Technical Support
Release 1.0 09/2015
https://hirschmann-support.belden.eu.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OWL LTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hirschmann OWL LTE

Summary of Contents for Hirschmann OWL LTE

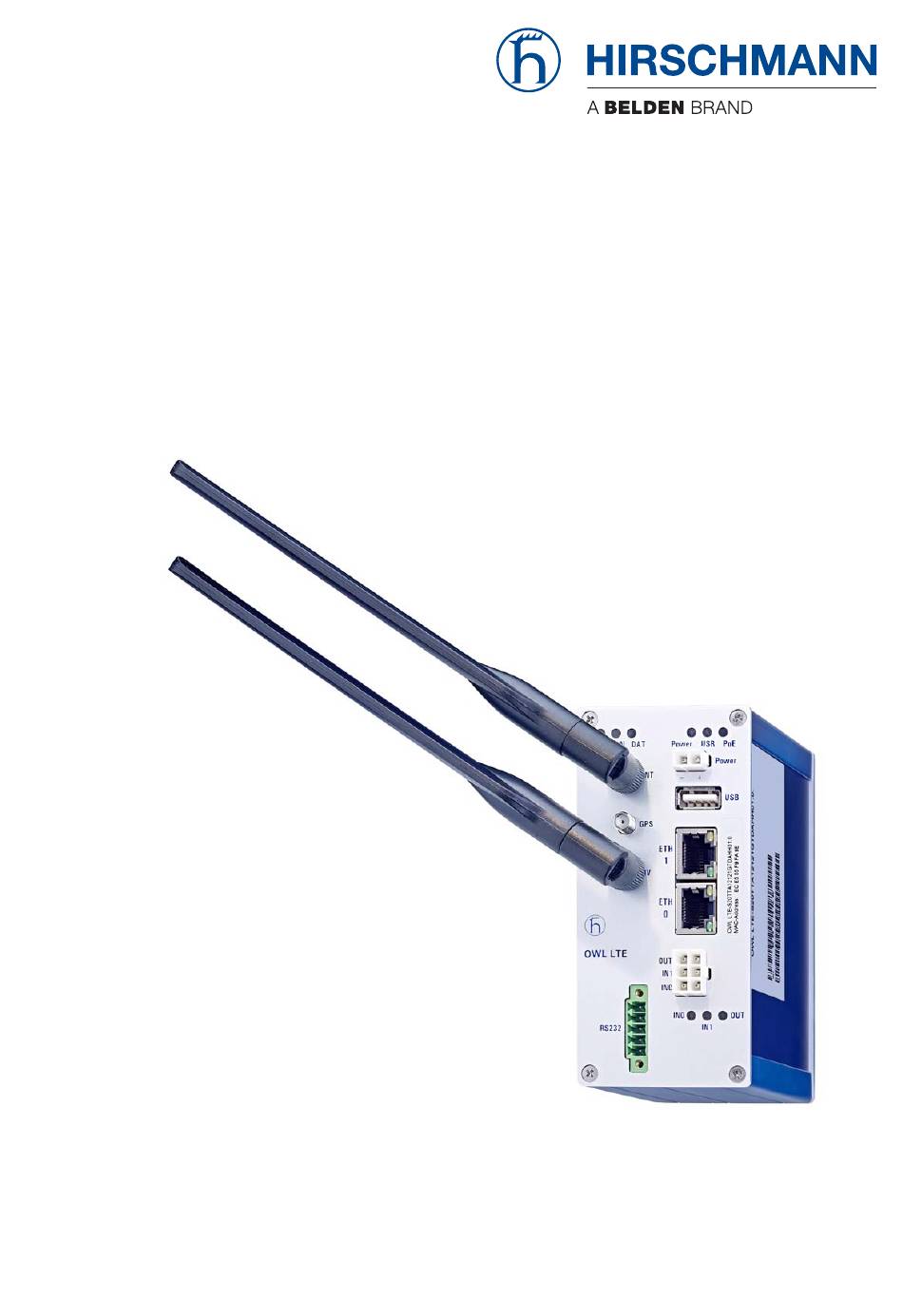

  • Page 1 User Manual Installation OWL LTE (Industrial Cellular Router) UM Installation OWL_LTE Technical Support Release 1.0 09/2015 https://hirschmann-support.belden.eu.com...
  • Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (http://www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.

  • Page 3: Table Of Contents

    Contents About this Guide Legend GPL License Safety Instructions Router Description Contents of Package Router Design Router Versions Delivery Identification Basic Dimensions of Router Box Mechanical Dimensions and Mounting Recommendations Removing from the DIN rail Description of the rear panel Description of the Front Panel 3.7.1 Status Indication 3.7.2 Power Connector...
  • Page 4 Contents Basic parameters Type tests and environmental conditions Technical Parameters of module Technical Parameters of the processor Technical parameters of the GPS Technical parameters of the I/O port 5.6.1 Characteristics of inputs 5.6.2 Binary output parameters 5.6.3 PoE PD Technical Parameters – PSE Requirements Other technical parameters Recommended literature Available Literature...

  • Page 5: About This Guide

    About this Guide About this Guide This document provides technical specifications for the Industrial Cellular Router and illustrates the hardware installation for a Hirschmann Industrial Cellular Router. It also helps the developers to validate their application design using the Industrial Cellular Router.

  • Page 6: Legend

    About this Guide Legend Legend The designations used in this manual have the following meanings:  List  Work step  Subheading Link Cross-reference with link Note: A note emphasizes an important fact or draws your attention to a dependency. ASCII representation in the graphical user interface Courier UM Installation OWL_LTE...

  • Page 7: Gpl License

    About this Guide GPL License GPL License Source codes under the GPL license are available free of charge. Send an email request to: hac-support@belden.com UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 8: Safety Instructions

     Never start an operation with damaged components.  The device does not contain any service components. If the device is not functioning correctly, or if it is damaged, turn off the power supply and return the device to Hirschmann for inspection. WARNING UNCONTROLLED MACHINE ACTIONS To avoid uncontrolled machine actions caused by data loss, configure all the data transmission devices individually.
  • Page 9 Qualified personnel receive training on a regular basis. Intended usage   Use the product only for the application cases described in the Hirschmann product information, including this manual.  Operate the product according to the technical parameters. See “First Use” on page 39.
  • Page 10 About this Guide Safety Instructions  The wire diameter of the ground conductor is at least 0.5 mm² (North America: AWG20).  The power supply cables used are permitted for the temperature range required by the application case. The power cords are suitable for ambient air temperatures of at least 167 °F (75 °C).
  • Page 11 About this Guide Safety Instructions Please, observe the following instructions:  To prevent injury and damage to the device and to ensure that you comply with the relevant provisions, use original accessories only. Unauthorized modifications or unapproved utilization of accessories can result in damage to the router and in a breach of applicable regulations.
  • Page 12 About this Guide Safety Instructions UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 13: Router Description

    Router Description 1 Router Description Hirschmann has designed the OWL router for wireless communication in mobile networks that make use of the following technologies:   HSPA+  UMTS  EDGE  GPRS Due to the high speed of data transfer up to 100 Mbit/s (download) and up to...
  • Page 14 Router Description  control by SMS  primary/backup connection Diagnostic functions, which provide for continuous communication, include an automatic inspection of a PPP connection, offering an automatic restart feature in case of an unexpected termination of the connection. Another diagnostic function is the hardware watchdog, which monitors the status of the router.

  • Page 15: Contents Of Package

    Contents of Package 2 Contents of Package The basic router set available for delivery includes the following items:  router  clip for the DIN rail  loose power connector  6 pin I/O connector  5-pin terminal block for RS232 ...
  • Page 16 Contents of Package UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 17: Router Design

    Router Design 3 Router Design UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 18: Router Versions

    Router Design 3.1 Router Versions 3.1 Router Versions The OWL LTE is supplied with the following items:  2 Fast Ethernet 10/100BaseTX ports, RJ45  2 SIM Cards readers, for 3 V and 1.8 V SIM cards  2 SMA antenna connectors, Main + Rx Div ...

  • Page 19: Delivery Identification

    Router Design 3.2 Delivery Identification 3.2 Delivery Identification Product Name Product Code Product Group OWL LTE OWL LTE-S20TTA12121GTDAHH01.0 Industrial Cellular Router Table 1: Delivery identification Figure 3: Example of Router Label UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 20: Basic Dimensions Of Router Box

    Router Design 3.3 Basic Dimensions of Router Box 3.3 Basic Dimensions of Router Figure 4: Basic Dimensions of Router Case UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 21: Mechanical Dimensions And Mounting Recommendations

    Router Design 3.4 Mechanical Dimensions and Mounting Recommendations 3.4 Mechanical Dimensions and Mounting Recommendations Mounting recommendations:  place router on a work surface  DIN rail with the CKD2 holder included Figure 5: Space around antennas We recommend you bind every cable in a bunch according to the following figure.
  • Page 22 Router Design 3.4 Mechanical Dimensions and Mounting Recommendations Figure 6: Cable routing Sufficient space must be left before individual connectors for handling of the cables: Figure 7: Space in front of connectors For the correct function of the router, use earth-bonding distribution frame for grounding of power supply of router, data cables and antenna.

  • Page 23: Removing From The Din Rail

    Router Design 3.5 Removing from the DIN rail 3.5 Removing from the DIN rail Default position of holder, used for mounting the router on a DIN rail, is shown in the following figure: Figure 8: Default position of DIN holder To remove the router from the DIN rail, it is necessary to lightly push the router downward so that the bottom part of the holder clears the rail.

  • Page 24: Description Of The Rear Panel

    Router Design 3.6 Description of the rear panel 3.6 Description of the rear panel The rear panel contains 2 SIM card holders (SIM1 and SIM2), a holder for the SD card (SD), and the Reset (RST) button. You use the reset button to restore the default configuration and reboot the router.

  • Page 25: Description Of The Front Panel

    Router Design 3.7 Description of the Front Panel 3.7 Description of the Front Panel The front panel of router contains the following connectors: Caption Connector Description Power 2-pin Connector for the power supply adapter ETH0 RJ45 Connector for connection into the local computer network ETH1 RJ45 Connector for connection into the local computer network...

  • Page 26: Status Indication

    Router Design 3.7 Description of the Front Panel 3.7.1 Status Indication There are 3 LED indicators on the front panel and two LED indicators on every port, that provide information about the port status. Caption Color State Description Power Green Blinking Router is ready Starting of the router...

  • Page 27: Power Connector

    Power supply for router must be between +10 V to +60 V DC supply. Protection against reversed polarity without signaling is built into the router. You can place the OWL LTE into the low power mode using a special command. When in the low power mode, you can wake the router up for example, with activity on binary input or using an internal timer.

  • Page 28: Grounding The Device (Functional Earth)

    Router Design 3.7 Description of the Front Panel Circuit example: Figure 12: Power connector pin-outs 3.7.3 Grounding the device (functional earth) Ground the device by connecting the minus pole (GND) of the power supply to earth. When you mount the device on a grounded DIN rail, then the DIN rail provides the ground.The shield of a shielded twisted pair cable is connected to the housing and the minus pole of the power supply socket.
  • Page 29 Router Design 3.7 Description of the Front Panel Note: Do not operate the router without the main antenna connected. For connecting the antenna, use an SMA connector. Screw the antennas to the SMA connector on the front panel of the router (see figure below). Note: Be very careful when tightening the antenna.

  • Page 30: Sim Card Reader

    Router Design 3.7 Description of the Front Panel 3.7.5 SIM Card Reader There are 2 SIM card readers for 3 V and 1.8 V SIM cards located on the rear panel of the router. In order for the router to function properly, insert an activated SIM card with the PIN code unblocked in to the SIM card holder.

  • Page 31: Microsd Card Reader

    Router Design 3.7 Description of the Front Panel 3.7.6 MicroSD card reader The microSD card reader is located on the rear panel of the router, the third slot from the top. This card reader allows the router to operate with microSD memory cards.

  • Page 32: Reset

    Router Design 3.7 Description of the Front Panel 3.7.7 Reset When the "Power" LED on the front panel is illuminated, it is possible to restore the default configuration of the router by pressing the "Reset" button. After pressing the "Reset" button, the default configuration is restored and the router reboots, the "Power"...
  • Page 33 Router Design 3.7 Description of the Front Panel Signal mark Description Data flow direction TXD+ Transmit Data - positive pole Input/Output TXD- Transmit Data - negative pole Input/Output RXD+ Receive Data - positive pole Input/Output POE power + POE power + RXD- Receive Data - negative pole Input/Output...

  • Page 34: Usb Port

    Router Design 3.7 Description of the Front Panel PoE PD  The router supports the PoE+ standard for PoE PD. You can supply power to the router from the Ethernet ports "ETH0" or "ETH1". See the PoE parameters located in “PoE PD Technical Parameters –...

  • Page 35: I/O Port

    Router Design 3.7 Description of the Front Panel 3.7.10 I/O Port Panel socket 6-pin. Pin number Signal mark Description Binary input 0 Binary input 0 Binary input 1 Binary input 1 Binary output Binary output Table 9: I/O connector pin-outs Figure 19: I/O connector The I/O user Interface is designed for processing binary input and control binary output.
  • Page 36 Router Design 3.7 Description of the Front Panel logical 0 / 1 Voltage Current log. 1 type 12 V log. 1 max 60 V Table 10: Characteristics of inputs To retrieve the binary input status from the Shell use either io get bin0 or io get bin1.

  • Page 37: Rs232 Interface

    Router Design 3.7 Description of the Front Panel Figure 21: Binary output connection 3.7.11 RS232 interface The RS232 interface is physically connected on a five-pin terminal block. The insulation strength is up to 2.5 kV. The RS232 converter is protected against an overload on the bus.
  • Page 38 Router Design 3.7 Description of the Front Panel Figure 22: RS232 connector UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 39: First Use

    First Use 4 First Use UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 40: Connecting Components Before The First Use

    First Use 4.1 Connecting Components before the First Use 4.1 Connecting Components before the First Use Before putting the router into operation, it is necessary to connect the components which are required for your applications. Do not forget to insert at least 1 SIM card.
  • Page 41 First Use 4.1 Connecting Components before the First Use 12 V - 48 V Figure 23: Router Connection UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 42: Start

    First Use 4.2 Start 4.2 Start The router operates when the power supply is connected to the router. By default, the router automatically starts to log in to the default APN. You can change the parameters of the router behavior using the web interface. You can find a detailed description of the parameters in the UM-Configuration manual.

  • Page 43: Configuration

    First Use 4.3 Configuration 4.3 Configuration Note: Before you apply power to the router, insert at least 1 SIM card in the router, and install the main antenna. Activate the SIM card in the "Administration> Unlock SIM card" dialog, after inserting it into the SIM card reader.
  • Page 44 First Use 4.3 Configuration UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 45: Technical Parameters

    Technical Parameters 5 Technical Parameters UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 46: Basic Parameters

    Technical Parameters 5.1 Basic parameters 5.1 Basic parameters OWL LTE Complies with standards EN 301 511, EN 300 440-2 EN 301 908-1, -2, -13 EN 301 489-1, -7, -24 EN 60950-1, EN 62311 EN 61000-6-2 EN 61131-2 EN 55022 Temperature Operation -40°C to +75°C...

  • Page 47: Type Tests And Environmental Conditions

    Technical Parameters 5.2 Type tests and environmental conditions 5.2 Type tests and environmental conditions Phenomena Test Description Test levels EN 61000-4-2 Enclosure contact ± 6 kV Enclosure air ± 8 kV RF field AM modulated IEC 61000-4-3 Enclosure 10 V/m (80 –...

  • Page 48: Technical Parameters Of Module

    Technical Parameters 5.3 Technical Parameters of module 5.3 Technical Parameters of module LTE module LTE parameters Bit rate 100 Mbps (DL) / 50 Mbps (UL) 3GPP rel. 8 standard Supported bandwidths: 5 MHz, 10 MHz, 20 MHz Supported frequencies: 800 / 900 / 1800 / 2100 / 2600 MHz HSPA+ parameters Bit rate 21,1 Mbps (DL) / 5,76 Mbps (UL) 3GPP rel.

  • Page 49: Technical Parameters Of The Processor

    Technical Parameters 5.4 Technical Parameters of the processor 5.4 Technical Parameters of the processor 32b ARM microprocessor Memory 512 Mb DDR SDRAM 128 Mb FLASH 1 Mb MRAM Interface Serial interface RS232 Ethernet interface 10/100 Mbit/s USB 2.0 interface Table 15: Technical Parameters of the processor UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 50: Technical Parameters Of The Gps

    Technical Parameters 5.5 Technical parameters of the GPS 5.5 Technical parameters of the GPS specifications Antenna 50 Ohms – active Protocols NMEA 0183 v3.0 Frequency 1575.42MHz Sensitivity Tracking: -161dBm Acquisition (Assisted): -158dBm Acquisition (Standalone): -145dBm Acquisition time Hot start: 1 s Warm start: 29 s Cold start: 32 s Accuracy...

  • Page 51: Technical Parameters Of The I/O Port

    Technical Parameters 5.6 Technical parameters of the I/O port 5.6 Technical parameters of the I/O port 5.6.1 Characteristics of inputs logical 0 / 1 Voltage Current log. 0 max 0.4mA log. 1 min 0.7mA log. 1 type 12 V log. 1 max 60 V Table 17: Characteristics of the inputs 5.6.2...

  • Page 52: Poe Pd Technical Parameters - Pse Requirements

    Technical Parameters 5.6 Technical parameters of the I/O port 5.6.3 PoE PD Technical Parameters – PSE Requirements The following table contains the recommended requirements for the PoE Power Source Equipment (PSE), with which you supply power to the router using PoE. You can also use a passive PoE injector that meets these parameters.

  • Page 53: Other Technical Parameters

    Technical Parameters 5.7 Other technical parameters 5.7 Other technical parameters Other technical parameters CPU power 2 DMIPS per MHz Flash memory 256 MB 512 MB M-RAM 128 kB Table 19: Other technical parameters UM Installation OWL_LTE Release 1.0 09/2015...
  • Page 54 Technical Parameters 5.7 Other technical parameters UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 55: Recommended Literature

    Recommended literature 6 Recommended literature UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 56: Available Literature

    Recommended literature 6.1 Available Literature 6.1 Available Literature  Quick Installation Guide  UM-Configuration Manual UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 57: Possible Problems

    Possible problems 7 Possible problems UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 58: Solutions

    Possible problems 7.1 Solutions 7.1 Solutions Some network cards are able to be set in a situation, when it is not possible to connect directly to the router. Follow the steps below to solve this problem:  manually select the 10 Mb/s communication rate for the network card ...

  • Page 59: Faq

    8 FAQ  When I have NAT enabled, I can’t access the equipment from the internet, which is connected to the router. – Configure the gateway in the device with the IP address of the router.  The router resets itself and the Ethernet connection fails. –...
  • Page 60 – Verify Firewall accessing remotely to the GUI interface of the router. – The operator does not give out the address of DNS servers and without the address of the DNS servers, it is impossible to connect to the dyndns.org server. The router displays the following messages in the log system: –...

  • Page 61: Customers Support

    Customers Support 9 Customers Support You can find current information about this product on our website: http://www.hirschmann.com/en/QR/OWL-Industrial-Cellular-Routers Upkeep-advices: – The SIM card must be handled carefully like a credit card. Do not bend or scratch the SIM card and do not expose the SIM card to static electricity.

  • Page 62: Ce-Marking

    Customers Support 9.1 CE-marking 9.1 CE-marking Hirschmann hereby declares that the labeled devices comply with the regulations contained in the following European directives: 2011/65/EU (RoHS)  Directive of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

  • Page 63: E Marking

    Customers Support 9.2 E marking 9.2 E marking The labeled devices comply with the regulations contained in the following European directive:Rule No. 10 of the Economic Commission for Europe (ECE): Devices with an approval are labeled with the E type-approval mark. UM Installation OWL_LTE Release 1.0 09/2015...
  • Page 64 Customers Support 9.2 E marking UM Installation OWL_LTE Release 1.0 09/2015...

  • Page 65: A Further Support

    Further Support A Further Support Technical Questions  For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You will find the addresses of our partners on the Internet at http://www.hirschmann.com Contact our support at https://hirschmann-support.belden.eu.com...
  • Page 66 Further Support With the Hirschmann Competence Center, you have decided against making any compromises. Our client-customized package leaves you free to choose the service components you want to use. Internet: http://www.hicomcenter.com UM Installation OWL_LTE Release 1.0 09/2015...
